Setting Grades
Grade can be set in both axes, X and Y, as shown below.
Grades can be set in the range indicated below.
X: –10% to +10%
Y: –5% to +25%

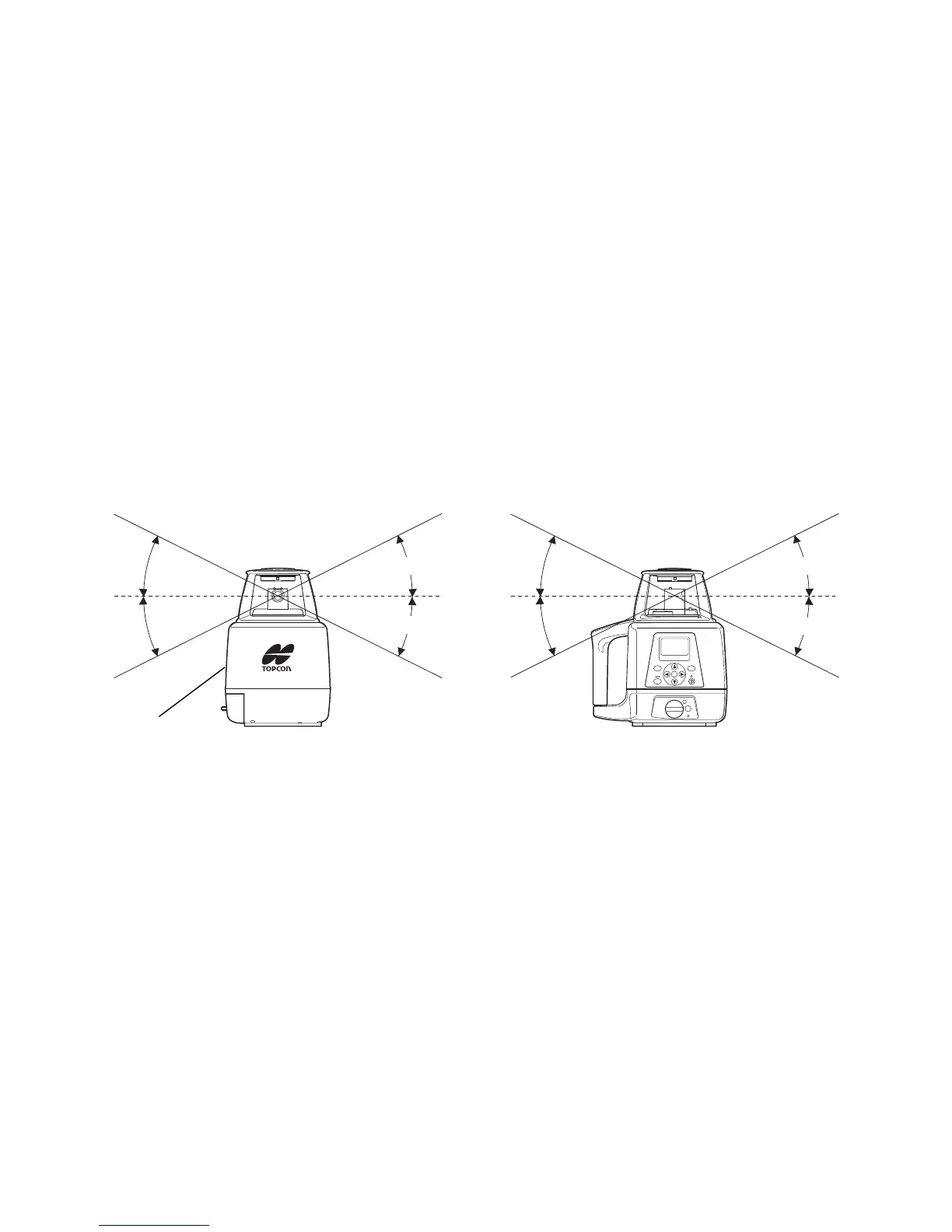

Grade axes and axis symbols are as shown in the diagram below.
ESC
MENU
ENT
X/ Y
+10%
X axis
Y axis
–10%
+25%
–5%
Panel side
Plus
Minus
Plus
Minus
