7. APPLIED OPERATION AND SETTING OF VARIOUS FUNCTIONS
36
Matching Mode (Manual Slope)
This mode is used to align the grade of the laser calibration to the worked grade.

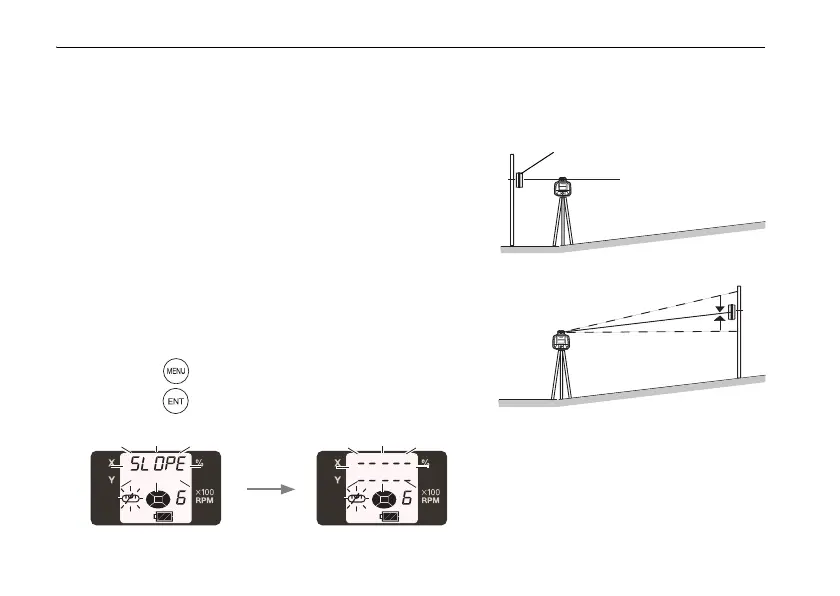

1 Horizontally rotate the laser beam of the RL-SV1S set
up at the standard height. (X+0.000%)
2 Adjust the height of the LS-80L installed on the pole
and align the standard position of the LS-80L with the
laser beam and fix.
3 Set up the LS-80L in step 2 on the grade surface.
4 Using the sight, roughly align and set the position of
the RL-SV1S on top of the tripod to the direction of the
LS-80L.
5 Press the key.
6 Press the key on the Matching Mode (SLOPE)
selection screen.
To Next Page
