7. APPLIED OPERATION AND SETTING OF VARIOUS FUNCTIONS
37
7 Confirm that auto leveling is
complete and that the laser
beam is emitting.
Press the arrow key ( :To
align with grade on the X- side)
once in the desired direction to
align grades, and the laser beam
will continue to lean toward the
direction of the key.
The arrow key cannot be used
until auto leveling is complete
and the laser beam starts
emitting.
8 Pressing either of key
for the graded axis pressed in
step
7 once again will stop laser
beam grading. If neither of arrow
keys is pressed once more, the
laser beam will return to the
horizontal position.

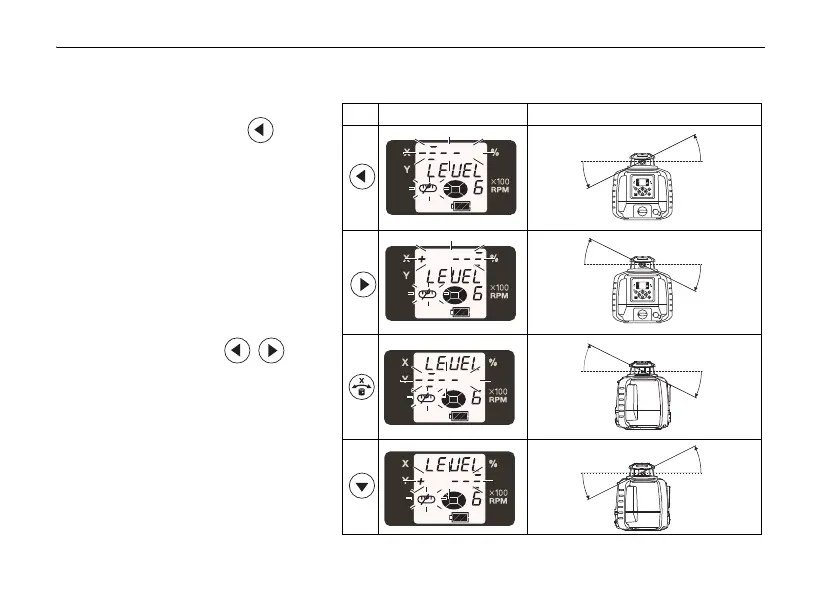

Grading direction of the laser beam during arrow key operation
Key Display* Grading direction of the laser beam
X-
X-
X+
X+
Y-
Y-
Y+
Y+
