Vertical Rotation

1 Place the instrument on its back as shown in the illus-

tration.

2 Turn the leveling screw on the instrument until the bub-

ble is centered in the circular level vial.

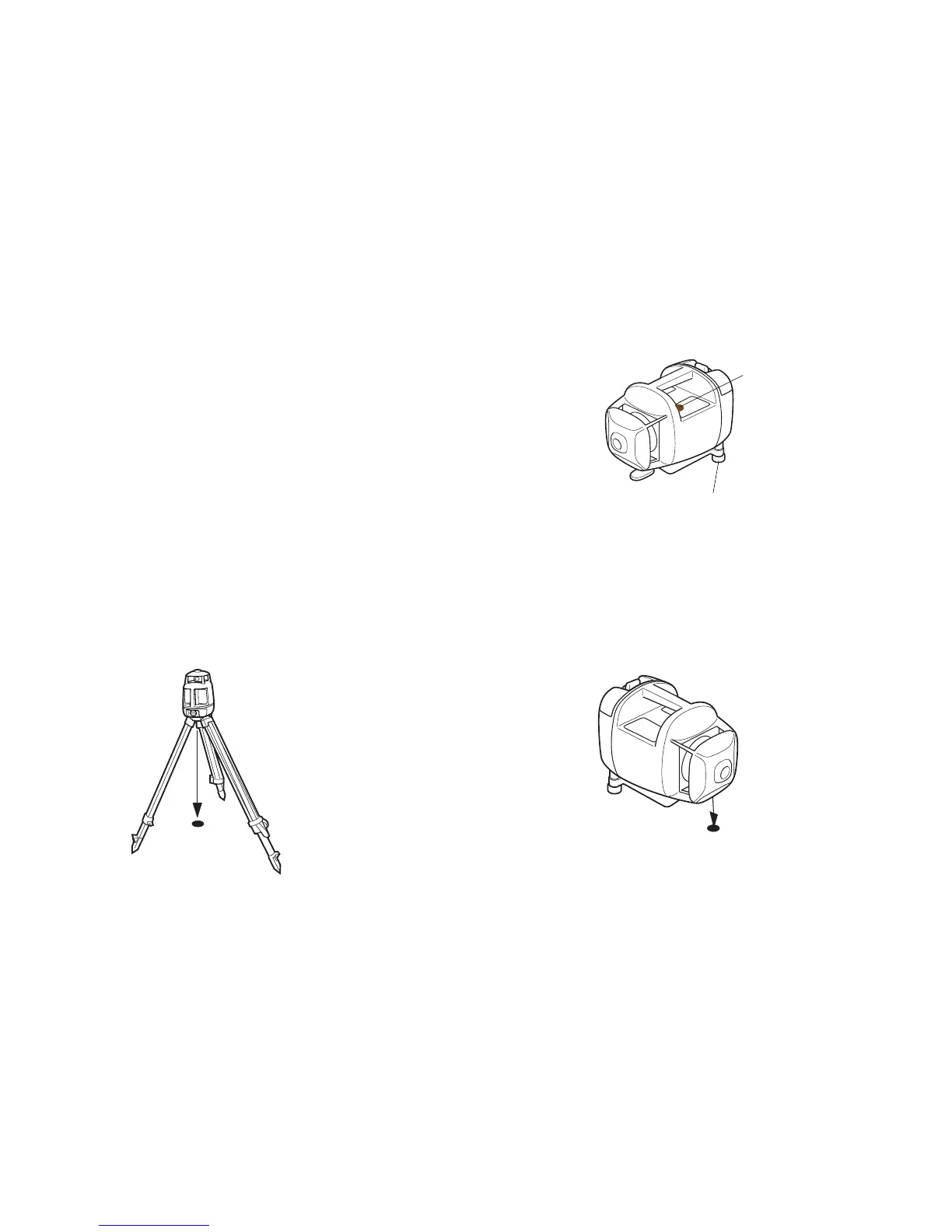

Using Plumb beam (RL-VH3B has vertical plumb beam only)

You can set the instrument using with the plum laser for centering.

Press the plumb beam key to emit the plumb beam.

Vertical

circular vial

Leveling screw

Plumb beam for vertical operation

Plumb beam for vertical

operation
