Operation
Scanning Mode
In scan mode, the laser rotates slowly, "searching" for the Magnetic Scanning Target. When
the target is properly placed in the beam path, the laser beam will scan rapidly back and forth
on the target and "track" the target as it is moved in its path.
1 Scanning mode is the default operating mode for the RL-VH3G/A/B. Each time the instru-
ment is turned on, it is in scanning mode. To change when operating, press the Scan
Mode Pad.
2 To initiate target scanning, place the Magnetic Scanning Target in the beam path with the
reflective strips facing toward the laser.

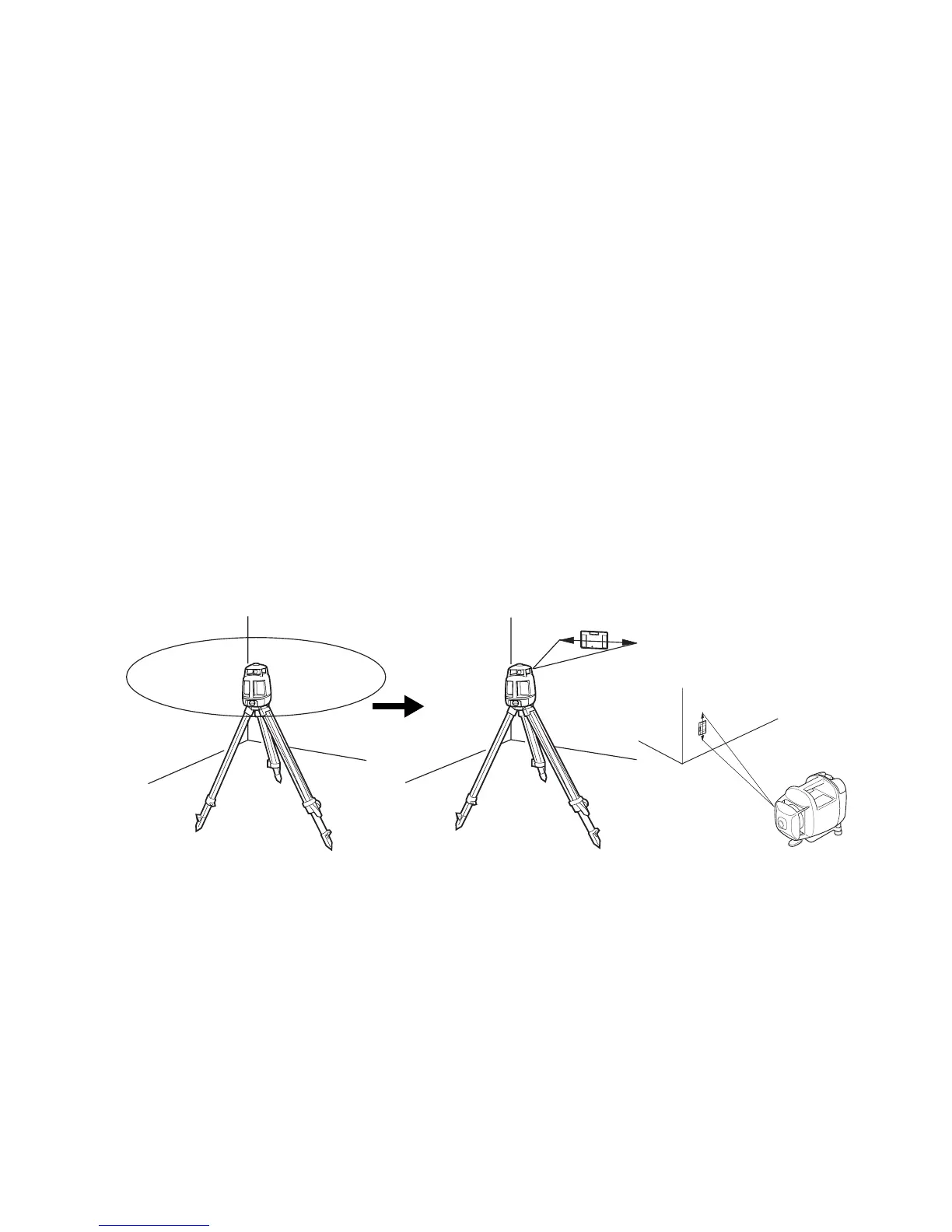

Vertical rotation
Horizontal rotation
Set scanning mode
Face the target toward the instrument to start scanning.
