60
Standard / Optional Accessories
LO
C
K
U
N
LO
C
K

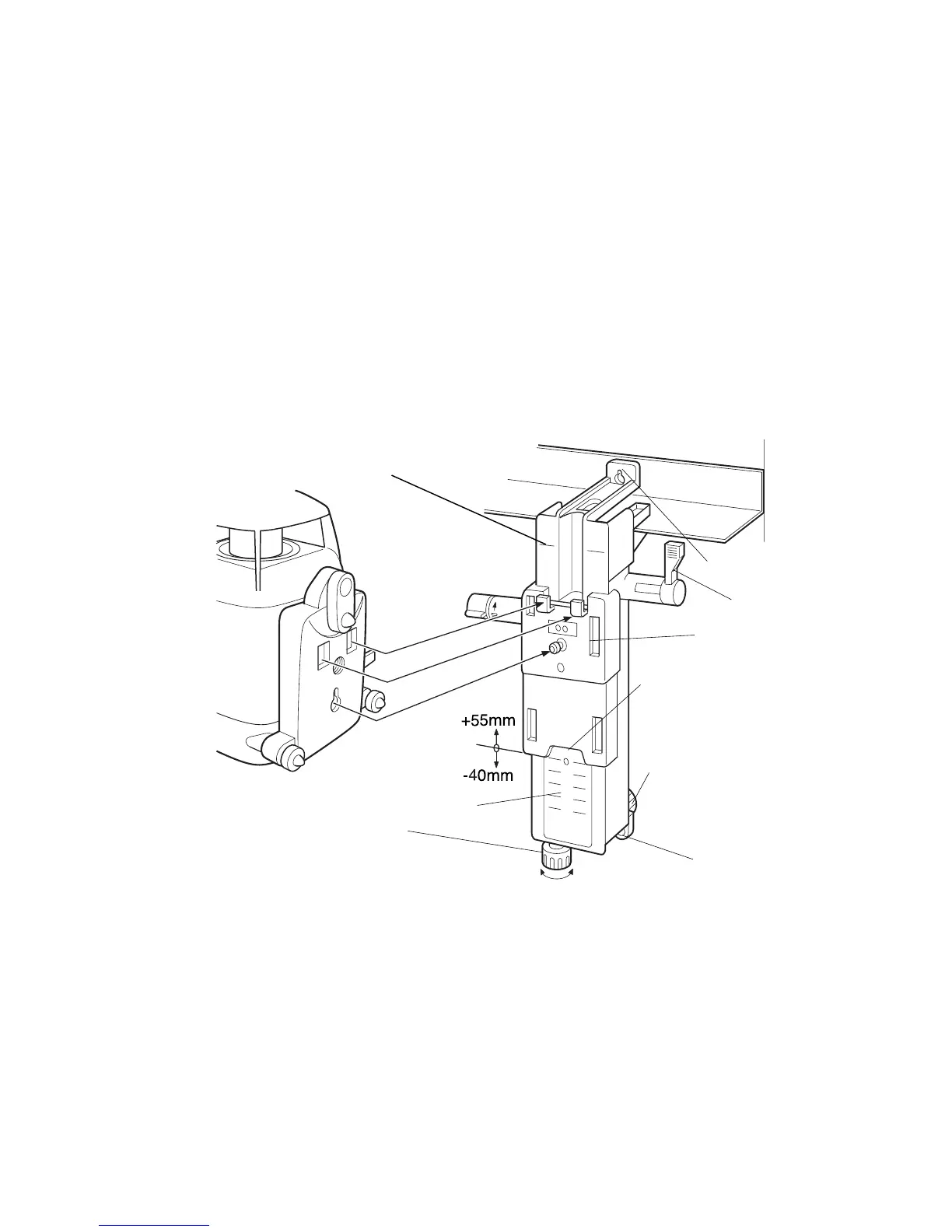

Wall mount-2C
This is used to attach the instrument to wall molding or metal studs. Grip wall angle/mold-
ing or screw to studs and tighten the attachment screw securely.
Wall mount hole
Mount position control line
To be matched with lower mount side
Clamp handle
Traveling stage
Scale
To be met with the laser beam
of mount position control line
when the instrument is
adjusted to 0 wall mount unit.
Adjust screw
Adjusting the inclination of
wall mount unit.
Down
Up
Wall mount hole
Traveling
quantity
Use the right side scale for RL-VH3A/B/G.
Fine movement knob
To be used when the coarse move-
ment knob positions at (0) mark
