The TOPENS DKC500(S/Y) is a sliding gate opener designed for residential and light commercial use, providing automated control over sliding gates. This device is engineered to enhance convenience and security by allowing users to open and close their gates with ease. The opener is built with a focus on durability and reliability, ensuring long-term performance in various environmental conditions.

Function Description

The primary function of the TOPENS DKC500(S/Y) is to automate the opening and closing of sliding gates. It operates by moving a chain that is attached to the gate, pulling it along a track. The system includes a motor, a control board, and various safety and control accessories that work together to provide a seamless automated gate experience.

The opener supports both AC electricity and battery power options, with configurations for solar panel charging, making it versatile for different power availability scenarios. It features a soft start and soft stop mechanism, which reduces wear and tear on the gate and the opener itself, contributing to a longer lifespan and quieter operation.

A key safety feature is its ability to stop in case of obstruction during gate opening and reverse in case of obstruction during gate closing. This is crucial for preventing damage to persons, animals, or properties that might be in the gate's path. The reversing sensitivity can be adjusted to suit specific needs and environmental factors.

The system incorporates reliable rolling code technology for remote control operation, enhancing security by preventing unauthorized access. In the event of a power failure, an emergency release key allows for manual operation of the gate, ensuring access even when automated functions are unavailable.

The DKC500(S/Y) also includes an adjustable auto-close function, allowing users to set the gate to automatically close after a specified period (30, 60, or 90 seconds). This feature adds convenience and security, ensuring the gate is not left open unintentionally.

Usage Features

The TOPENS DKC500(S/Y) is designed for user-friendly operation and offers several features to enhance its usability:

Midway Mode: This feature allows the gate to open partially, which is useful for pedestrian access or when only a small opening is required. The running time for the midway mode can be adjusted via DIP switches on the control board.
Remote Control Operation: The opener comes with remote controls that use rolling code technology for secure operation. Each remote typically has four buttons, allowing for control of up to four different TOPENS gate openers or a combination of sliding and swing gate openers. Button B is specifically designed to activate the midway mode for sliding gate openers.
Wireless Keypad Programming: Users can program a wireless keypad to operate the gate. This provides an alternative access method, often with a customizable password for added security. The keypad allows for easy entry without a remote control.
External Receiver Compatibility: For users who require more remote controls or wish to integrate with other brands of gate openers, an optional external receiver (ERM12) can be added. This expands the system's capacity to accommodate up to 250 remotes and offers compatibility with various gate and garage door openers.
Exit Wand (Optional): An exit wand can be installed to allow for automatic gate opening when a vehicle approaches from inside the property, providing convenient exit without needing a remote.
Photocell Beam System (Optional): For enhanced safety, a photocell beam system can be integrated. This system detects obstructions in the gate's path, preventing it from closing on people or objects. It is highly recommended, especially when the auto-close function is enabled or when the stall force is set to maximum.
Warning Light (Optional): A warning light can be connected to provide visual indication when the gate is in motion, further improving safety.
Adjustable Stall Force: The control board includes potentiometers to adjust the gate's opening and closing stall force. This allows users to fine-tune the force required to stop the gate, balancing safety with operational efficiency.
Gate Open/Close Direction Selection: The opener allows for quick selection of the gate's open/close direction, which is determined by the installation position of the gate opener. This is configured using DIP switches.
Emergency Release: In case of power outage or malfunction, the gate can be manually operated using an emergency release key, disengaging the clutch between the gear shaft and motor.

Maintenance Features

Regular maintenance is crucial for the long-term, safe, and efficient operation of the TOPENS DKC500(S/Y). The manual outlines several maintenance checks to be performed every six months:

Lubrication: Shafts and gears should be lubricated to ensure smooth operation and prevent excessive wear.
Cleanliness: The opener should be kept clean at all times to prevent debris from interfering with its mechanisms.
Anchor Bolts: Check and tighten the anchor bolts to ensure the opener remains securely mounted to its concrete pad.
Wiring Inspection: Inspect for any loose or corroded wires, which can affect electrical connections and system performance.
Earthing: Ensure that the opener is well earthed and correctly terminated for electrical safety.
Obstruction Detection Test: Always check the stop/reverse in case of obstruction function during any maintenance. If this safety feature is not operable, the opener should be removed from service until the cause of the malfunction is identified and corrected by qualified personnel. This is a critical safety check to prevent accidents.

By adhering to these maintenance guidelines, users can ensure the continued safe and reliable operation of their TOPENS DKC500(S/Y) sliding gate opener.

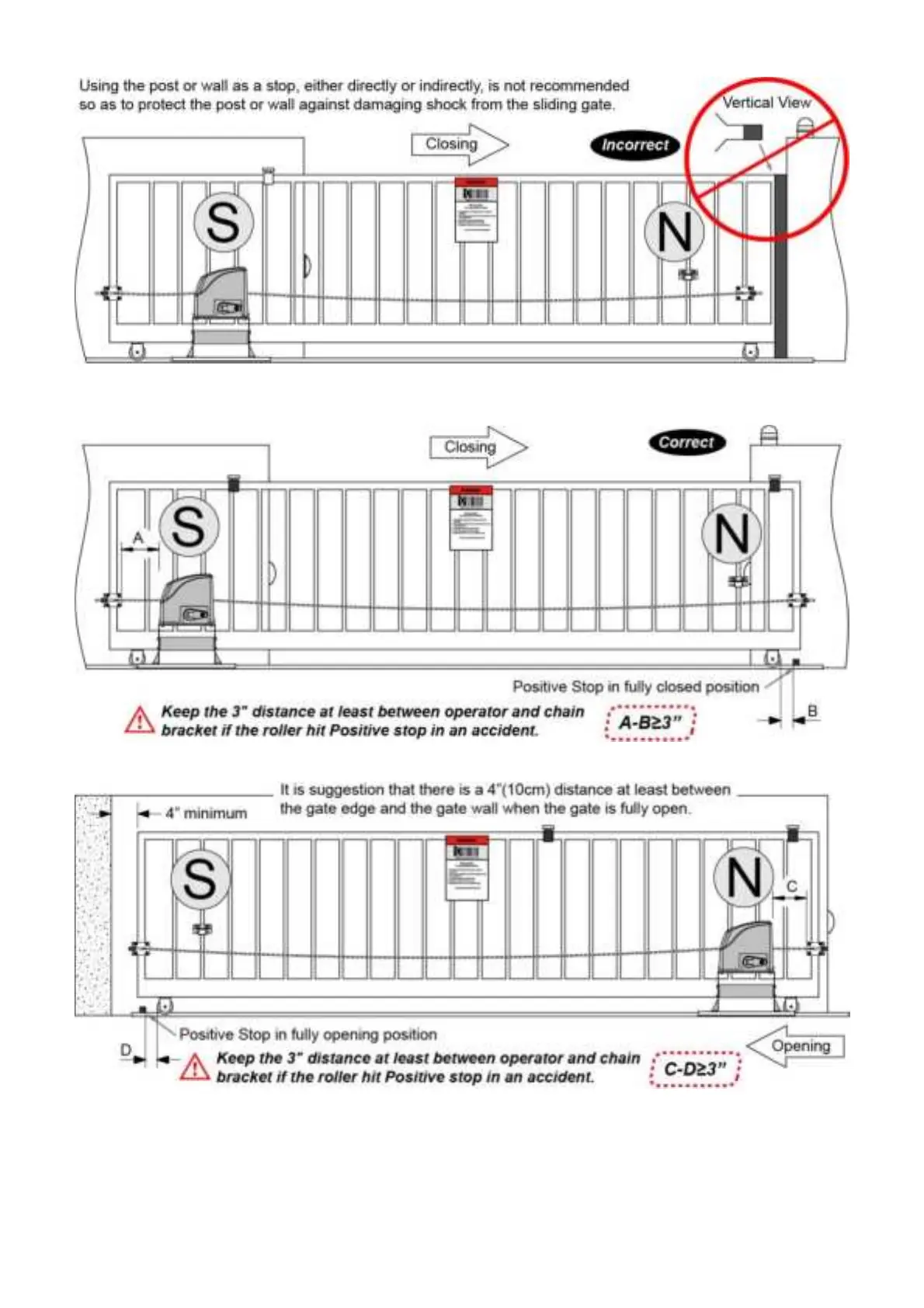

Topens DKC500S - Page 6
