Topens TEW3 - Wire Connection Guide; Wiring Diagrams for Swing Gate Openers

3

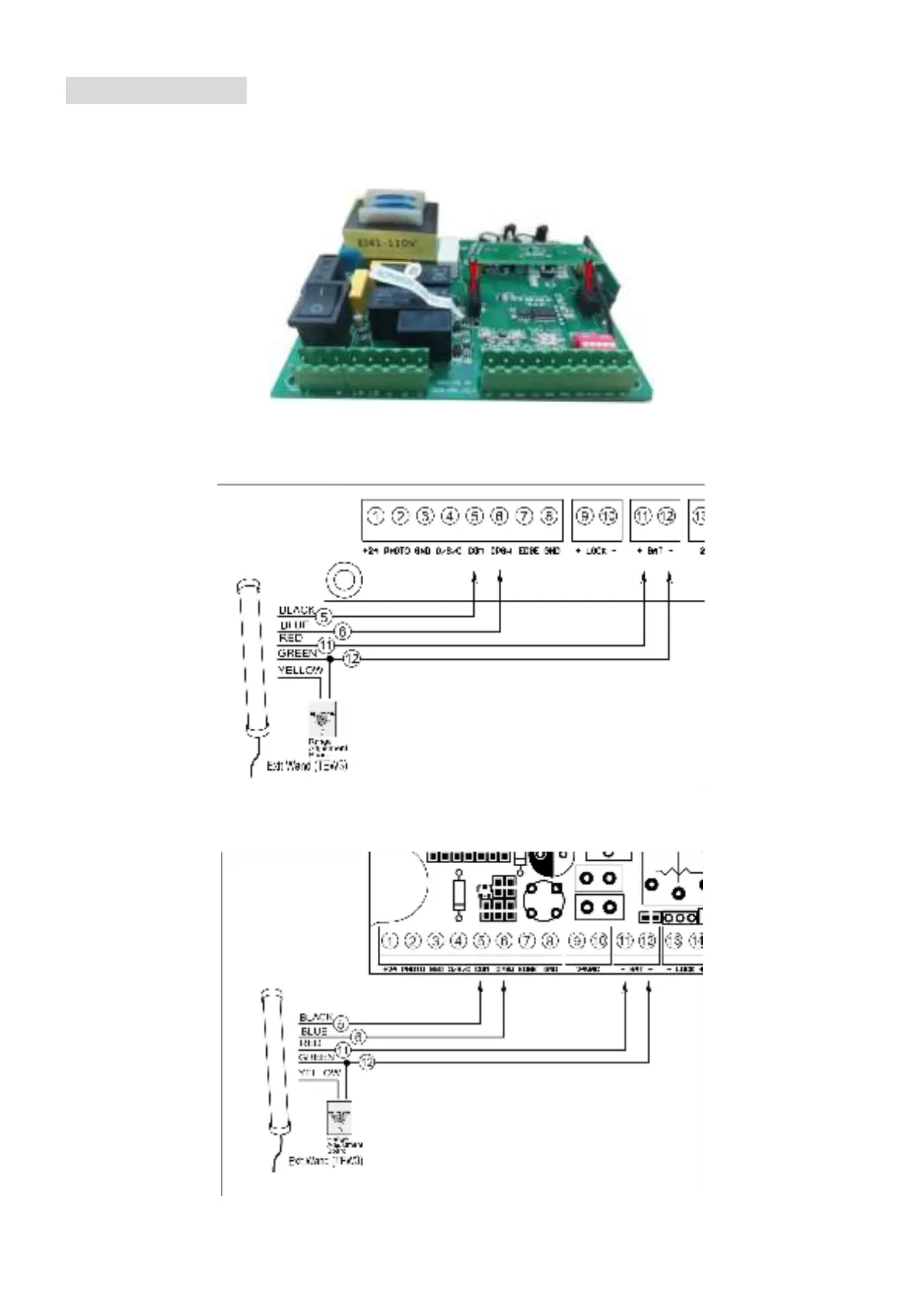

Wire connection
STEP 1: Insert the adapter board into the socket of the control board before wiring the WAND. Only the
TOPENS KD902&AT1202 swing gate opener and the RK990&RK1200&CK1200 need to use the adapter
board. You can read the user manual of the opener to check if the adapter board is needed or not.
STEP 2: Wiring the WAND to the control board and range adjustment board. Following are the
examples to a few models of TOPENS gate opener. More details please refer to the user manual of the
gate opener.
Wiring Diagram of the wand to the A series swing gate opener
Wiring Diagram of the wand to the AD/PW series swing gate opener
