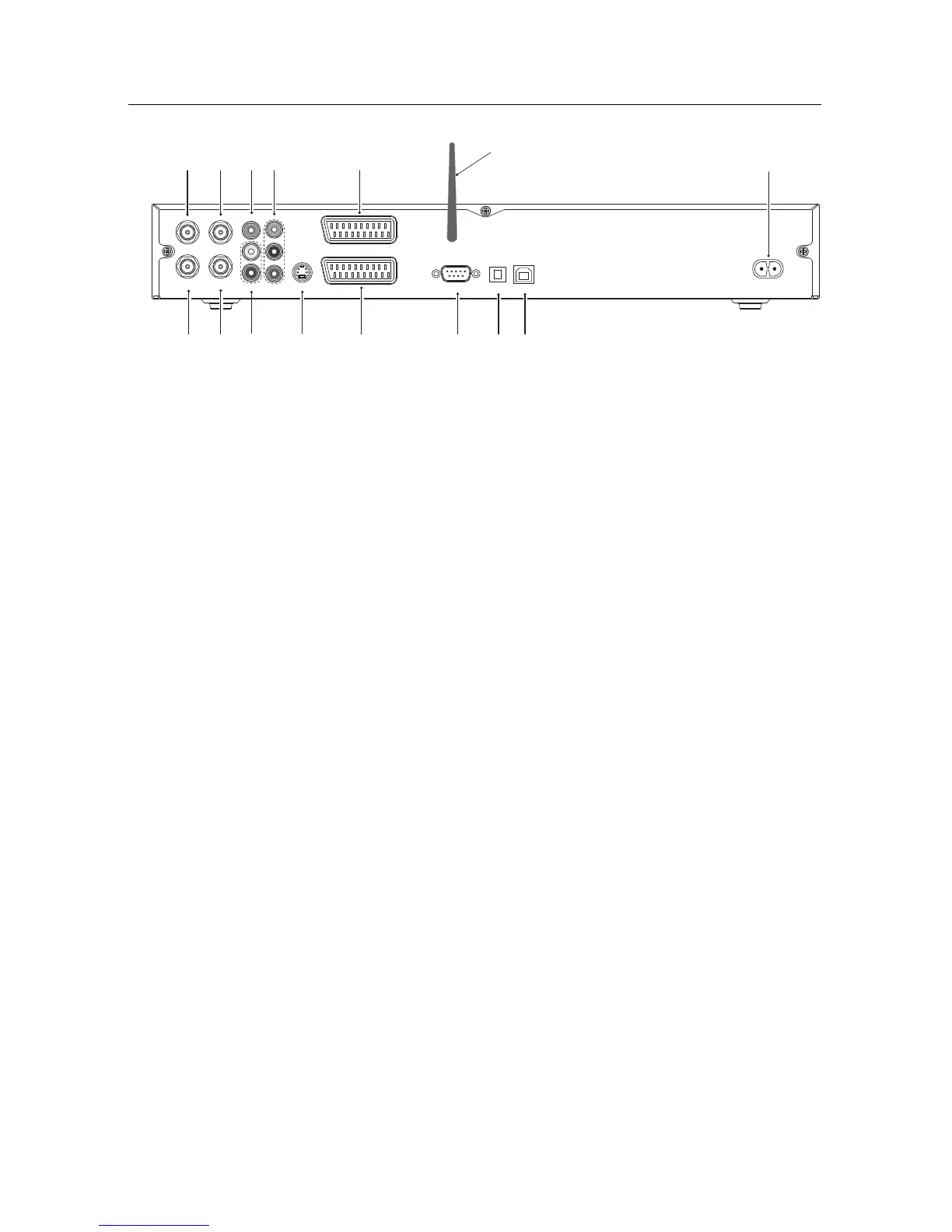

Check up what connections your television set has in compar-
ison with the digital receiver.
1
LNB 1 IN Broadcasting signal input socket for the first
tuner.
2
IF 1 OUT Broadcasting signal output socket from the
first tuner
3
LNB 2 IN Broadcasting signal input socket for the sec-
ond tuner.
4
IF 2 OUT Broadcasting signal output socket from the
second tuner.
5
VIDEO Composite video output socket for the tele-
vision set (Yellow)
6
AUDIO L/R Stereo audio output socket for the television
set or audio system. (Red/White)
7
Y/Pb/Pr Component video output socket for the tele-
vision set. (Blue/Green/Red)
8
S-VIDEO Super video output socket for the television
set.
9
TV Audio and video output socket for the tele-
vision set.
10
VCR Audio and video input / output socket for
the video cassette recorder or suchlike.
