PROGATE User manual V-2022-09-20 7 | EN
1.4 General view of the module

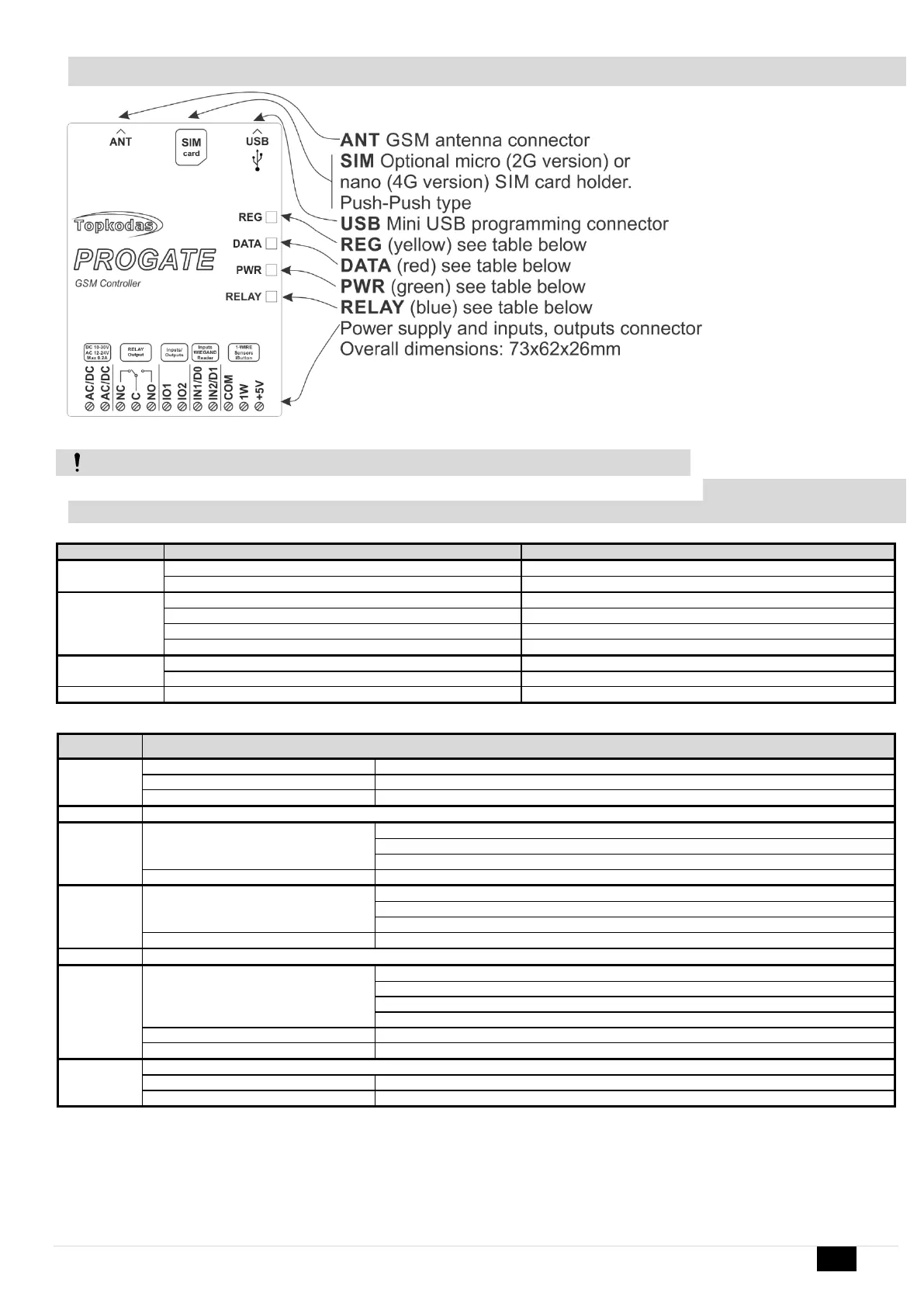

Figure 1 General view of the module PROGATE
1.5 Meaning of LEDs and
contacts
Table 3 Meaning of LEDs
Watchdog blinking, on 50ms, and turns off after 1000ms.
The module is functioning.
The module is out of order or no voltage
Modem has been registered to the network
Flashes, remains lit for 50ms, turns off for 300ms
Modem is being registered to the GSM network.
Blinking fast, remains lit for 50ms turns off for 50ms
PIN code of SIM card error. PIN code request should be removed
Modem failed to register to the network.
The memory of the module contains unsent reports
Data status is OK. All reports has been send.
Table 4 Terminal block. Contacts.
Optional functions and Description
Relay Output 1A 30 V DC, 0.5A 125 V AC
Input with pull up resistor 10K to the VD+
Analog voltage input 0-30V
Input/Zone with pull up resistor 10K to the VD+. Used for gate position or security sensors
Can be configured NC/NO/EOL/EOL+Tamper
Wiegand interface. Inputs D0 and D1 used for wiegand RFID reader, keypad
Negative supply terminal for keyboard(s), indicators and sensors.
Digital output (Max 3.3V)
Dallas 1-Wire bus. For iButton DS1990A and temperature sensors DS18B20
Aosong 1-Wire bus. Humidity Sensor AM2302, DHT22, AM2305, AM2306
Power supply for external temperature, humidity sensors
Do not locate SIM card with force, because you may damage SIM card holder
