Topkodas PROGATE User Manual

PROGATE User manual V-2022-09-20 9 | EN
2.3 Wiring PROGATE to the gate control unit

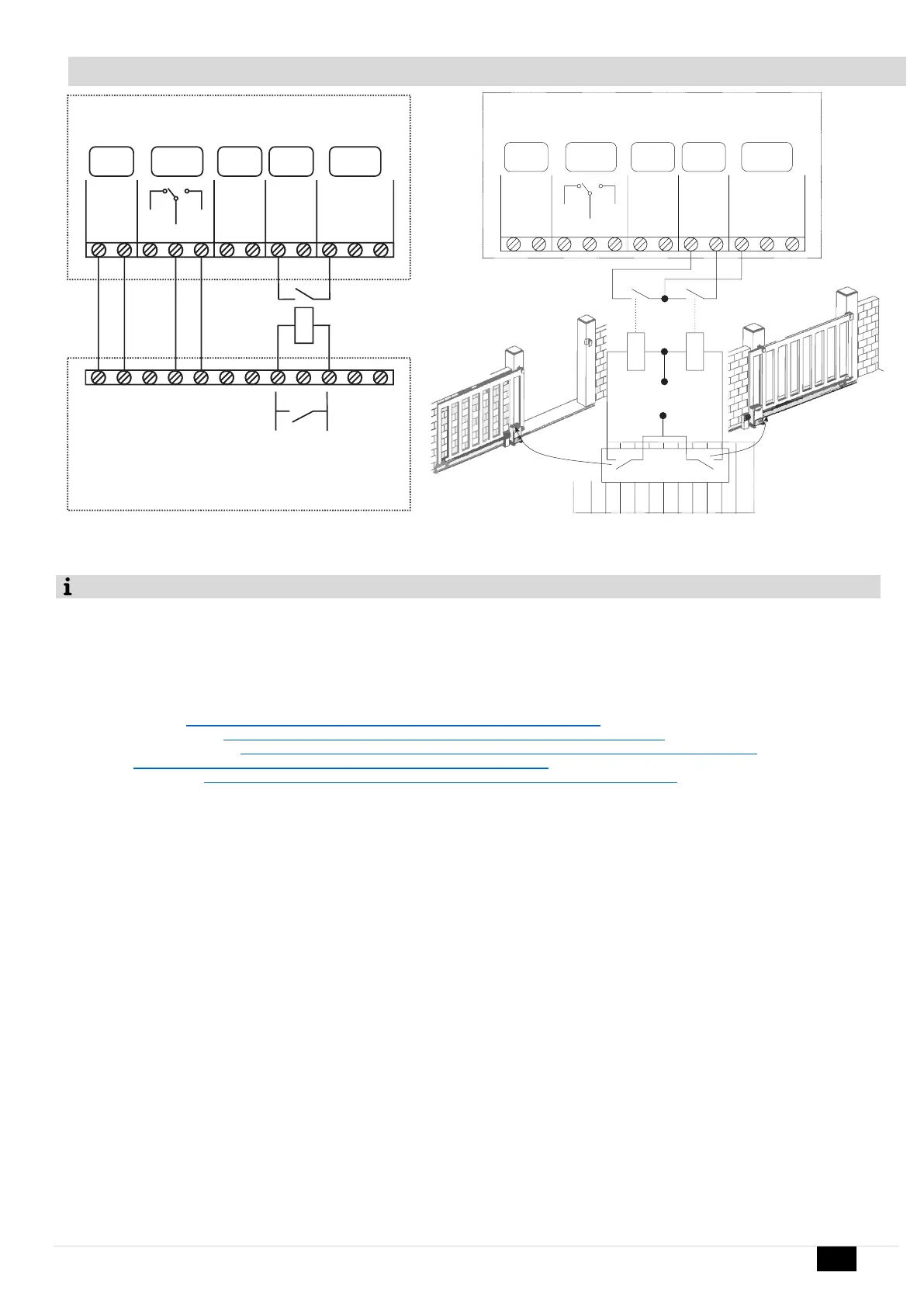

Diagram 1General connection
Diagram 2Connection with dual gate position sensor to detect fully open and fully closed
gate status
Automatic gates have a gate control input. The PROGATE relay can be connected to this input to open and close the gate with a pulse or steady (latch)
signal.
Automatic gates shall normally have a gate position sensor output which indicates when the gate is closed and when it is open. The gate status output
may be a voltage output or a relay output. In the diagram, relay K1 is connected to the voltage output of the automatic gate. Intermediate relay K1 is
triggered when the gate is open and the input PROGATE IN1 is triggered. The gate position sensor signal gives precise information about the status of the
gate (when the gate is closed and when it is open). The gate status can be displayed in SERANOVA
More information:
Quick start PROGATE: https://www.topkodas.lt/Downloads/media/Manuals/PROGATE_QS_EN.pdf
Quick start SERANOVA APP: https://www.topkodas.lt/Downloads/media/Manuals/PROGATE_app_QS_EN.pdf
Quick start Control via call, SMS: https://www.topkodas.lt/Downloads/media/Manuals/PROGATE_Control_sms_call_QS_EN.pdf
User manual: https://www.topkodas.lt/Downloads/media/Manuals/PROGATE_UM_EN.pdf
APPLICATION: Add User: https://www.topkodas.lt/Downloads/media/Manuals/PROGATE_Add_user_AN_EN.pdf
D1
COM
NC
IN2/D1
IN1/D0
+5V
AC/DC
AC/DC
C
DC 10-30V
AC 12-24V
Max 0.2A
IO2
NO
IO1
1-WIRE
Sensors
iButton
RELAY
Inputs
WIEGAND
Reader
Inputs/
Outputs
PROGATE
24V
IN
0V
COM
Gate control unit
Gate position
K1
D
1
C
O
M
N
C
IN
2/D
1
IN
1/D
0
+
5V
A
C
/D
C
A
C
/D
C
C
DC 10-30V
AC 12-24V
Max 0.2A
IO
2
N
O
IO
1
1-WIRE
Sensors
iButton
RELAY
Inputs
WIEGAND
Reader
Inputs/
Outputs
PROGATE
AC 24V
G
a
t
e
i
n
o
p
e
n
p
o
s
i
t
i
o
n
G
a
t
e
i
n
c
l
o
s
e
d
p
o
s
i
t
i
o
n
Gate position sensor
Please note that AC relays must be used if the voltage is AC. Depending on the gate voltage, use 12 V AC or 24 V AC.
