INSTALL THE VFD
9. Install the wires that you removed from the old VFD in Step 5 into the new VFD. Use the following images
(and the "Spindle Drive (Sheet 4)" (page33) wire schematic) to verify all connections.

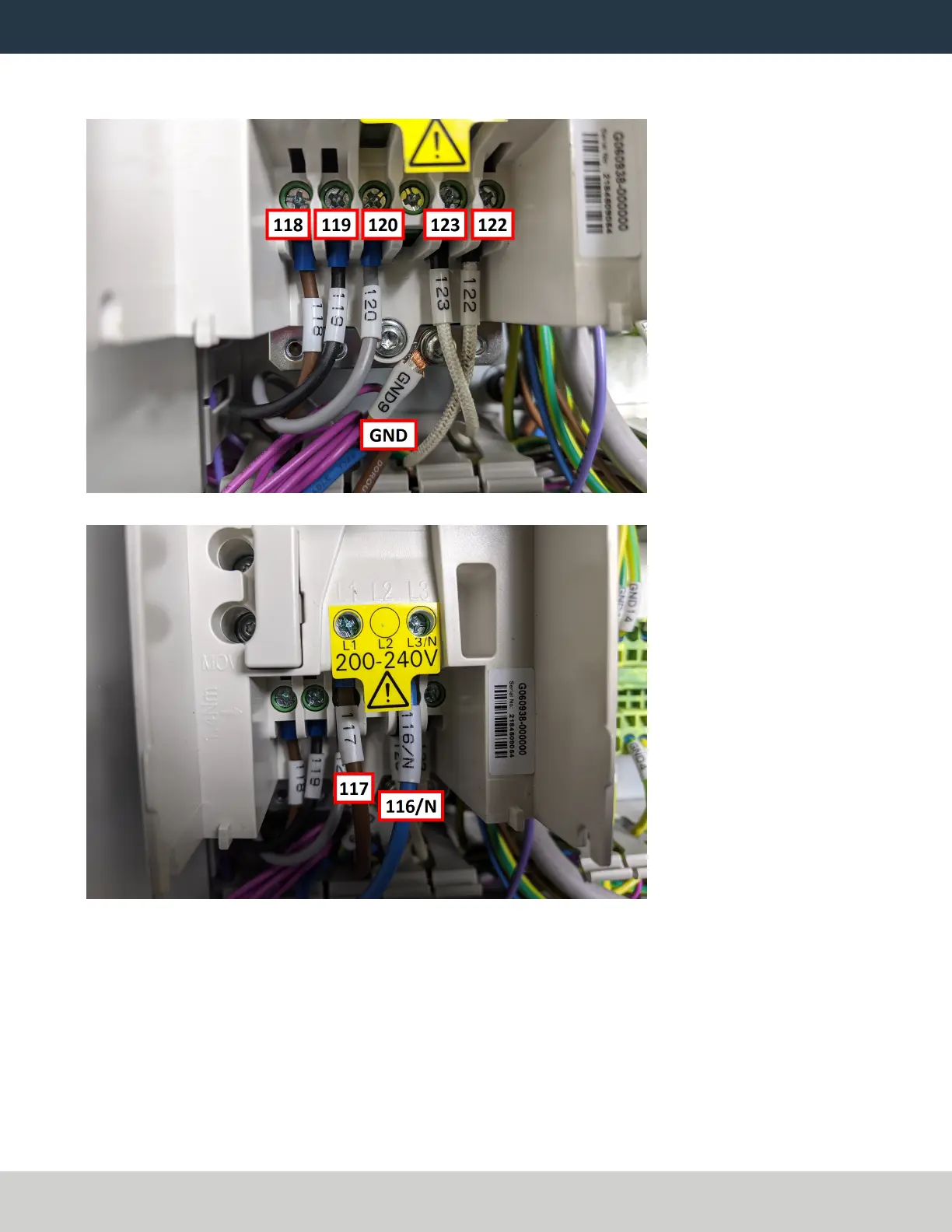

Figure 31: VFD wiring.
Figure 32: VFDwiring.
