REMOVE THE R8 SPINDLE
4. Remove the spindle lock base with a 5 mm hex wrench.

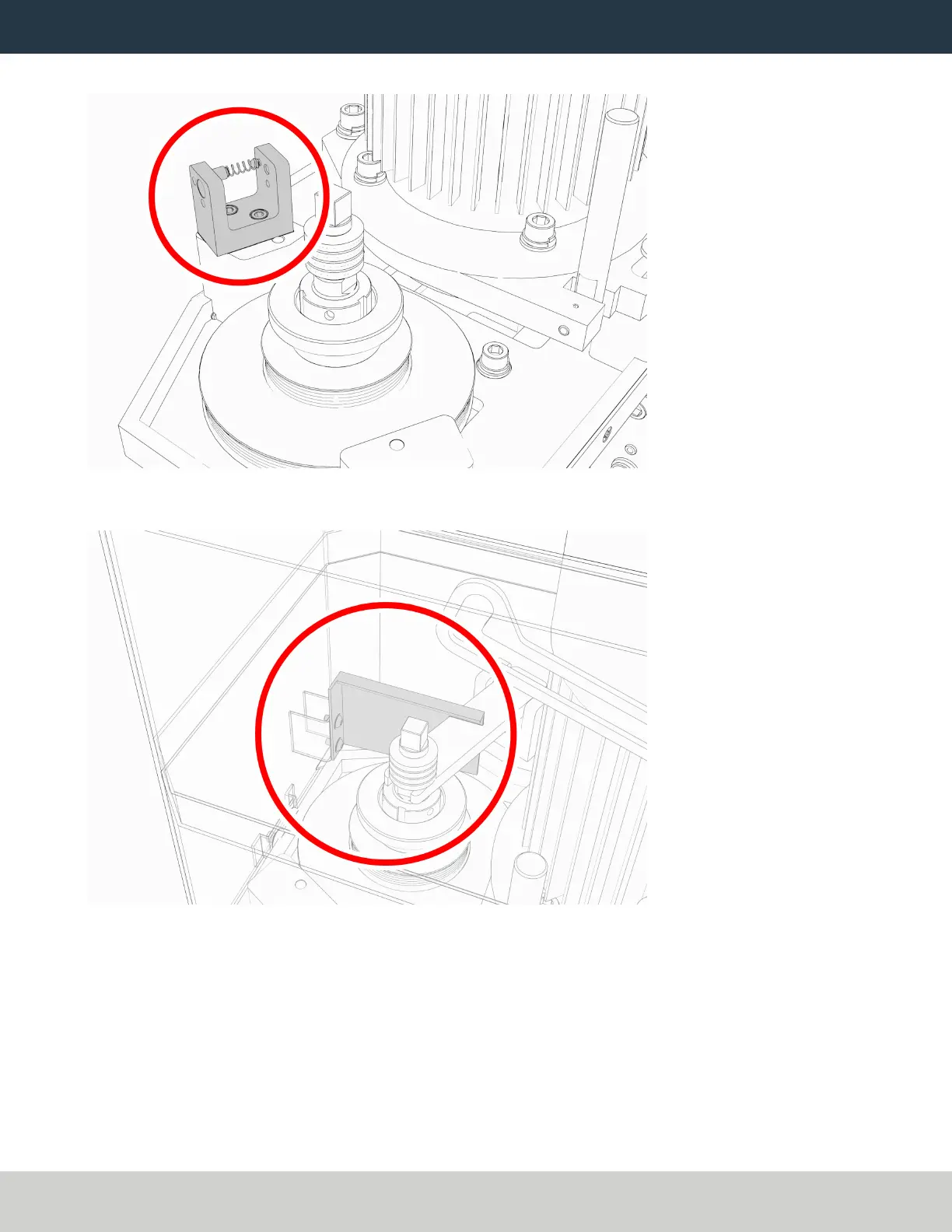

Figure 7: Spindle lock base from the original drawbar assembly.
5. From the spindle door, remove the spindle lock arm with a 4 mm hex wrench.
Figure 8: Spindle lock arm on the spindle door.
6. Go to "Remove the R8 Spindle" (below).
Remove the R8 Spindle
7. Remove the existing drawbar assembly (including its spring washers) and the R8 collet with a 13 mm and 19
mm open-ended wrench.
