REMOVE THE POWER DRAWBAR
6. Disconnect the spindle motor quick-connect fitting.

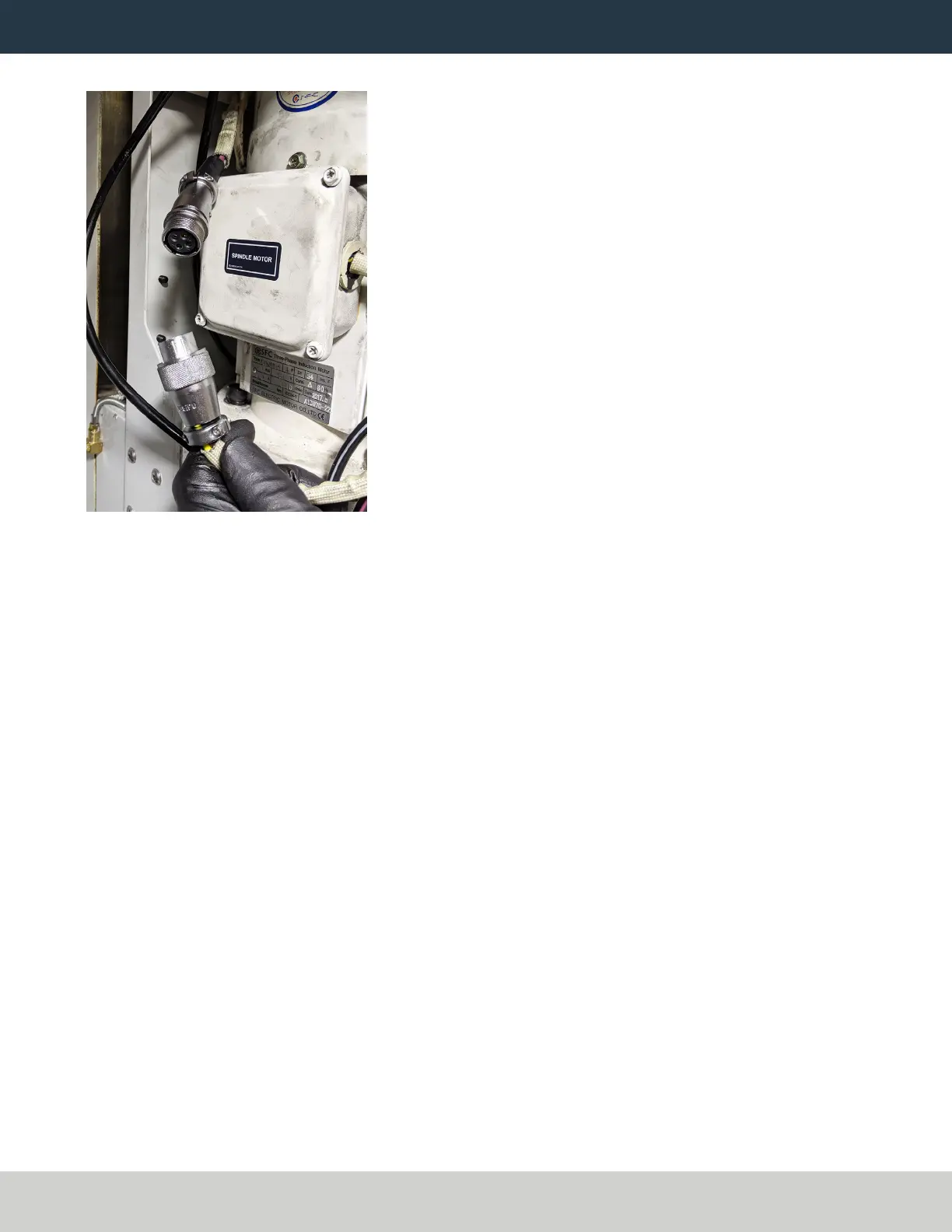

Figure 1: Spindle motor quick-connect fitting disconnected.
7. The procedure varies based on your tool changing method. Depending on what's installed on your machine,
do one of the following:
l "Remove the Power Drawbar" (below)
l "Disassemble the Original Drawbar" (page10)
Remove the Power Drawbar
1. Confirm that the top air line is labeled Top, and the bottom air line is labeled Bottom. If the air lines aren't
labeled, label them.
Page 8
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10705: Installation Guide: BT30 Spindle Upgrade Kit for 1100M+ (0521A)
