DISASSEMBLE THE ORIGINAL DRAWBAR
3. Use a 5 mm hex wrench to remove the shoulder screw from the base plate. Then, pull out the quick-release
pin.

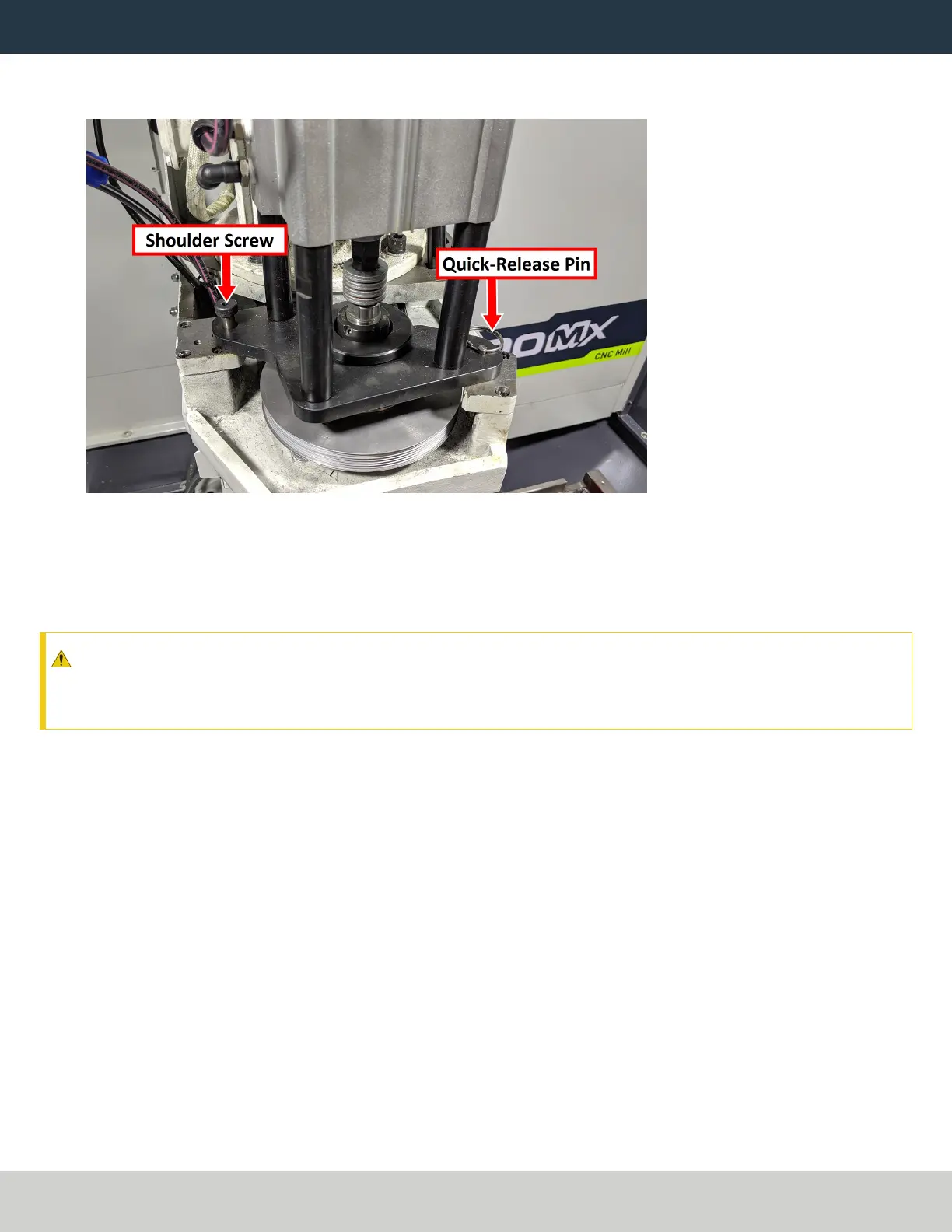

Figure 4: Components to remove on the power drawbar.
4. Remove the power drawbar cylinder.
5. Go to "Remove the R8 Spindle" (page12).
Disassemble the Original Drawbar
CAUTION! Loose Objects Hazard: The original drawbar contains spring-loaded hardware, which could
quickly become loose, causing serious injury. Before disassembling the original drawbar, you must put on
safety eyewear that meets ANSI Z87+.
Page 10
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10705: Installation Guide: BT30 Spindle Upgrade Kit for 1100M+ (0521A)
