REMOVE THE POWER DRAWBAR

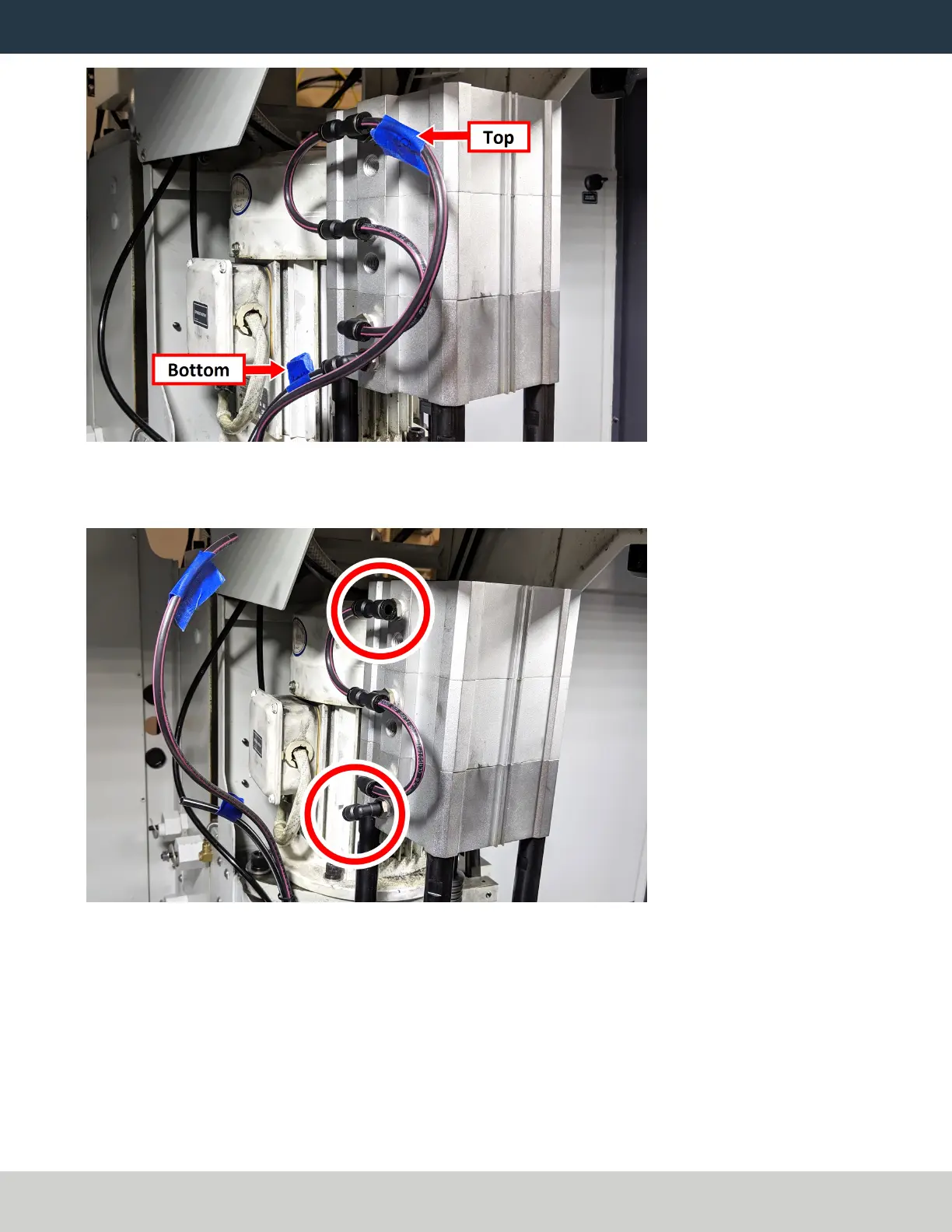

Figure 2: Power drawbar air lines labeled.
2. Disconnect the 1/4 in. air lines from the top and bottom push-to-connect fittings on the power drawbar
cylinder.
Figure 3: Power drawbar air lines disconnected.
