12 Instructions for Use TORMAX 2101 T-1672 e
4 Operation
The automatic sliding door may only be operated by a skilled person, the operator or a person in-
structed by the operator.
4.1 Commissioning
Before switching on the mains power supply:
• Unlock the optional mechanical door lock e.g. floor lock.
• Check that the movement area of the door leaves is free from objects e.g. umbrella stands or vehicles.
• Check that the floor guide (particularly if it is continuous) is clean and not blocked by anything (e.g.
gravel or snow).
• Switch on the mains power supply and select operating mode AUTO, for example.
• Wait until the door is closed.
 The first movement after switching the power on for the first time is slow. The control system is
checking the door leaf’s travel distance and defining the end position.
 The door is now ready for operation.

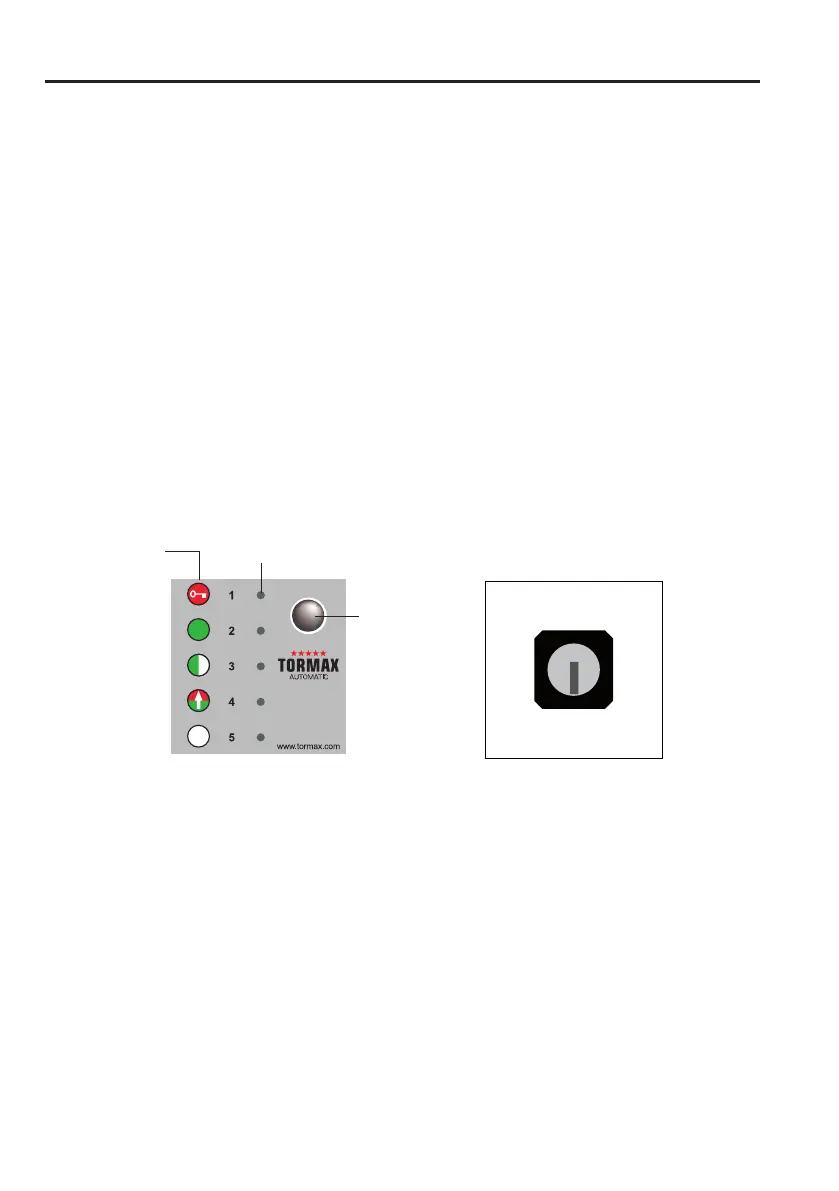

4.2 Operation with TORMAX User Interface u
TORMAX User Interface Lock u for User Interface
www.tormax.com
1
2
3
4
1
1
0
T1427_4
Selection of Operating Modes
• Release lock u for user interface.
• Press selector key briefly. The corresponding operating mode symbol is illuminated.
Switching to manual operation
• Press the selector key and hold down for 5 seconds.
 Manual operation is indicated by all five LEDs flashing.
• Press the selector key briefly to switch out of manual mode.
Fault indication
e.g. LED 4 flashes. See Section 5 for how to proceed in the event of faults and how to reset the system.
See chapter 7 for the definition of the fault.
Operating mode
T1165_1e
LED
Selector key
OFF
AUTO
AUTORED
OPEN
EXIT
