18 Instructions for Use TORMAX 2101 T-1672 e

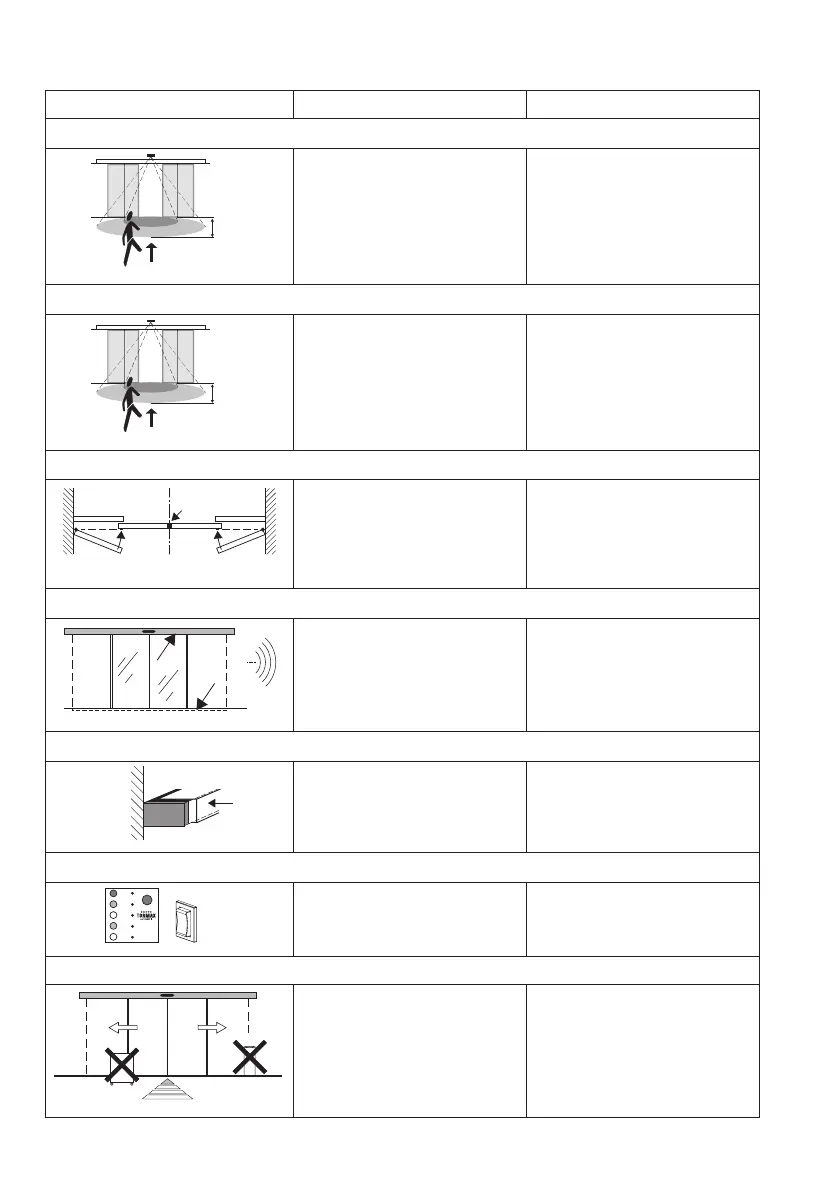

7.2 Check-list for Functional Checks
Item To Be Checked Procedure Result
Activating Sensors
T1321_18
min. 1 m
• Walk through the door directly
from the front and from differ-
ent directions at normal
speed, starting both from the
inside and outside. Activation
min. 1 m from main closing
edge.
The door opens at the right time
and with sufficient speed so that
passage through the door Is not
hindered.
Safety Sensors (can be combined with activating sensors)
T1321_18
min. 1 m
• Walk through the door directly
from the front and from differ-
ent directions at a slow speed
like an infirm person, starting
both from the inside and out-
side. Activation min. 1 m from
main closing edge.
The door opens and remains
open until you are completely
through the door.
Moving Leaves, Side Parts, Fixed Leaves
• Check the glass door fillings,
door edges and rubber pro-
files for damage.
The door fillings have no sharp
edges and splintered glass.
The side parts and the door seals
are in place and undamaged.
Guide System and Door Guides
• Check the noises made while
the door moves.
No unusual and noticeable
movement noises can be heard
in the drive, guide system or
floor guides.
Cladding
iMotion 2301 / 2401 iMotion 2202
• Check whether the cladding
is correctly slotted into place
and secured.
The cladding is firmly slotted into
place.
Operating Controls
3
• Check the function and mark-
ing of operating controls.
The operating controls are func-
tioning correctly; the markings
are visible and legible.
System Vicinity
T1321_12
• Check access to the door and
the movement area of the
door leaves.
Access to the door is free from
objects and items likely to cause
the user to trip. There are no ob-
jects such as shelves, plant con-
tainers and umbrella stands
within a radius of 50 cm of the
movement area.
