Tormax Automatic Win Drive 2201 - General Information

Instructions for Use Win Drive 2201 T-1165 e 3
1 General Information
Target Groups
• Operatoroftheautomaticslidingdoor.Theoperatoristhepersonresponsiblefortheoperationand
maintenance of the system.
• Personsinstructedbytheoperatortocarryoutcertainduties,forexampletheservicingandmaintenance
of the automatic sliding door.
Area of Application
Product name, door system: Automatic sliding door
Product name, door drive: Win Drive 2201 Sliding Door Drive
Serial number: ………………………………………

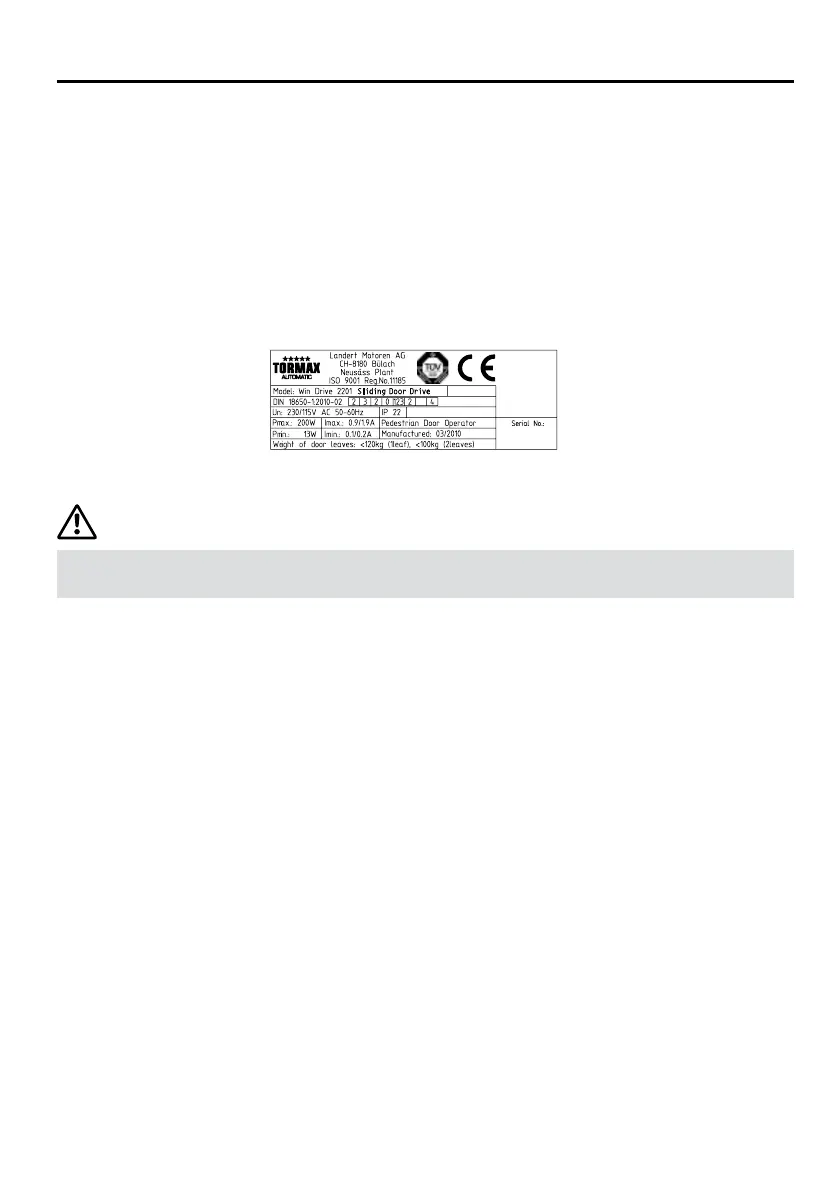

Identicationplate(example)
Explanation of the Symbols
The Warning message warns about possible risk of injury.
Textwhich is highlighted in greyMUST be observed to ensure that the system operates perfectly.
Failure to observe these sections can cause damage to equipment.
Functions marked with this symbol are the factory setting. However, they can be reprogrammed
by a skilled person.
Optional components which are not present in all systems.
Technical Data
Drive type Electro-mechanical sliding door drive with DC motor
Control system Control unit 2201 MCU8-CONU-85-B
Mainsconnection 1x230/1x115VAC,50–60Hz,10A
Powerconsumption max.200W
Motor 24VDC,4,9A
Sensorsupply 24VDC,1A
Protective class, drive IP 22
Ambienttemperature –20°Cto+50°C
Noise emission level < 70 db (A)
<

The identification plate with the
serial number is attached to the
header section.
