Instructions for Use iMotion 1301.FIRE /1401.FIRE T-1540 e 9

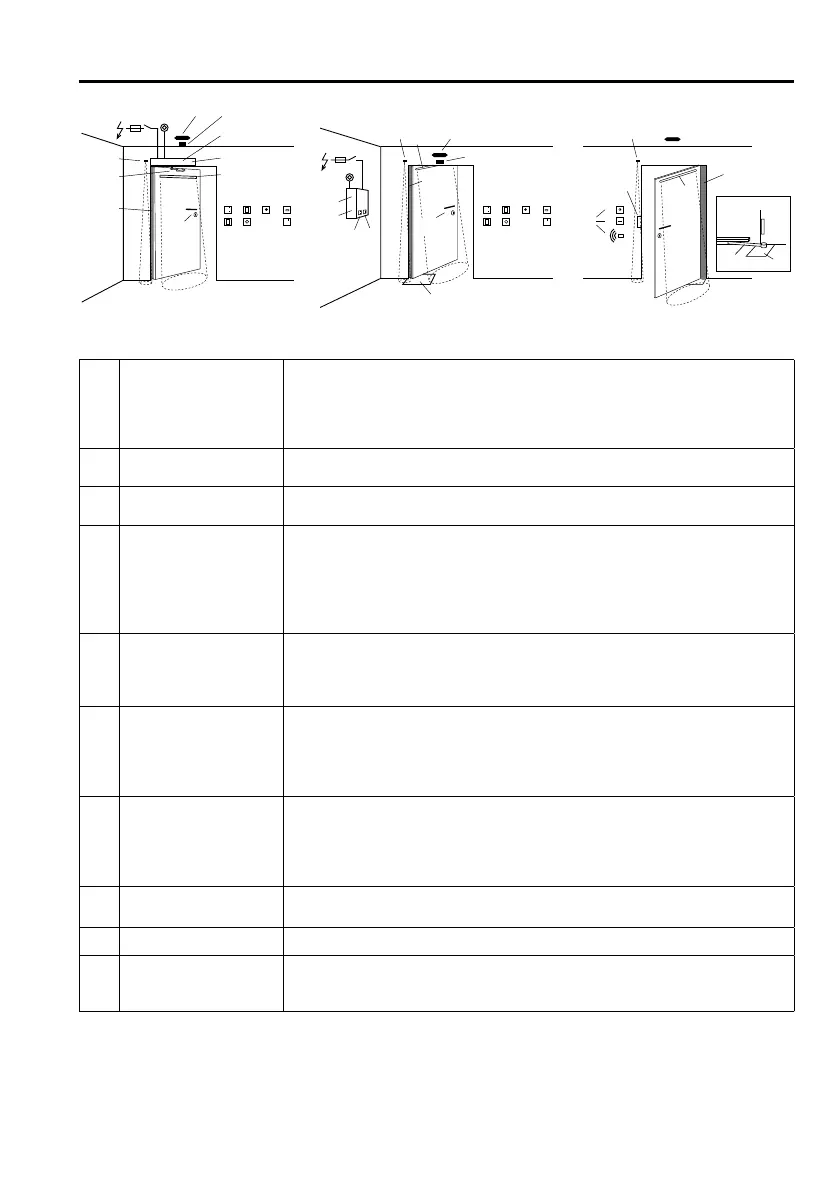

3 System Overview
T1540_4e
iMotion 1401.FIRE iMotion 1301.FIRE / 1401.FIRE
8c
8b
HK
HK
NK
NK
GK
GK
5a
7b
6a
6b
1b
1a
4f
3a
3b
10b,c
4c 4d 4e 4a
5b 8d 4b
4c 4d
10a
8a
7a
7d
7c
3b
1a
1d
outside
3b
7a
5a 8b
HK
inside inside
iMotion 1301.FIRE
GK
1a,b
3a
1c
10b,c
4c, 4d, 4f
8a 8c
4c 4d 4e 4a
5b 8d 4b
7d
1401.FIRE
1 Drive
a) Motor and spring unit
b) MCU32 control system with monitoring system, power limitation and
permanent diagnosis. Without current controlled door closing function.
c) Linkage / sliding lever (1301.FIRE)
d) Linkage pulling (1401.FIRE)
2 Drive accessories
£ Mechanical door coordinator for double-leaf doors
£ …
3 Door leaves
a) Swing leaf * with main closing edge (HK) and secondary closing edge (NK)
b) £ Finger protection * to enhance the safety of the secondary closing edge.
4 Operating controls
a) Manual release button
b) Manual reset button
c) £ User interface with 6 operating modes and fault display
d) £ Operating mode switch with 3 positions.
e) £ Lock for the user interface
f) £ Remote control of operating modes
5 Internal activators
a) With automatic activation b) With manual activation
£ Radar with/without direction recognition
* £ Push button *
£ IR motion detector * £ Contact-free button *
£ Contact mat * £ …
6 External activators
a) With automatic activation b) With manual activation
£ Radar with/without direction recognition * £ Key switch
£ IR motion detector * £ Card reader *
£ Contact mat * £ Remote control *
£ … £ …
7 Safety sensors
a) £ Presence sensor * safeguarding the swing area when closing
b) £ Presence sensor * safeguarding the swing area when opening
c) £ Presence
sensor * safeguarding the opposing closing edge (GK)
d) £ Presence sensor * safeguarding secondary closing edge (NK)
£ …
8 Emergency sys-
tems
a) Power switch / fuse * b) Fire detector *
c) £ External fire alarm system * d) £ Emergency-off switch *
9 Output message
£ Bell / gong * £ Light * £ Door status
10 Lock
a) Electrical door opener *
b) Door handle
*
c) £ Mechanical door lock
*
£ Depending on the system’s equipment
* Provided by the installation company.
The company installing the system must select and install suitable components in accordance with the prod-
uct standard
EN16005 / DIN18650.
