14 Instructions for Use iMotion 1301.FIRE /1401.FIRE T-1540 e
5 Operation
The automatic swing door may only be operated by a skilled person, the operator or a person in-
structed by the operator.
5.1 Commissioning
Before switching on the mains power supply:
• Unlock optional mechanical door locks.
• Check that the movement area of the door leaves is free from obstructions such as racks, plant
containers, umbrella stands etc.
• Switch on the mains power supply and select operating mode AUTOMATIC 1, for example.
The first movement after switching the power on for the first time is slow and H62 and H67 are
displayed. The control system is defining the closed position of the door leaf (H62) and is check-
ing the door leaf travel distance (H67).
The door is now ready for operation.

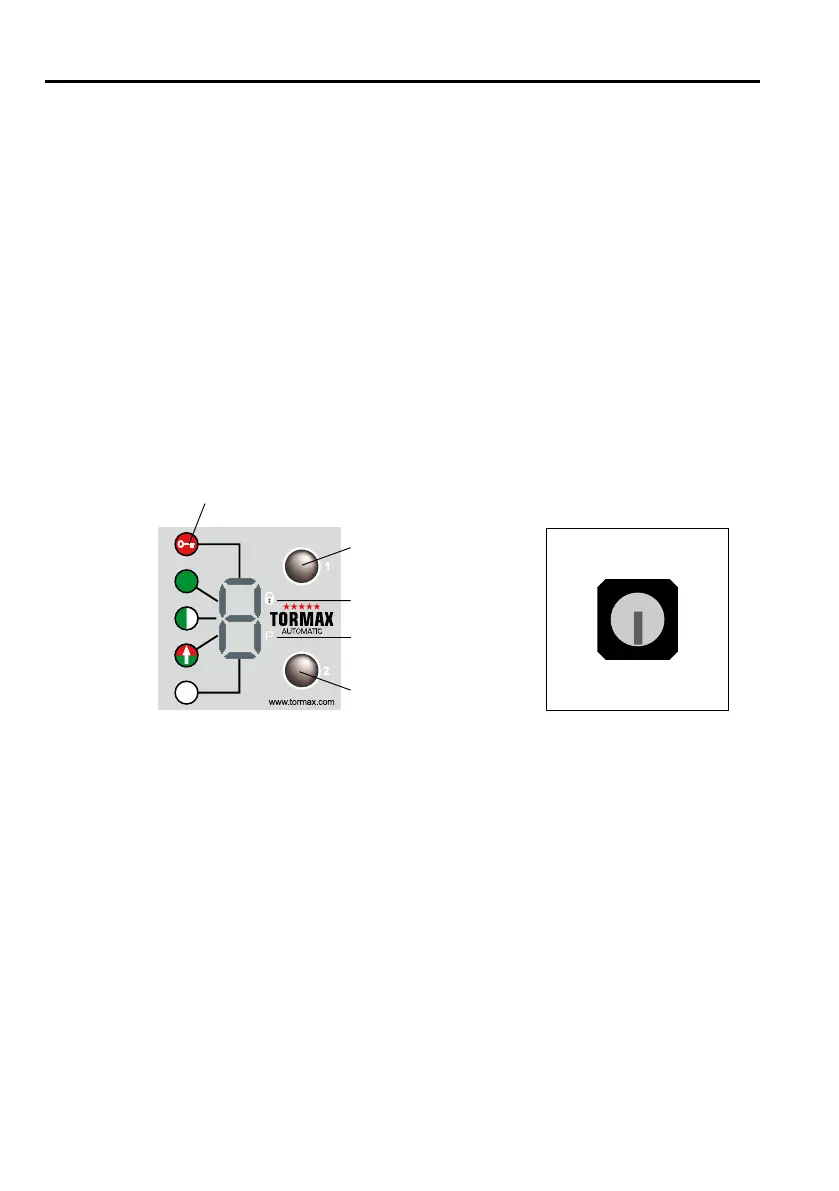

5.2 Operation with the TORMAX User Interface u
TORMAX User Interface Lock u for User Interface
www.tormax.com
1
1
0
T1321_1e
OFF
AUTOMATIC 1
AUTOMATIC 2
OPEN
EXIT
Operating mode
symbols
Manual operation
Door electrically
locked
Selector key 2
Selector key 1
Unlocking of Operating Unit
The operating unit can be protected against unauthorized access by way of the lock u or the code lock.
• Unlock lock = position 0
or
• Enter code … / … / … using operating unit. The code can be determined by the engineer.
Example with code 3 / 3 / 3. Press upper selection button 3 times, then press the lower selection but-
ton 3 times and the upper selection button within 15 s . In case of entering wrong code: Wait at least
5 s . After successfully entering the code, the operating unit will be released within 60 s. The type of
operation can be adjusted. Access will be automatically blocked again for 60 s after the button has
been pressed for the last time.
Selection of Operating Modes
• Press selector keys 1 or 2 briefly. The corresponding operating mode symbol is illuminated.
To Next Page
