Instructions for Use iMotion 1301/1301.S /1401 T-1305 e 3
1 General Information
Target Groups
• Operatorof the automaticswingdoor.The operatoris theperson responsibleforthe operationand
maintenance of the system.
• Personsinstructedbytheoperatortocarryoutcertainduties,forexampletheservicingandmaintenance
of the automatic swing door.
Area of Application
Product name, door system: Automatic swing door
Product name, door drive: iMotion
®
1301 Swing Door Drive
iMotion
®
1301.S Swing Door Drive
iMotion
®
1401 Swing Door Drive
Serial number: ………………………………………

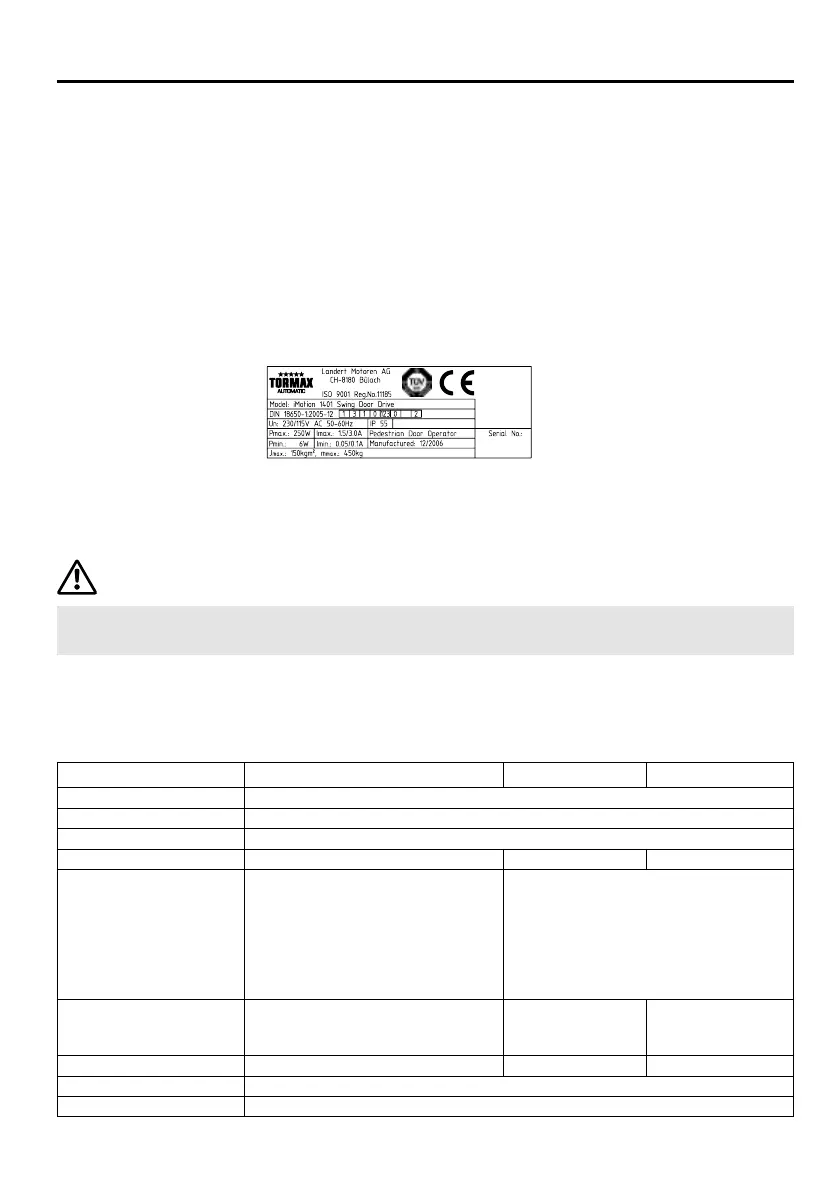

Identification plate
(example)
These Instructions for Use apply to all the above door drives (see the “Technical Data” section for differ-
ences).
Explanation of the Symbols
The warning message warns about possible risk of injury.
Textwhich is highlighted in greyMUST beobserved to ensure that the system operates perfectly.
Failure to observe these sections can cause damage to equipment.
Functions marked with this symbol are the factory setting. However, they can be reprogrammed
by a skilled person.
Optional components which are not present in all systems.
<

The identification plate with the
serial number is placed in the
controlbox(1401)oronthedrive
itself under the casing (1301,
1301.S).
Technical Data
iMotion 1301 iMotion 1301.S iMotion 1401
Drive type Electromechanical swing door operator with AC permanent magnet synchronous motor
Control system iMotion MCU32
Mains connection 1x230/1x115VAC,50–60Hz,10A
Power consumption 6 … 250 W 12 … 330 W 4 … 250 W
Power supply 24VDC+0,5/–1,5V,max.18W*/0,75A,
in battery operationmin.16,5V
40VPWM/max.24W*/2A,equivalent
6…24VDC,voltageandfunctionpro-
grammable. Only for inductive or resis-
tive loads without overload protection.
*Totalload30W
24VDC+0,5/–1,5V,max.36W*/1,5A,
n battery operationmin.16,5V
40VPWM/max.24W*/2A,equivalent
6…24VDC,voltageandfunctionprogram-
mable. Only for inductive or resistive loads
without overload protection.
*Totalloadmax.50W
Protective class, drive IP22 IP22 IP 67 (7 days water
up to upper edge of
oorbox)
Protectiveclass,controlbox – – IP 55
Ambient temperature –20°Cto+50°C
Noise emission level <70db(A)
