Tornatech GPX User Manual

12

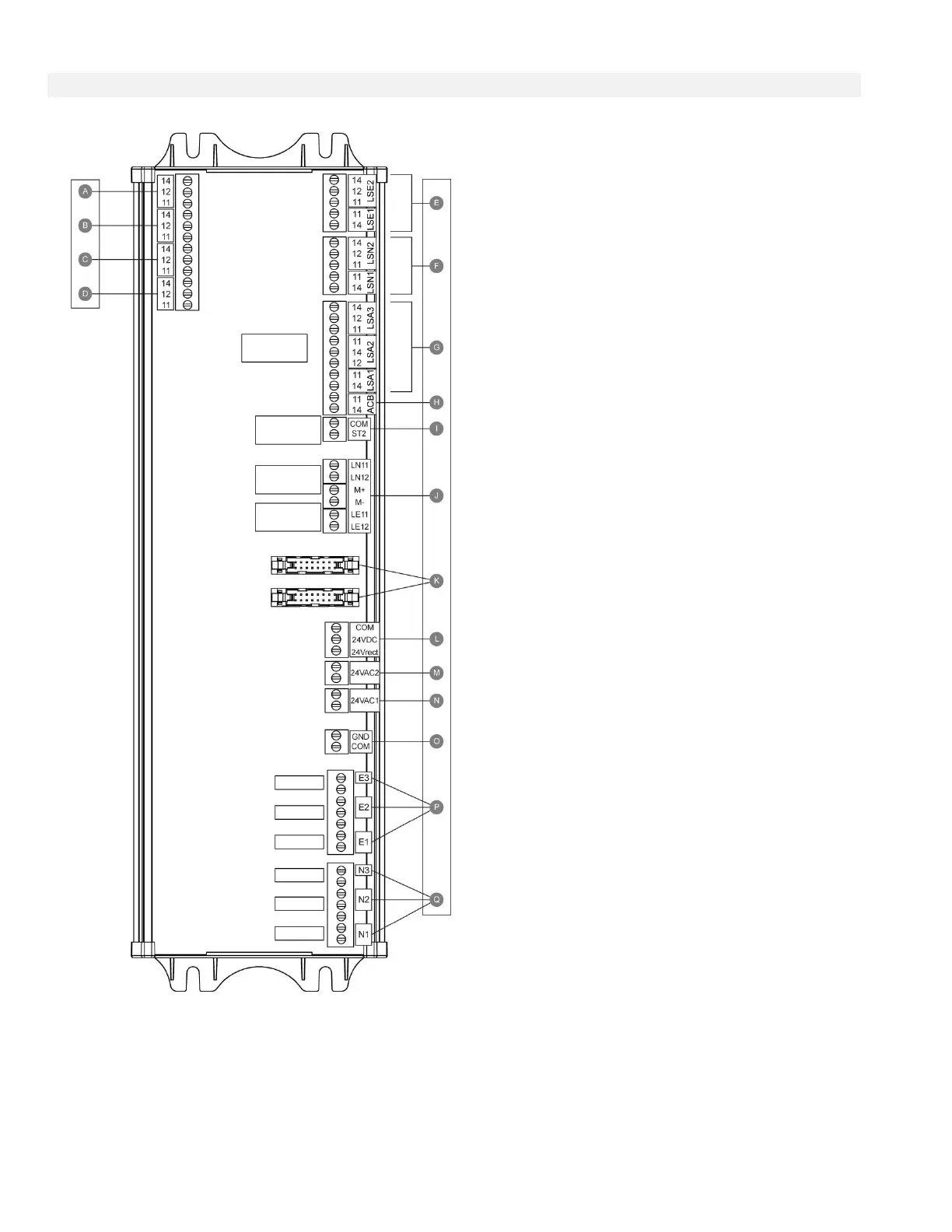

Terminal Strip Descriptions
Outputs terminals:
A: Transfer Switch in Alternate Position
B: Transfer Switch in Normal Position
C: Alternate Circuit Breaker Status
D: Start/Stop Generator Signal
Factory IO:
E: Alternate position limit switches
F: Normal position limit switches
G: AIS/ACB limit switches
H: ACB limit switch
I: ACB shunt trip
J: Transfer Switch motor
K: CANBUS to IO cards
L: Factory Reserved
M: 24VAC input from alternate power
N: 24VAC input from normal power
O: Ground
P: Alternate Voltage sensing Input
Q: Normal Voltage sensing Input

Tornatech GPX Specifications

General

Brand	Tornatech
Model	GPX
Category	Controller
Language	English
