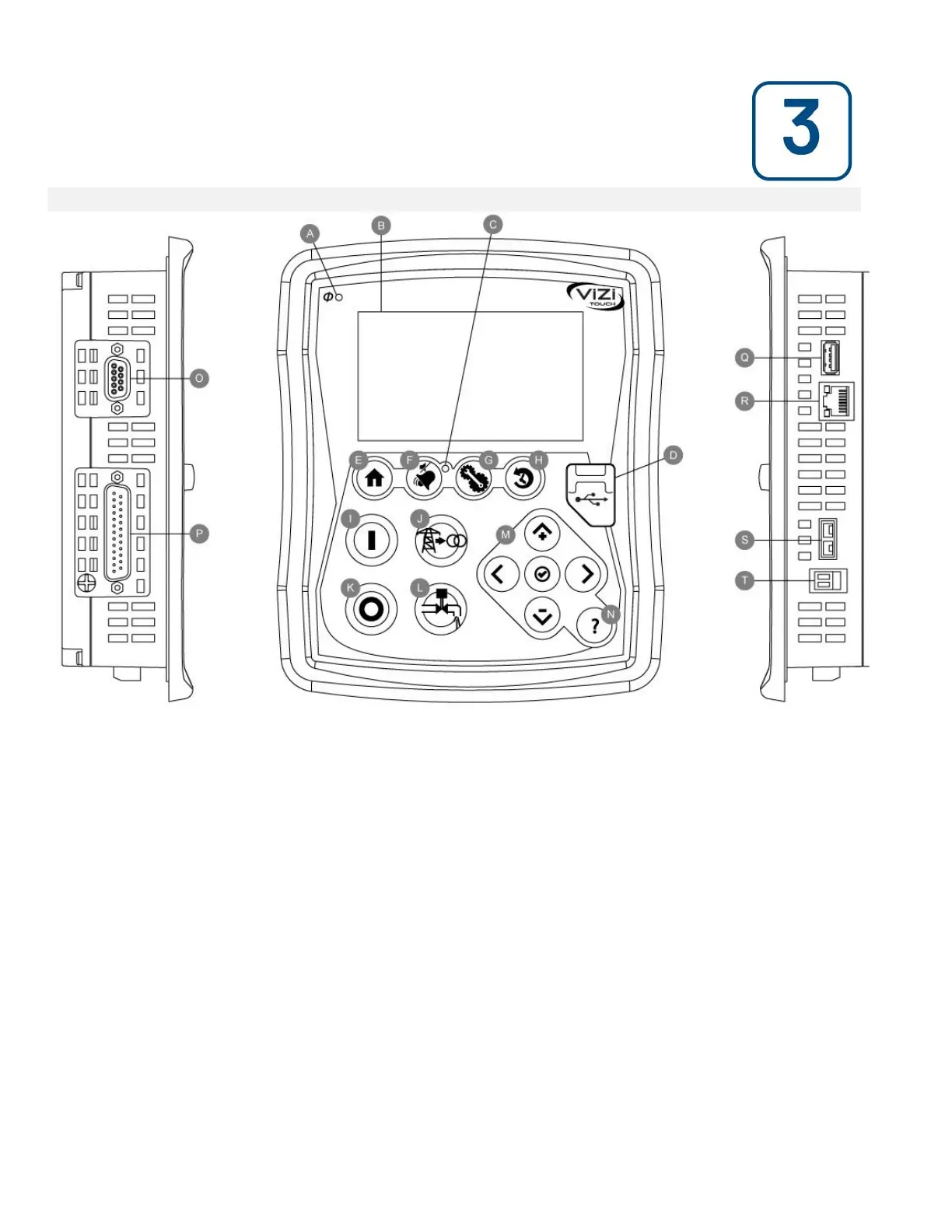

A: Power Available LED: Indicates that power is available.
B: Touch Screen: 4.3 inches color touch screen LCD.
C: Alarm LED: Indicates if an alarm is active.
D: Front USB Connector: USB Device connector used for files download, software update, service reports.
E: Home button: Used to navigate to the Home page.
F: Alarm button: Used to navigate to the Alarm page. It also allows the user to silence the alarm bell, hence the
small "no speaker" symbol.
G: Config button: Used to navigate to the Configuration page.
H : History button: Used to navigate to the History page.
I: Start button: Used to manually start the motor.
J: Transfer Switch Test Button: Used to test the transfer switch sequence.
K: Stop button: Used to stop the motor.
L: Run Test button: Used to start the manual run test. Be aware that water will flow through the drain with models
equipped with a solenoid valve.
M: Contextual navigation pad: Used to facilitate the navigation on specific pages. A small icon representing the
contextual navigation pad will appear at the bottom right corner of a page if the pad is active. By clicking on the
small pad icon, a menu explaining the specific functions of the arrows will appear. For example, it is possible to
switch between the graphical or the table mode on the logs page, as well as navigate through the tables or the help
pages.
N: Help button: The help button is context sensitive, meaning that it will always show the specific help page linked
to the actual ViZiTouch page that was selected when the button was pressed.
O: RS-485 connector
P: CAN bus connector to IO cards
Q: USB 2.0 connector
