Lubrication
GreasingtheBearingsand
Bushings
ServiceInterval:Every50hours(andimmediately
aftereverywashing).
Lubricateallgreasettingsforthebearingsand
bushingsafterwithNo.2lithiumgrease.
Thegreasettinglocationsandquantitiesareas
follows:

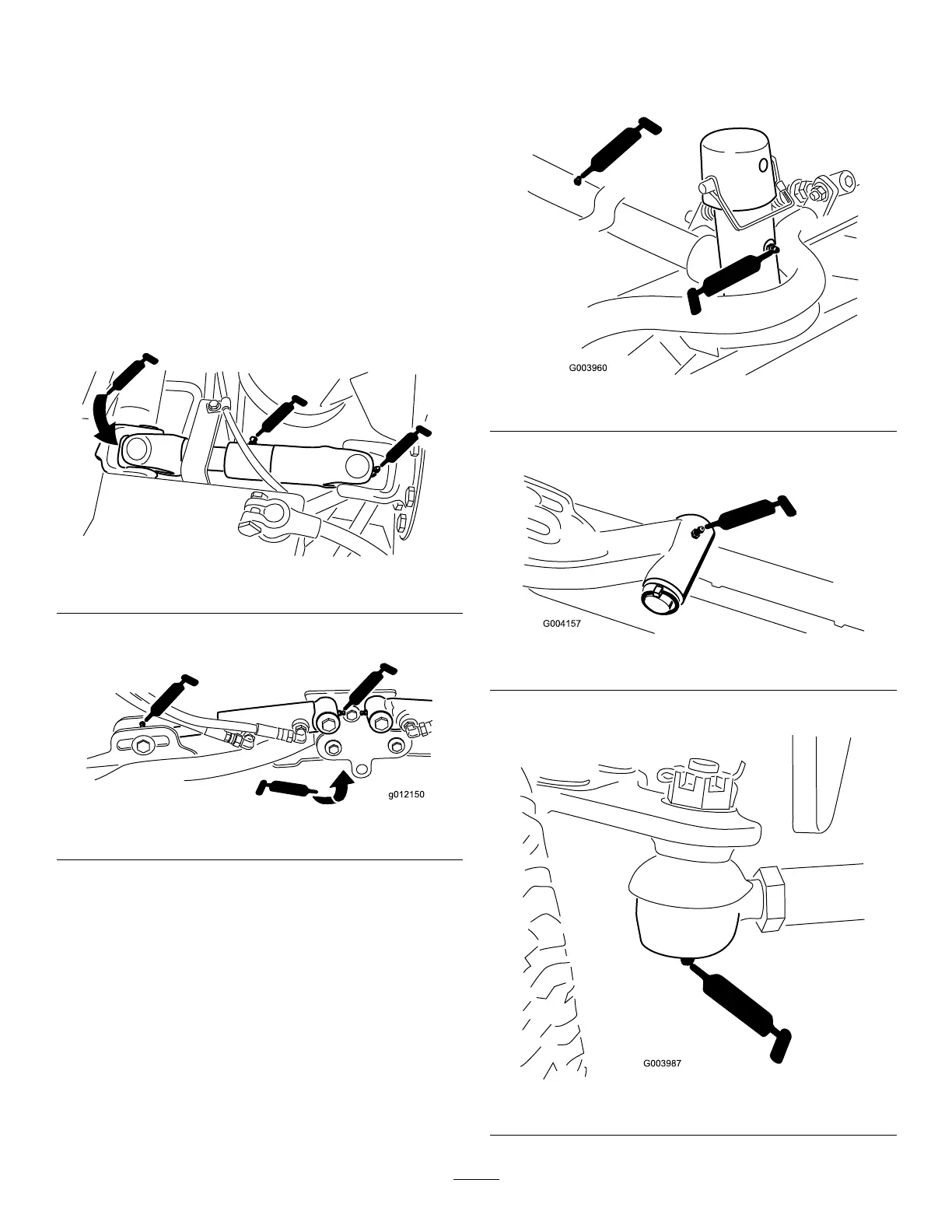

•Pump-driveshaftU-joint(3)(Figure36)
g003962
Figure36
•Cutting-unitlift-armcylinders(2each)(Figure37)
g012150
Figure37
•Lift-armpivots(1each)(Figure37)
•Cutting-unitcarrier-frameandpivot(2each)
(Figure38)
g003960
Figure38
•Lift-armpivotshaft(1each)(Figure39)
g004157
Figure39
•Rearaxletierod(2)(Figure40)
g003987
Figure40
