Iftheside-dischargechuteisonthemower,removeitbefore
baggingtheclippings;refertoRemovingtheSide-Discharge
Chute(page15).
InstallingtheGrassBag

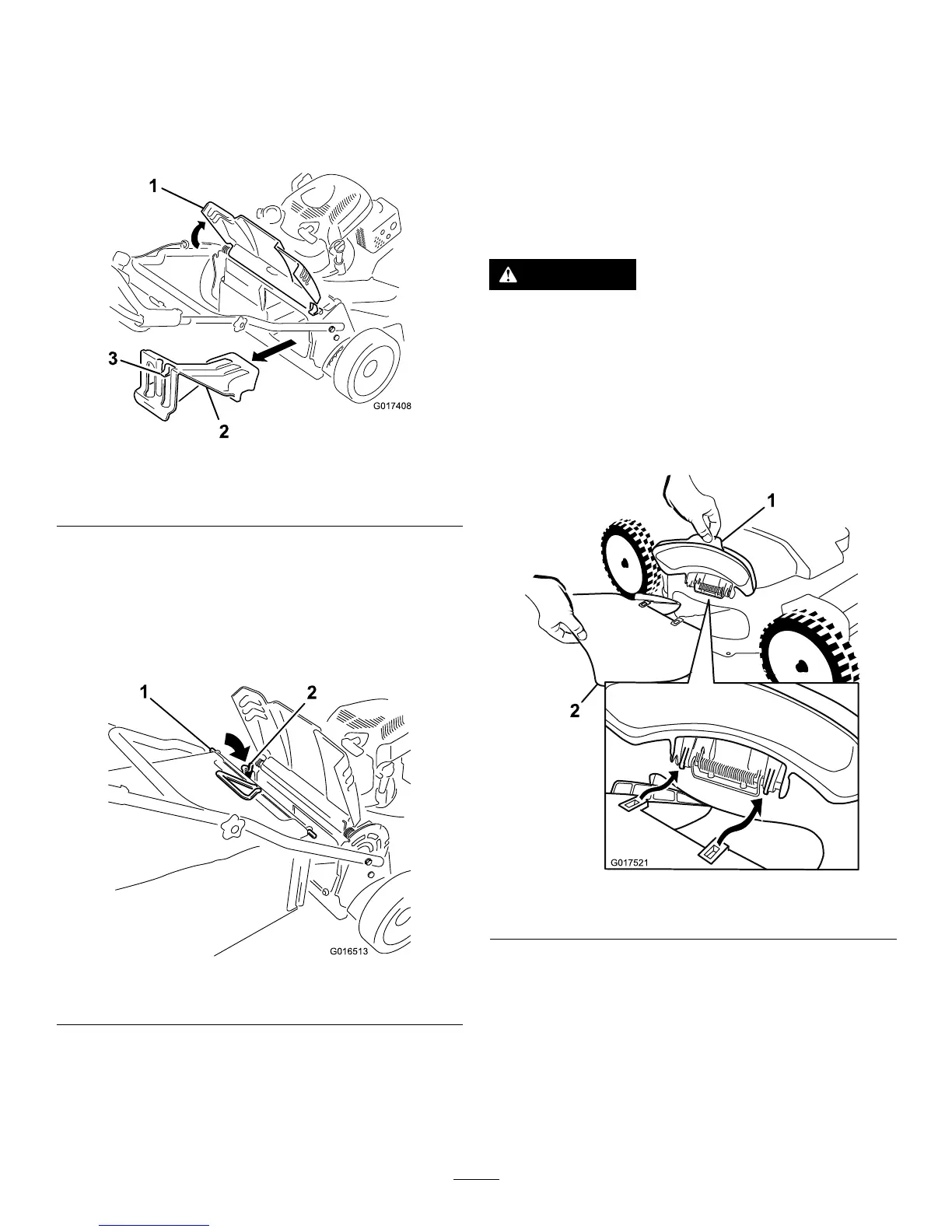

1.Raiseandholdupthereardeector(Figure27).
1
2
G017408
3
Figure27
1.Reardeector
3.Latch
2.Rear-dischargeplug
2.Removetherear-dischargeplugbypullingdownonthe
latchwithyourthumbandpullingtheplugoutfrom
themachine(Figure27).
3.Installthebagrodintothenotchesatthebaseofthe
handleandrockthebagbackandforthtoensurethat
therodisseatedatthebottomofbothnotches;refer
toFigure28.
G016513
1
2
Figure28
1.Bagrod
2.Notch(2)
4.Lowerthereardeectoruntilitrestsonthegrassbag.
RemovingtheGrassBag
Toremovethebag,reversethestepsinInstallingtheGrass
Bag(page14).
Side-Dischargingthe
Clippings
Usethesidedischargeforcuttingverytallgrass.
Ifthebagisonthemachine,removeitandinsertthe
rear-dischargeplug;refertoRemovingtheGrassBag(page
14)beforeside-dischargingtheclippings.
Important:Ensurethattherear-dischargeplugisin
placebeforeyourecycletheclippings(Figure26).
WARNING
Thebladeissharp;contactingthebladecanresult
inseriouspersonalinjury.
Stoptheengineandwaitforallmovingpartstostop
beforeleavingtheoperatingposition.
InstallingtheSide-DischargeChute
1.Liftopentheside-dischargedeector(Figure29).
G017521
1
2
Figure29
1.Side-dischargedeector2.Side-dischargechute
2.Installtheside-dischargechuteasshowninFigure29
andFigure30,andclosethedeectorontothechute.
