ServicingtheAirFilter
ServiceInterval:Beforeeachuseordaily
Yearly

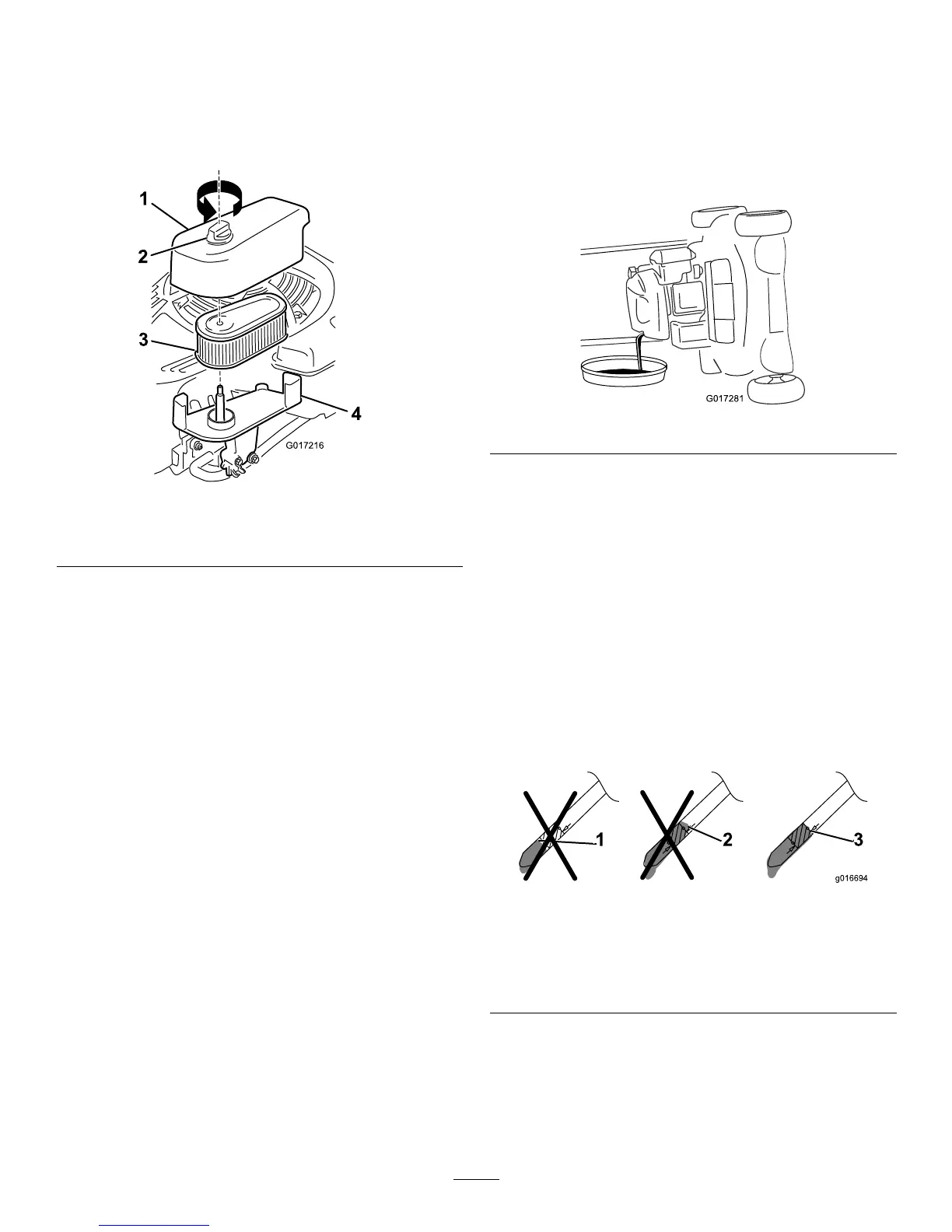

1.Loosenthefastenerandremovetheair-ltercover
(Figure32).
G017216
2
1
3
4
Figure32
1.Cover
3.Filter
2.Fastener4.Base
2.Removeandinspectthelter.
•Ifthelterisdamagedoriswetwithoilorfuel,
replaceit.
•Ifthelterisdirty,tapitonahardsurfaceseveral
timesorblowthedebrisoutwardfromtheinterior
ofthelterusingcompressedairatlessthan207
kPa(30psi).
Note:Donotbrushorblowdirtfromtheoutside
ofthelter;eitherforcesdirtintothebers.
3.Cleantheair-lterbodyandcoverusingadamprag.
Keepdirtawayfromtheairopening.
4.Installthelterontothebase.
5.Installthecoverandscrewthefastenerdownsecurely.
ChangingtheEngineOil
ServiceInterval:Aftertherst5hours
Every50hours
Yearly
Note:Runtheengineafewminutesbeforechangingthe
oiltowarmit.Warmoilowsbetterandcarriesmore
contaminants.
1.Ensurethatthefueltankcontainslittleornofuelso
thatfueldoesnotleakoutwhenyoutipthemachine
ontoitsside.
2.Movethemachinetoalevelsurface.
3.Disconnectthewirefromthesparkplug.Referto
PreparingforMaintenance(page16).
4.Tipthemachineontoitsside,withthedipstickdown,
untiltheupperhandlerestsontheground.
5.Setanoil-drainpanunderthedipstick.
6.Removethedipstickanddraintheusedoilintothe
oil-drainpan(Figure33).
G017281
Figure33
7.Afterdrainingtheusedoil,returnthemachinetothe
operatingposition.
8.Pourabout3/4ofthecrankcasecapacityofoilinthe
crankcase.
Note:Max.ll:0.59L(20oz),type:SAE30
detergentoilwithanAPIserviceclassicationofSF,
SG,SH,SJ,SL,orhigher.
9.Waitabout3minutesfortheoiltosettleinthe
crankcase.
10.Wipethedipstickcleanwithacleancloth.
11.Insertthedipstickfullyintotheoil-lltube,then
removethedipstick.
12.Readtheoillevelonthedipstick(Figure34).
Figure34
1.Theoillevelistoolow;
addoiltothecrankcase.
3.Theoilleveliscorrect.
2.Theoillevelistoohigh;
removeoilfromthe
crankcase.
•Iftheoillevelistoolow,slowlypourasmall
amountofoilintotheoil-lltube,wait3minutes,
andrepeatsteps10through12untiltheoillevelis
correctasshowninFigure34.
•Iftheoillevelistoohigh,draintheexcessoiluntil
youobtainthecorrectoillevelonthedipstick.
17
