Toro 20199 Operation Manual

RemovingtheBlades
Replacethebladeswhenthemachinehitsasolidobjector
whenabladeisoutofbalanceorbent.Useonlygenuine
Tororeplacementblades.
1.Useablockofwoodtoholdeachbladesteadyandturn
thebladeboltcounterclockwiseasshowninFigure44.

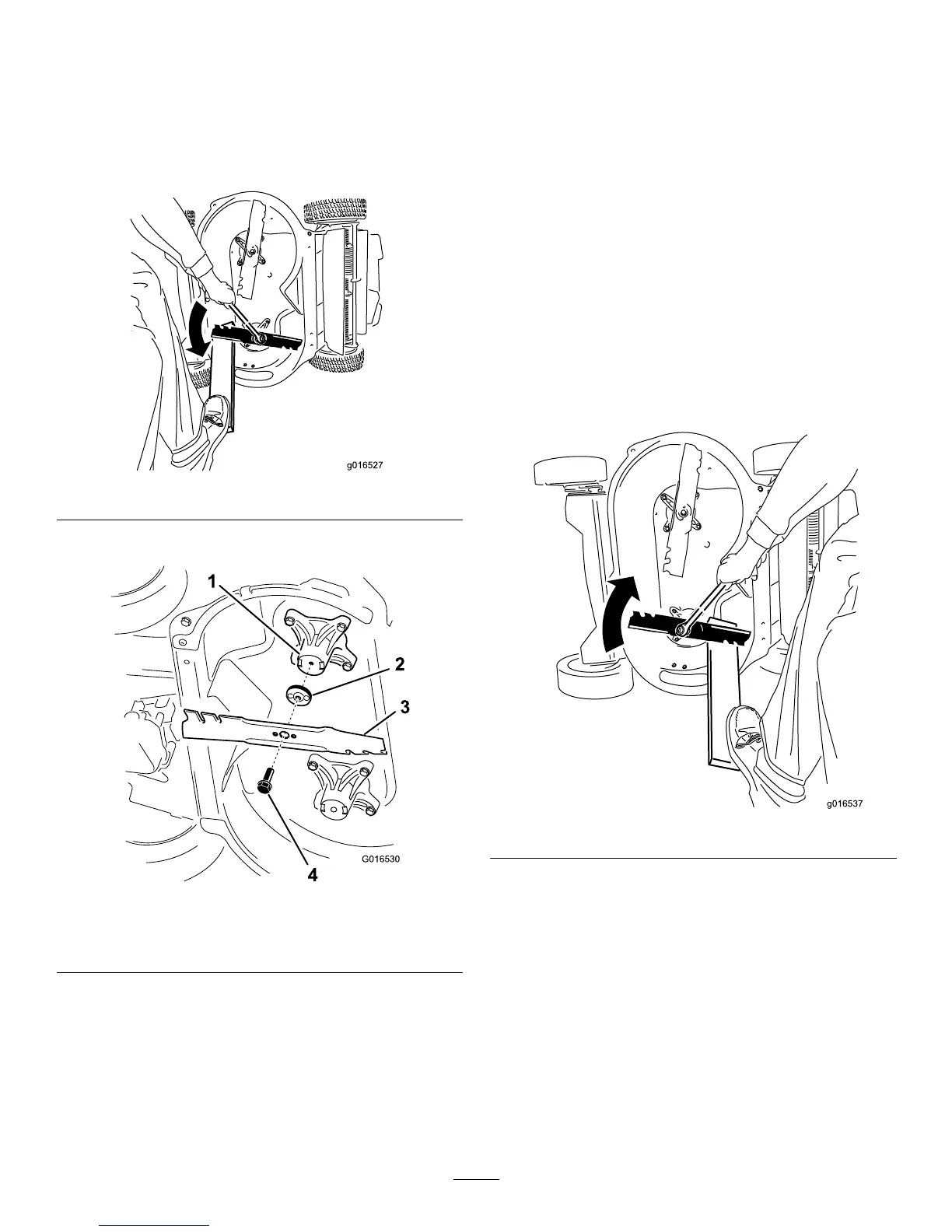

Figure44
2.RemoveeachbladeasshowninFigure45.
G016530
1
2
3
4
Figure45
1.Spindle(2)3.Blade(2)
2.Bladedriver(2)4.Bladebolt(2)
3.Inspectthepinsonthebladedriversforwearand
damage.
InstallingtheBlades
1.Installtherstbladesothatitishorizontal,alongwith
allmountinghardwareasshowninFigure45.
Note:Tightentheboltwithyourngers.
Important:Positionthecurvedendsoftheblades
topointtowardthemachinehousing.Besureto
nesttheraisedareasoneachbladedriverwiththe
recessesintheheadofitscorrespondingspindle,
andthepinsontheothersideofeachbladedriver
withtheholesinitscorrespondingblade.
2.Steadyeachbladewithaboardandturnthebladebolt
clockwisewithatorquewrenchasshowninFigure46;
torquethebladeboltto82N-m(60ft-lb).
Important:Abolttorquedto82N-m(60ft-lb)is
verytight.Putyourweightbehindthewrenchand
tightentheboltsecurely.Thisboltisverydifcult
toovertighten.
g016537
Figure46
3.Rotatetheinstalledblade1/4turnuntilitisvertical,
andinstalltheotherbladeinthesamemannerasthe
rst(refertostep1).
Note:Thebladesshouldbeperpendicular,forming
aninverted“T”asshowninFigure47.
22

Toro 20199 Specifications

General

Model Number	20199
Product Type	Lawn Mower
Power Source	Gasoline
Deck Material	Steel
Mulching Capability	Yes
Bagging Capability	Yes
Side Discharge	Yes
Start Type	Recoil
Cutting Width	22 inches
Fuel Capacity	1.0 quarts
Drive System	Rear-wheel drive
