ChuteAssemblyInstallation(continued)
g352577

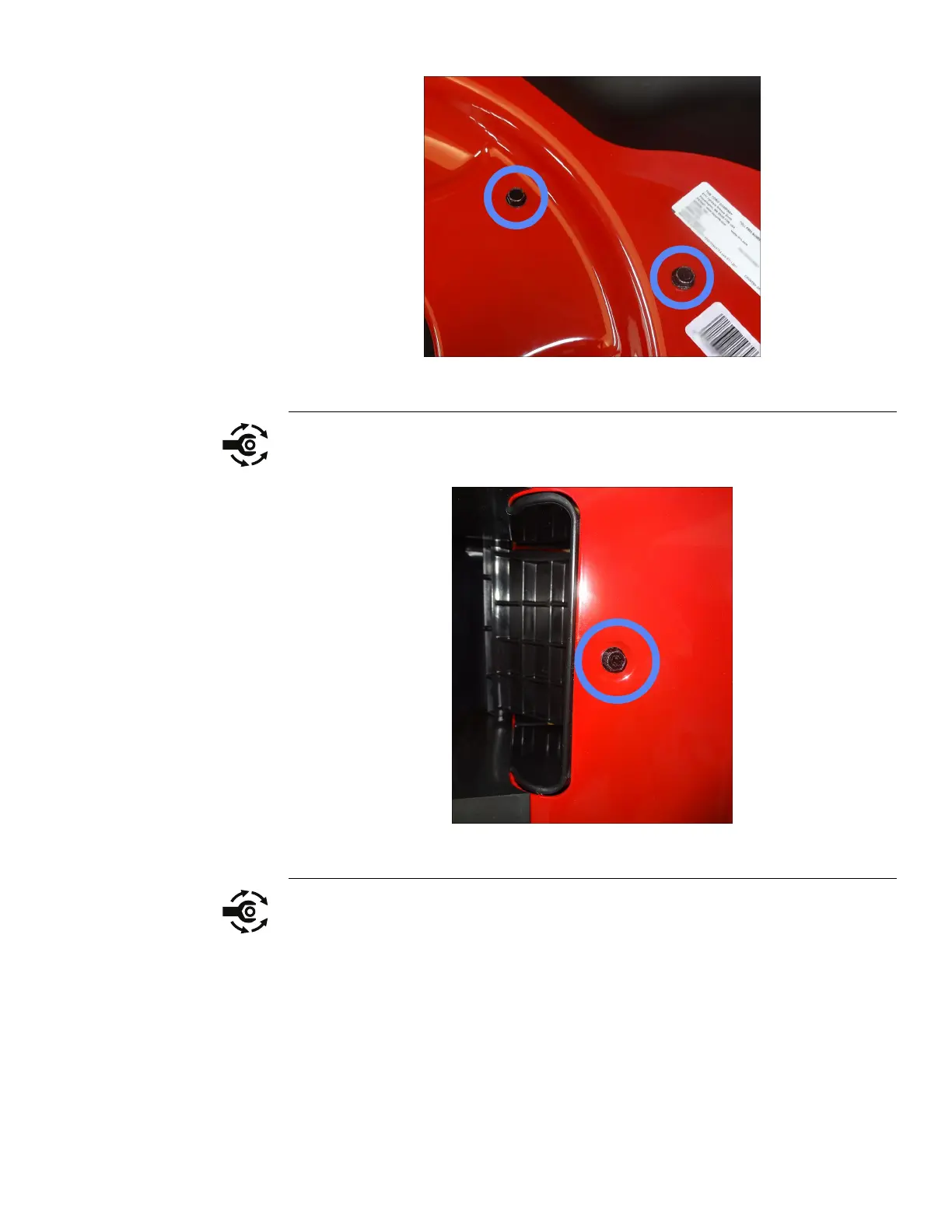

Figure121
3.Installthebafetothedeck,securewiththe(1/4–10inch)rearscrew.T orque
thescrewsto3.39±0.45N•m(30±4in-lbs).
g352576
Figure122
4.Installthe2(1/4–10inch)LHscrewssecuringtherearbafetothedeck.
Torquethescrewsto3.39±0.45N•m(30±4in-lbs).RepeatontheRH
sideoftheunit.
