AWDFrontWheelRemoval(continued)
g359881

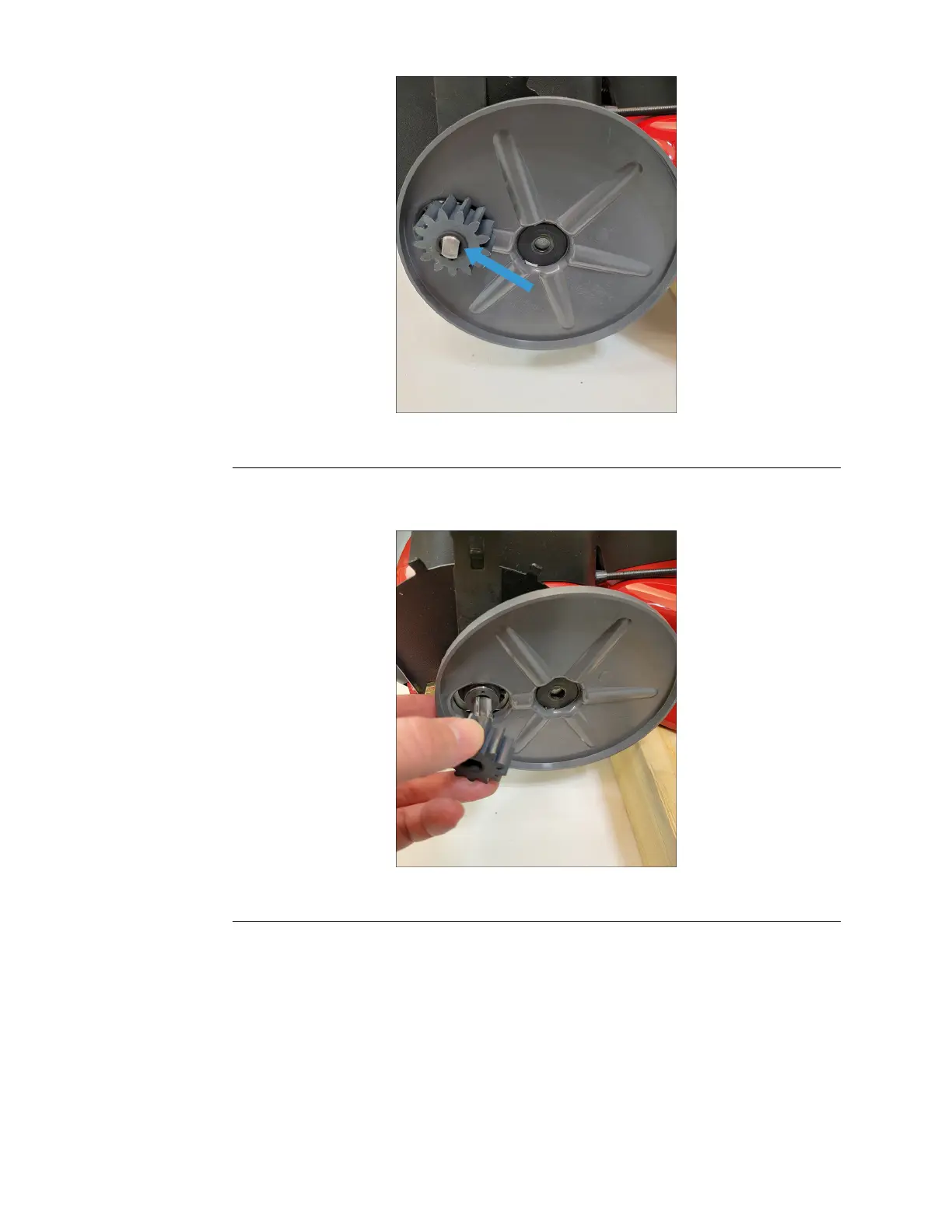

Figure131
8.RemovetheLHpiniongearandwasherfromtheLHtransmissionaxleshaft.
RepeatontheRHsideoftheunit.
g359882
Figure132
9.RemovetheLHwheelcoverfromtheLHtransmissionaxleshaft.Repeat
ontheRHsideoftheunit.
AWDFrontWheelInstallation
1.InstalltheLHwheelcovertotheLHtransmissionaxleshaft.Repeaton
theRHsideoftheunit.
2.InstallthewasherandpiniongeartotheLHtransmissionaxleshaft.Repeat
ontheRHsideoftheunit.
DriveSystem:ServiceandRepairs
Page7–8
22InchAWD/RWDSteelDeckWalkPower
MowerServiceManual
3445-579RevA
