AWDRearTransmissionInstallation(continued)

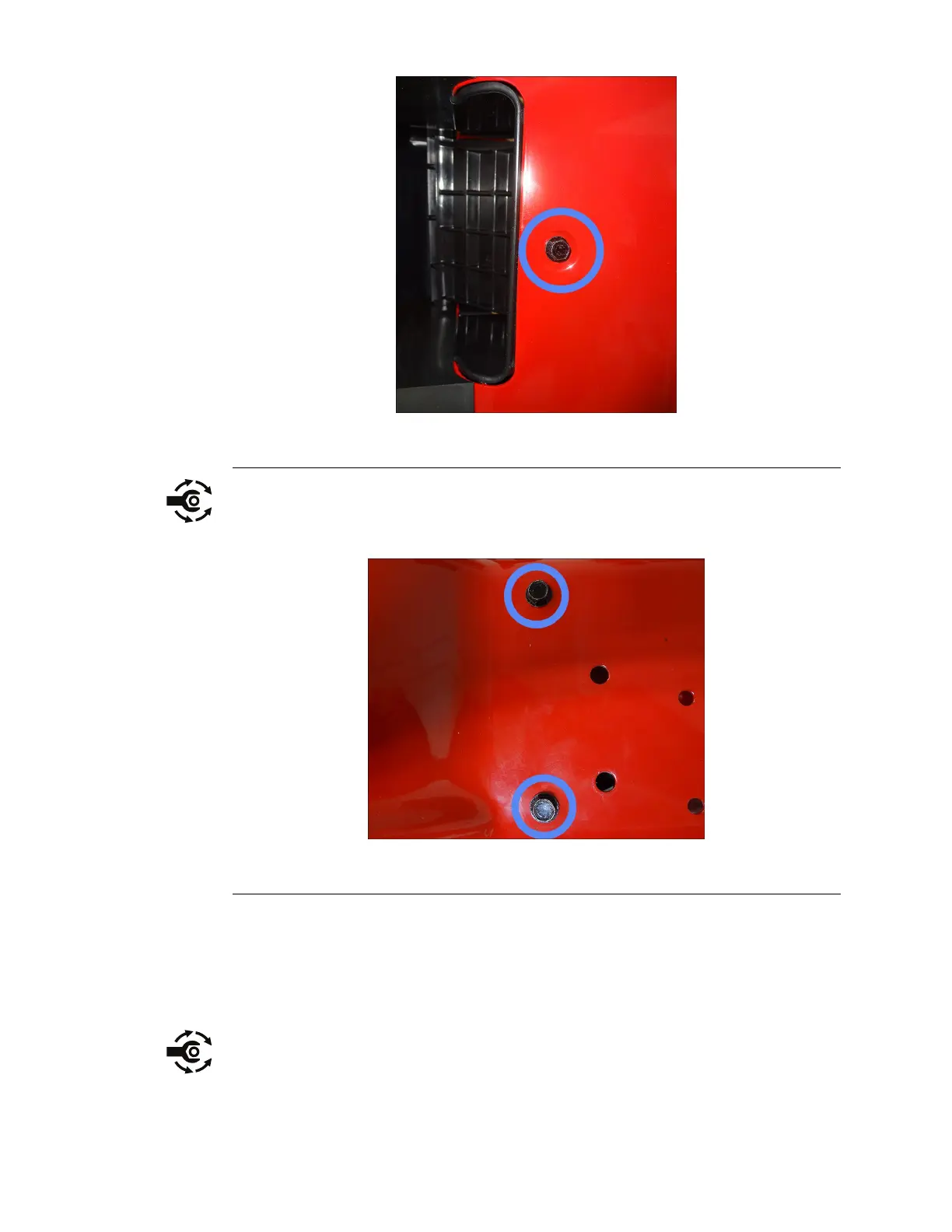

g352576
Figure144
8.Installthe2(1/4–10inch)LHscrewssecuringtherearbafetothedeck.
Torquethescrewsto2.82±0.56N•m(25±5in-lbs).RepeatontheRH
sideoftheunit.
g352575
Figure145
9.Installthebladetotheenginecrank.RefertotheproductOperator’sManual
forthebladeinstallationprocedures.
10.Installthebrakecable.BrakeCableInstallation(page5–6)
11.InstalltheAWDreartractioncable.AWDRearTractionCableInstallation
(page5–18)
12.Modelsequippedwithelectricstartonly,connectthebatterybyinstalling
thepositivecablerst,thenthenegativecabletothebattery.Installthefoam
padandbatterycover.Securethebatterycoverwith2(M4.2x2.0)screws.
Torquethescrewsto2.26±0.34N•m(20±3in-lbs).
