BatteryAssemblyRemoval(ElectricStartModelsOnly)(continued)

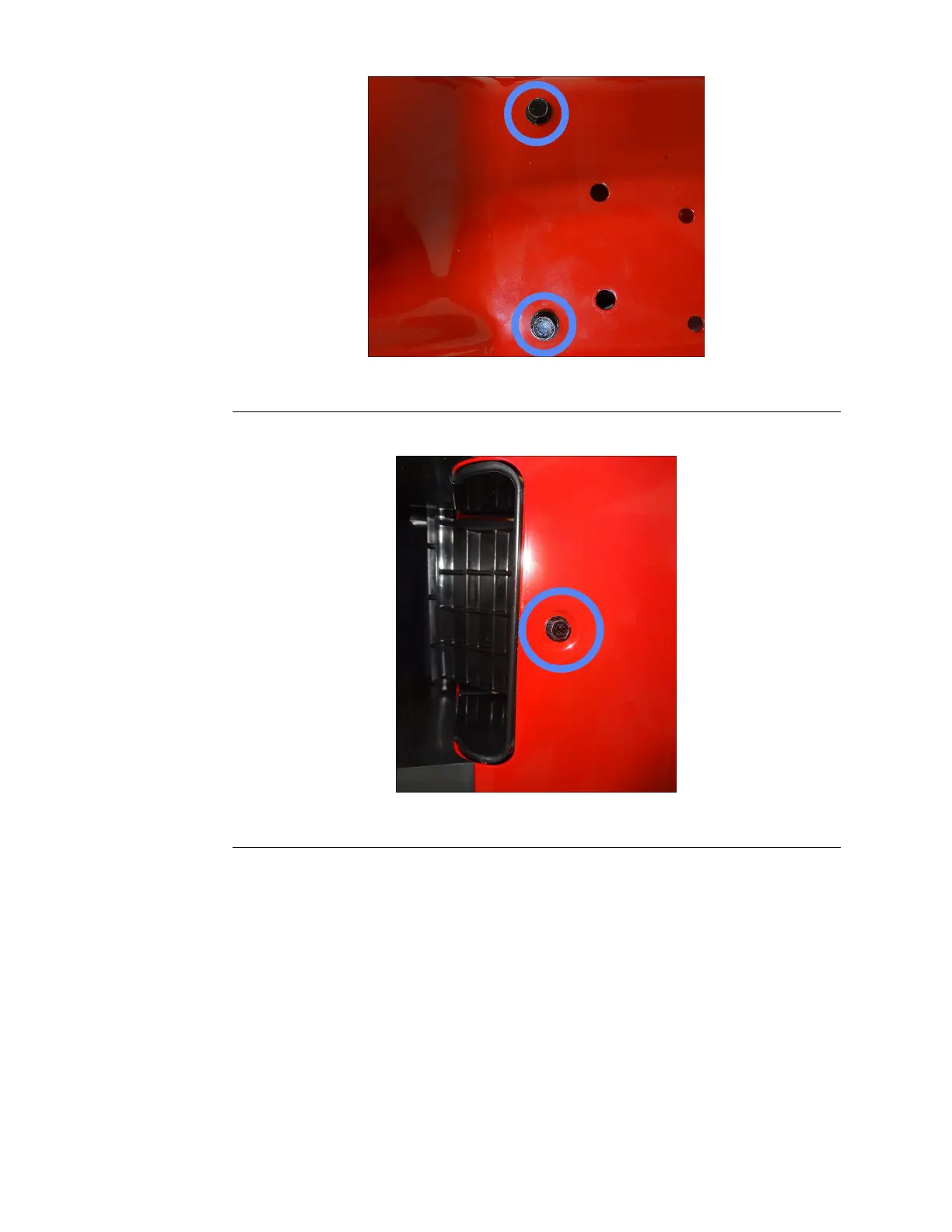

g352575
Figure170
6.Removethe(1/4–10inch)rearscrewsecuringthebafetothedeck.
g352576
Figure171
7.Removethebafefromthedeck.
8.Removethe2(1/4–10)screwssecuringthebeltguideguardtothedeck.
Electrical:ServiceandRepairs
Page8–12
22InchAWD/RWDSteelDeckWalkPower
MowerServiceManual
3445-579RevA
