BatteryAssemblyInstallation(ElectricStartModelsOnly)(continued)

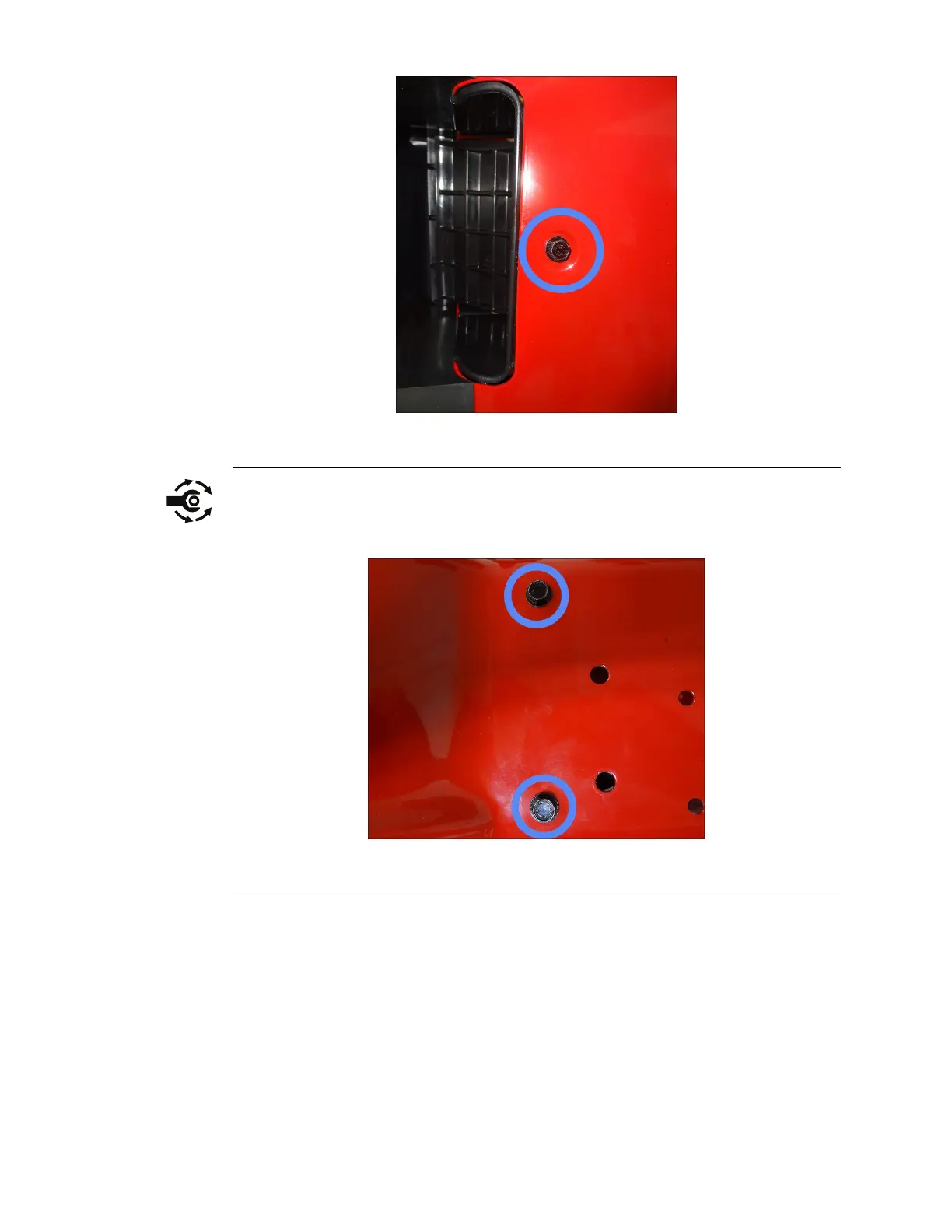

g352576
Figure174
4.Installthe2(1/4–10inch)LHscrewssecuringtherearbafetothedeck.
Torquethescrewsto2.82±0.56N•m(25±5in-lbs).RepeatontheRH
sideoftheunit.
g352575
Figure175
5.Installthebattery.
6.Connectthebatterybyinstallingthepositivecablerst,thenthenegative
cabletothebattery.
