ChuteAssemblyRemoval(continued)
g352576

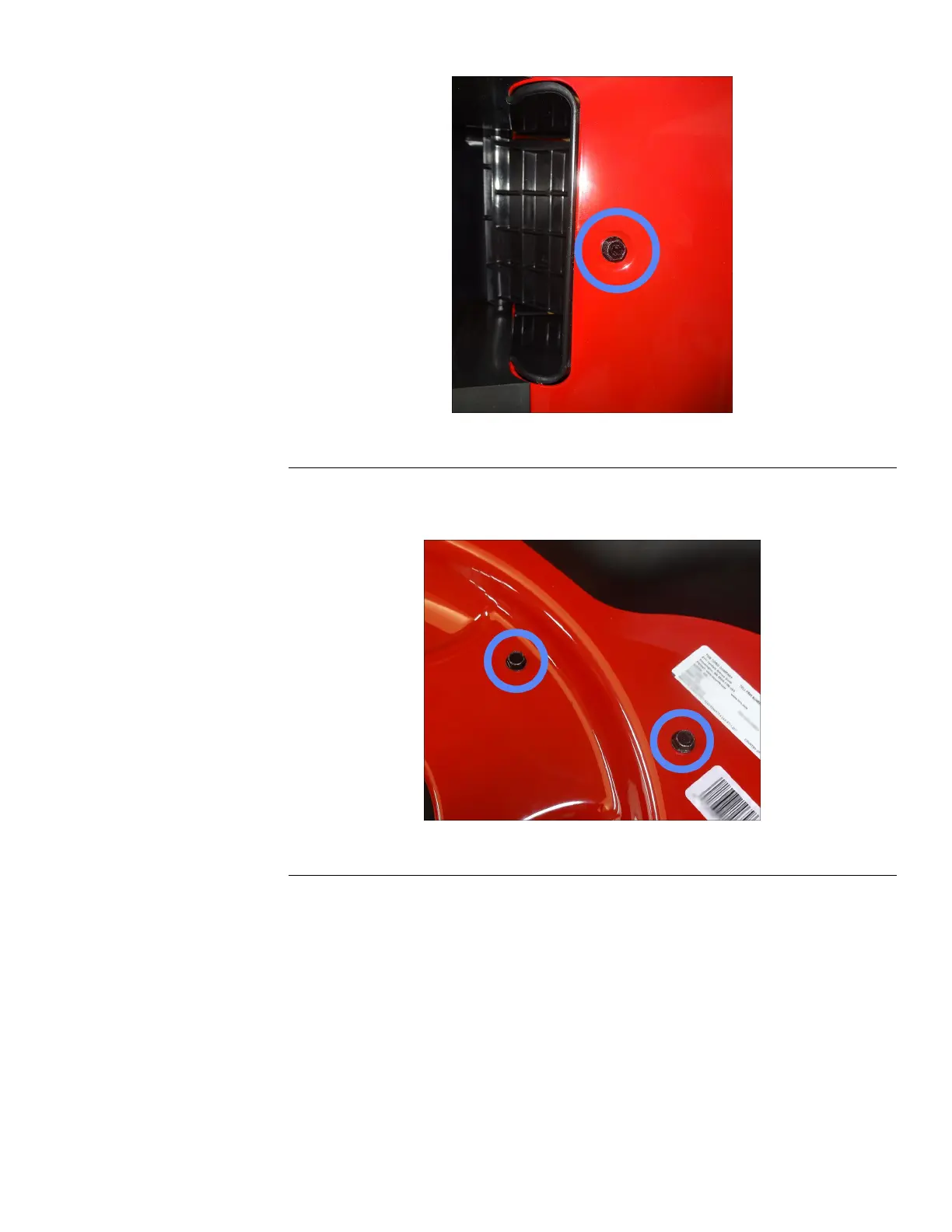

Figure117
9.Removethebafefromthedeck.
10.Removethe2(1/4–10inch)screwssecuringthebeltguideguardtothedeck.
g352577
Figure118
11.Removethebeltguideguardfromthedeck.
12.Removethe4(1/4–10inch)screwssecuringthechutetothedeck.
22InchAWD/RWDSteelDeckWalkPowerMowerService
Manual
Page6–21
Deck:ServiceandRepairs
3445-579RevA
