Auxiliary-HydraulicsLever
•Tooperateahydraulicattachmentintheforward
direction,movetheauxiliary-hydraulicslever
forward(Figure12).
•Tooperateahydraulicattachmentinthereverse
direction,movetheauxiliary-hydraulicslever
rearward(Figure12).
Note:IfyoureleasetheleverwhileintheFORW
ARD
orREVERSEposition,theleverautomaticallyreturnsto
theNEUTRALposition(Figure12).
g029294

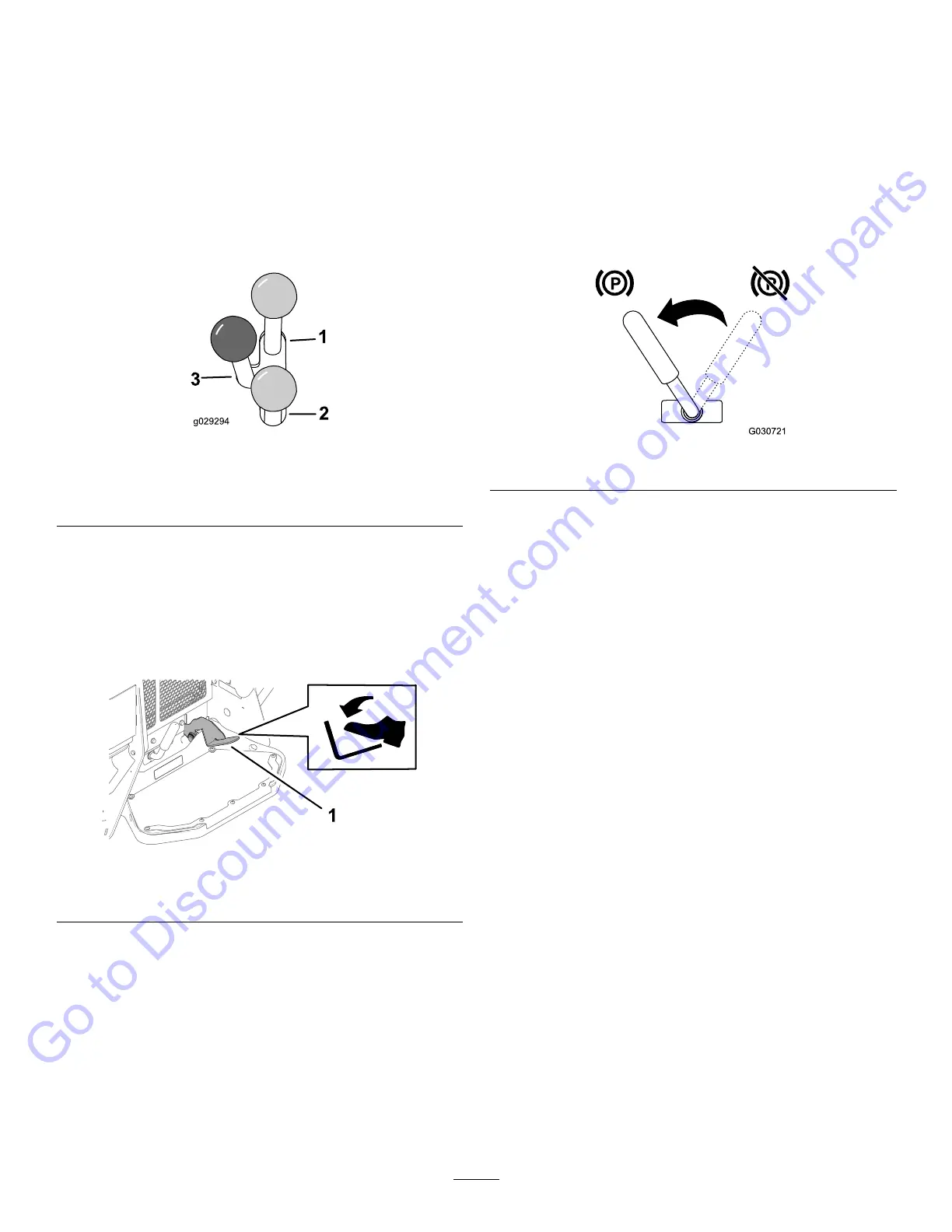

Figure12
1.Forward-owhydraulics
3.Neutral
2.Reverse-owhydraulics
Auxiliary-HydraulicsLockPedal
Useyourrightfoottopresstheauxiliary-hydraulics
lockpedaltocontinuetheforwardorreverseowof
theauxiliaryhydraulicsandfreeyourhandforother
controls.
g366356
Figure13
1.Auxiliary-hydraulicslockpedal
Parking-BrakeLever
•Toengagetheparkingbrake,rotatetheleverto
left(Figure14).
Note:Thetractionunitmayrollslightlybeforethe
brakesengageinthedrivesprocket.
•Toreleasethebrake,rotatethebrakelevertothe
right.
Note:Youmayneedtoadjustthetractioncontrol
toreleasethebrakepinsandrotatethelever.
g030721
Figure14
FuelGauge
Thisgaugemeasurestheamountoffuelinthefuel
tank(s).
