Step
6
Installing the Hairpin Cotter
Pins and Spacers
Parts needed for this step:
2
Hairpin cotter pin
6 Spacers
Procedure
Un used height-of-cut spacers ma y be stored on
posts and retained b y a hair pin cotter .
Note: Mak e sure there is at least one spacer used
on eac h height-of-cut post.
1. R emo v e the existing rear hair pin cotter pins
from the rear height-of-cut posts ( Figure 13 ).
2. Install a spacer onto both rear height-of-cut
posts and install the hair pin cotter pins
( Figure 13 ).

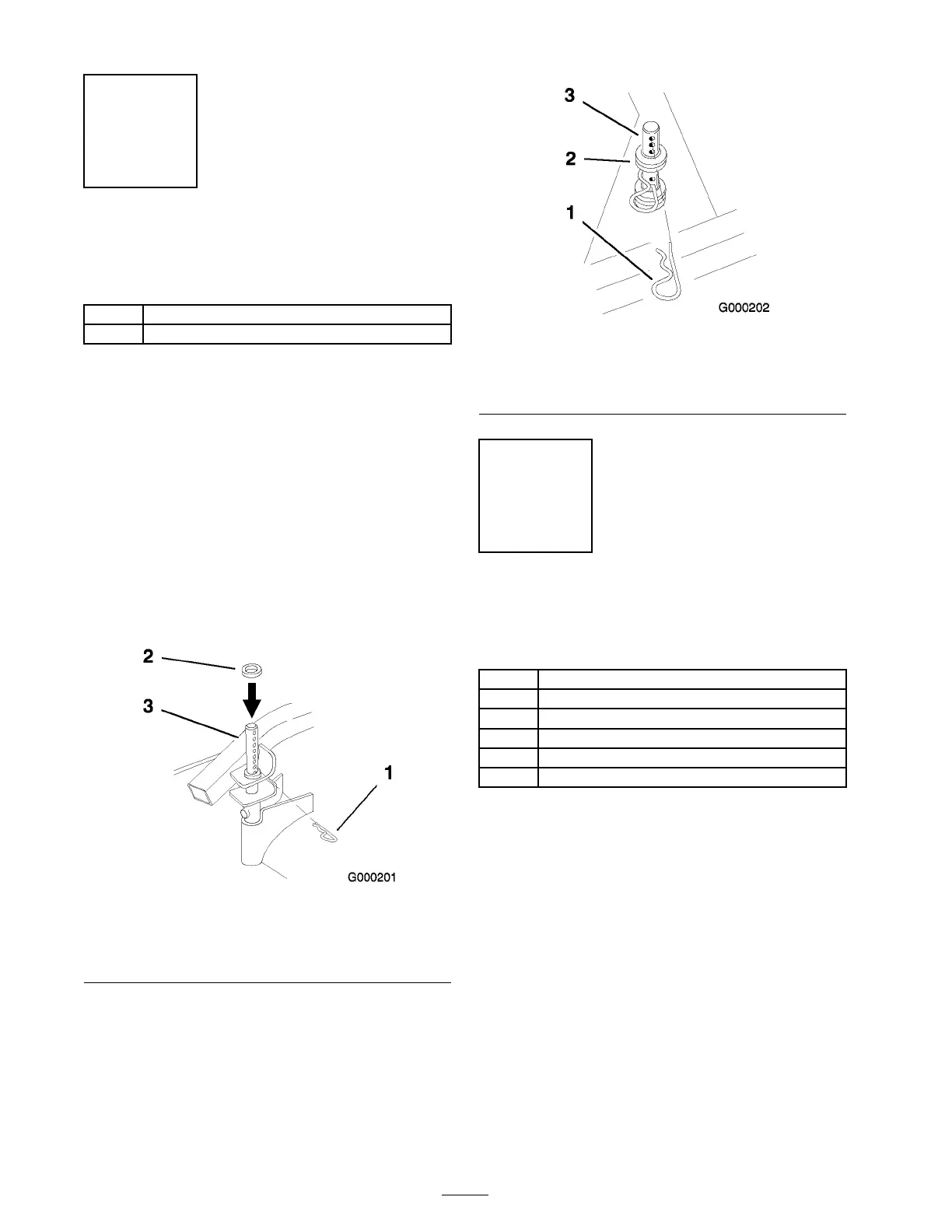

Figure 13
1. Hairpin cotter
3. Height-of-cut post (rear
shown)
2. Spacer
3. Install a spacer onto both front height-of-cut
posts and install the hair pin cotter pins .
4. On the opposite side of the m uffler ,
install un used spacers onto front and rear
height-of-cut pins and inser t the hair pin cotter
pins ( Figure 14 ).
Figure 14
1. Hairpin cotter
3. Height-of-cut post (front
shown)
2. Unused spacers
Step
7
Reading the Manual and
Viewing the Safety Video
Parts needed for this step:
1
Operator’s Manual
1
Engine Operator’s Manual
1
Parts Catalog
1
Safety Video
1
Registration Card
1
Oil drain hose
Procedure
• R ead the Operator’ s Man ual.
• View the safety video .
• Fill out the registration card and mail it in or
register online at www .T oro .com .
• Use the oil drain hose when c hanging the
engine oil.
