Removetheliftcylinderpinstogainaccesstothebolts
ontherighthandside.Torquetheboltsto265foot
pounds.

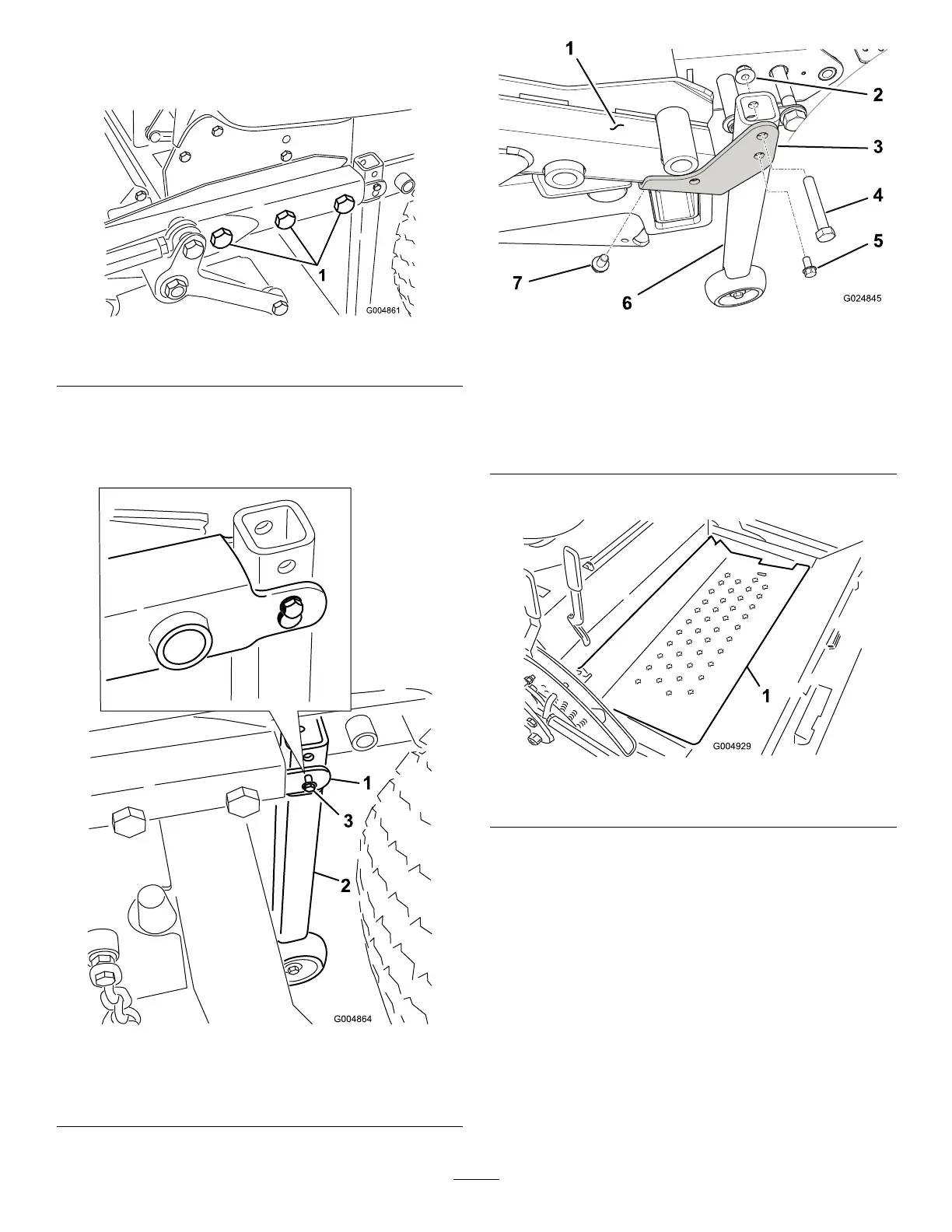

Figure7
1.3mountingbolts(3/4inch),washersandnuts(Leftside)
5.Removethefastenerssecuringtheverticaltubesupport
assembliestotherearofthedeckframe(
Figure8)or
totheconversionbrackets(
Figure9).Also,removethe
conversionbracketsfromthedeckframe,ifapplicable.
Figure8
1.Deckframe3.Clevispin&screwpin
retainer
2.Verticaltubesupport
7
G024845
1
4
5
3
2
6
Figure9
1.Deckframe5.Selftappingscrew
2.Flangenut6.Verticaltubesupport
assembly
3.Conversionbracket(left
sideshown
7.Selftappingscrew
4.Screw
6.Pivotopentheoorplate(Figure10).
Figure10
1.Floorplate
7.Slidethedriveshaftontothegearboxshaft(Figure11).
Installtherollpinandtorquetheboltsto20-25N-m
(175-225in-lb).
