Toro 30381N - Page 18

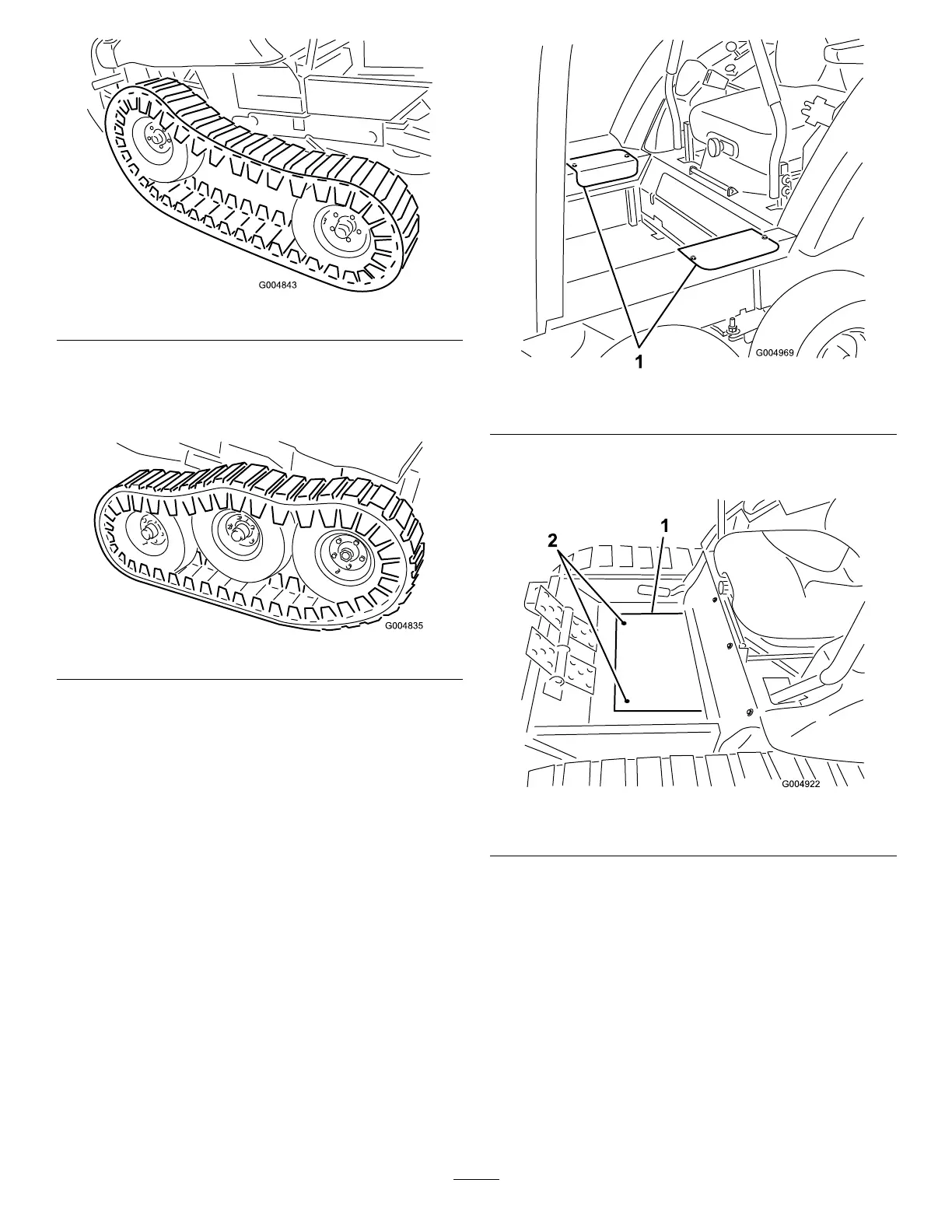

Figure31
22.Adjusttheoorjacktoasuitableheighttoinstallthe
centertire.Liftthecenterofthetrackenoughtoinstall
thecentertire.Torquethelugnutsto88to115N-m
(65to85ft-lb).
Figure32
23.Lowertheoorjackuntilthefrontwheelssupportthe
frame.Installtheatwashers(1/2inch)andlocknuts
onthebogiepivotstud(Figure29)andtorqueto102
N-m(75ft-lb).
Note:Youmayneedtomovetheoorjacktotherear
bumpertoraisetherearofthemachinehighenoughto
installtheatwasherandlocknut.
24.Installthesideaccesscoverswiththescrewspreviously
removed(Figure33).
Figure33
1.Accesscovers
25.Installthewinterframeoorplatecovertotheoor
withthescrewspreviouslyremoved(Figure34).
Figure34
1.Floorplatecover2.Mountingscrews
26.Connectthecabpressureandreturnhosestothequick
couplersontherearframemount(
Figure35).
18
