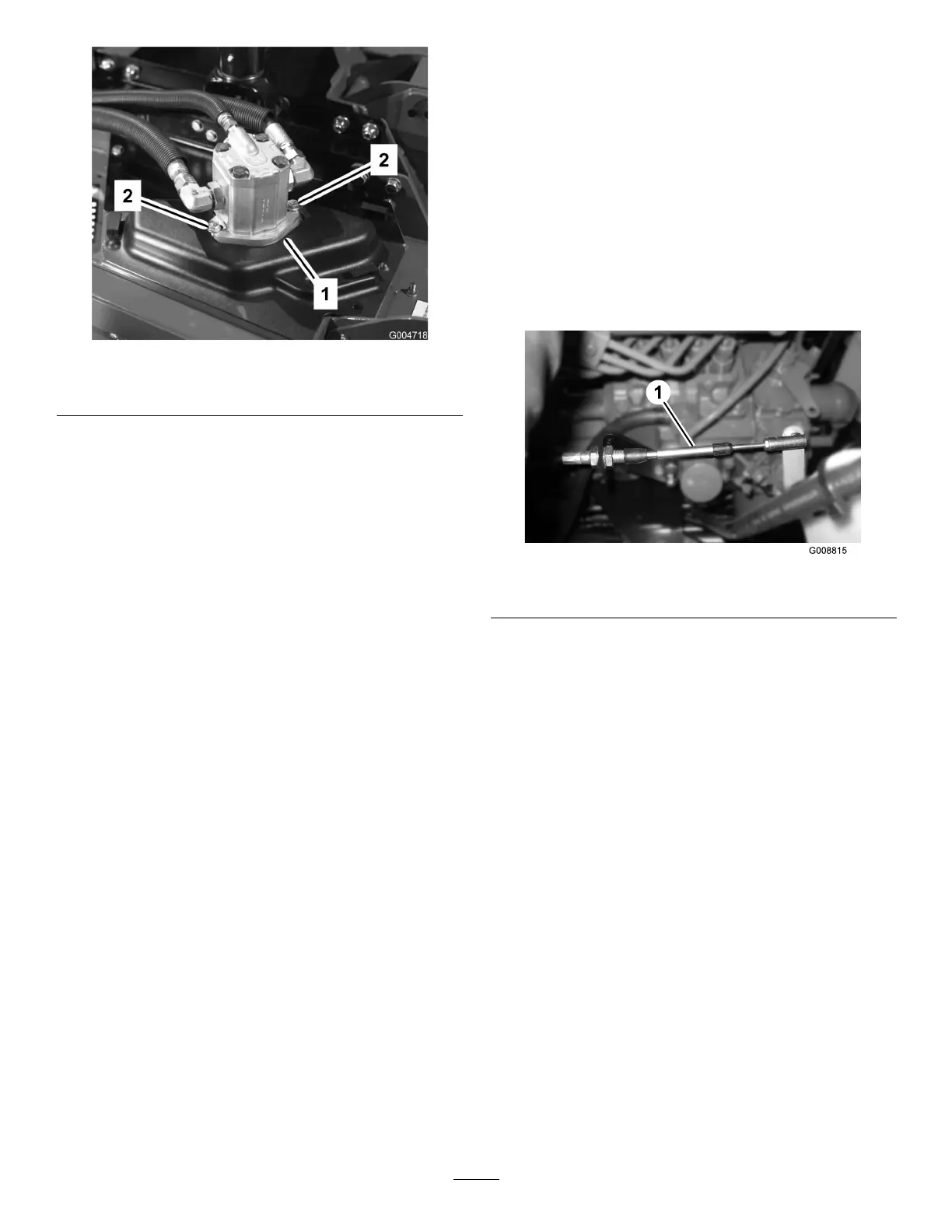

Figure66
1.Hydraulicmotor2.Mountingbolts
5.Removetheoldbeltfromaroundthespindlepulleys
andidlerpulley.
6.Routethenewbeltaroundthespindlepulleysand
idlerpulleyassembly.
7.Positionthehydraulicmotoronthecuttingunitafter
routingthebeltaroundthepulleys.Mountthemotor
tothecuttingunitwiththeboltspreviouslyremoved.
Note:Makesurethebeltispositionedonthespring
sideofthebeltguide(Figure65).
8.Reconnecttheextensionspring(Figure65)tothe
eyeboltandtensionthebeltasfollows:
•Whenproperlytensioned,theextension
spring(hooktohook)measurementshouldbe
approximately3.50±.25inch(inside).
•Oncethecorrectspringtensionisattained,
adjustthestopbolt(carriagebolt)untilthereis
approximately.125+.060/-.000inchclearance
betweentheheadoftheboltandtheidlerarm.
ControlsSystem
Maintenance
AdjustingtheThrottleCable
ServiceInterval:Aftertherst50hours
Every400hours
Adjustthethrottlecable(Figure67)sothatthegovernor
leverontheenginecontactsthelowandhighspeedset
boltsbeforethethrottlelevercontactstheslotinthe
controlpanel.
Figure67
1.Throttlecable
AdjustingtheTractionPedal
Linkage
Thetractionpedalshouldreachfullstrokeatthesame
timeitmakescontactwiththestop.Ifitdoesnot,
performthefollowingprocedure:
1.Parkthemachineonalevelsurface,stoptheengine,
andlowerthecuttingunitstotheoor.Removethe
ignitionkey.
2.Checkthetractionpedalstopadjustment.The
distancefromthetopofthestandtothetopof
thestopmustbe1-1/2inch(38mm)(Figure68).
Loosenthenutsandadjust,asrequired.
