CHASSIS
3-8
Toro 30” Aerator Service Manual
3

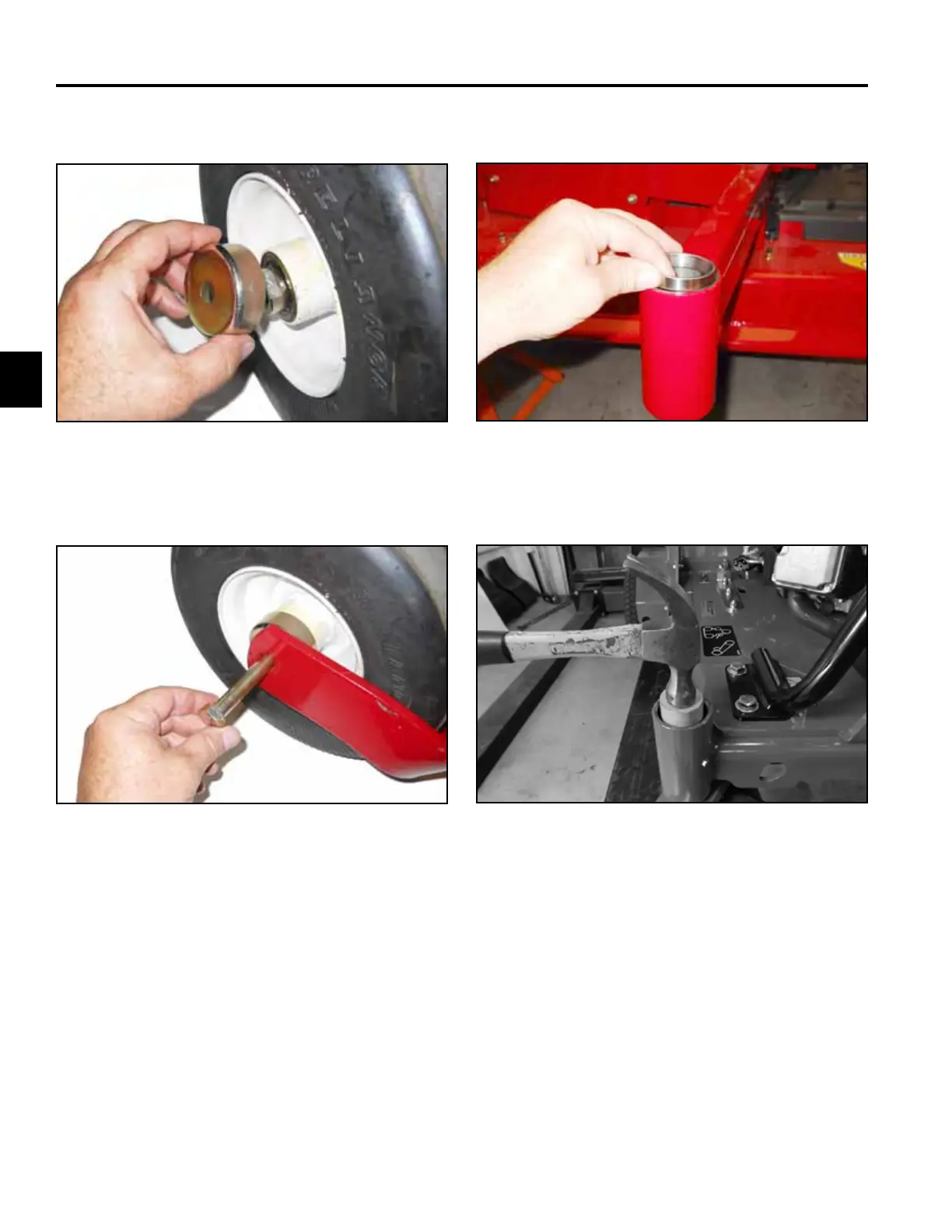

8. Position the seal guard onto both sides of the caster
wheel hub (Fig. 029).
10. Install the upper and lower bearing cups into the
pivot tube (Fig. 031).
Fig. 029 DSCN-0377a
9. Secure the caster wheel assembly to the caster fork
using the axle bolt and nut (Fig. 030).
Fig. 030 DSCN-0376a
Fig. 031 DSCN-0410a
Note: A socket can be used as a driver. Take care
not to scar the race surface (Fig. 032).
Fig. 032 hammer
