HYDRAULICS & ENGINE MOUNTING
4-38
Toro 30” Aerator Service Manual
4

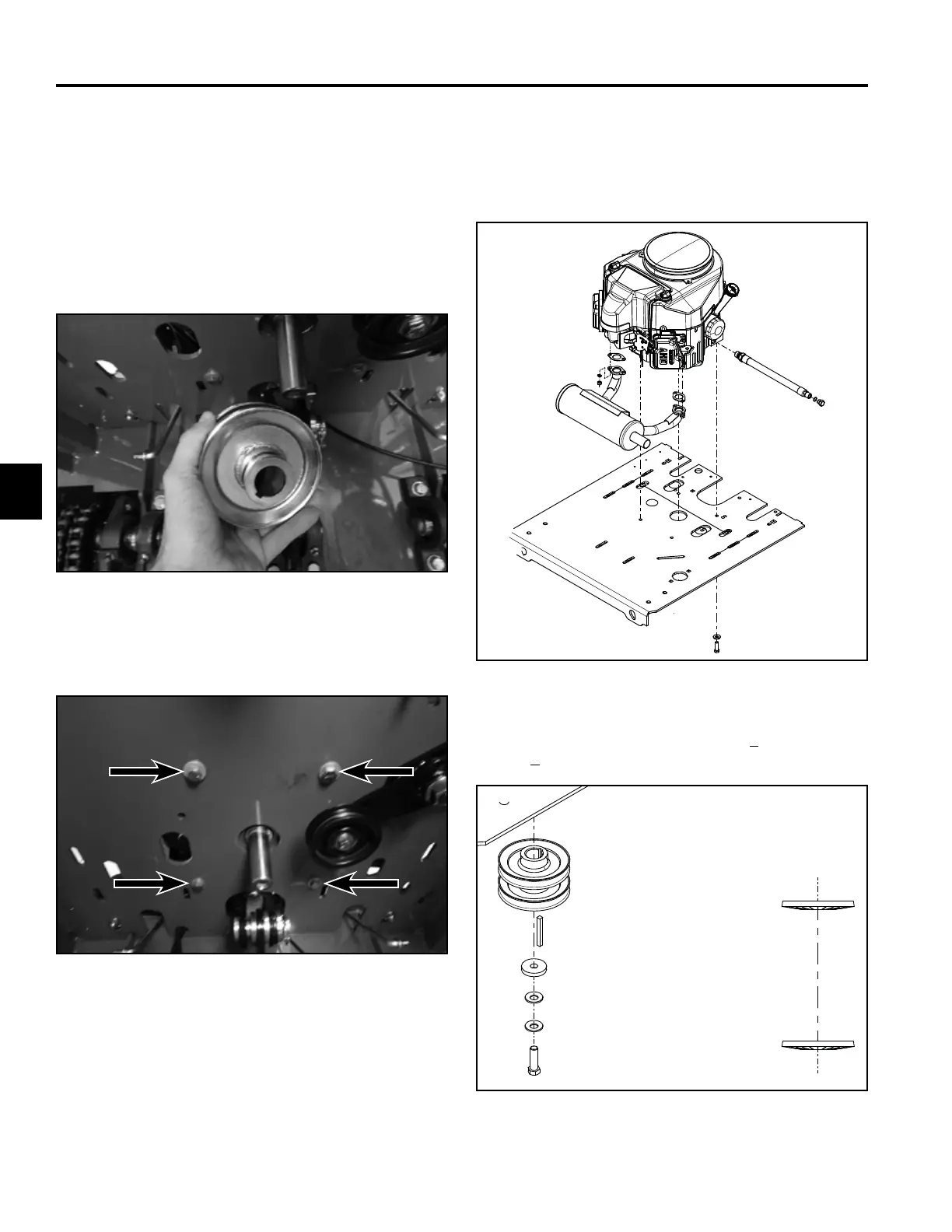

Engine Installation
1. Line up mounting bolt holes on the engine to the
holes on the deck. Install mounting bolts. Torque
bolts to 17-23 ft-lbs. (23-31 Nm) (Fig. 169).
Fig. 169 eng mt
2. Install the PTO pulley. Torque to 56 + 6 ft-lbs.
(76 + 8 Nm) (Fig. 170).
Fig. 170 engine pulley
8. Remove the transaxle as outlined in the “Trans-
mission Removal” section of this chapter.
9. Remove the hydraulic pump belt as outlined in the
“Hydraulic Pump Belt Removal & Installation” section
of this chapter.
10. Remove the bolt securing the PTO pulley and
remove pulley. Make sure to secure the key (Fig.
167).
Fig. 167 PTO pulley
11. Remove the four mounting bolts securing the engine
(Fig. 168).
Fig. 168 eng mt bolts
12. Remove engine.
