Toro 33518 - Page 38

CHASSIS
3-10
Toro 30” Aerator Service Manual
3

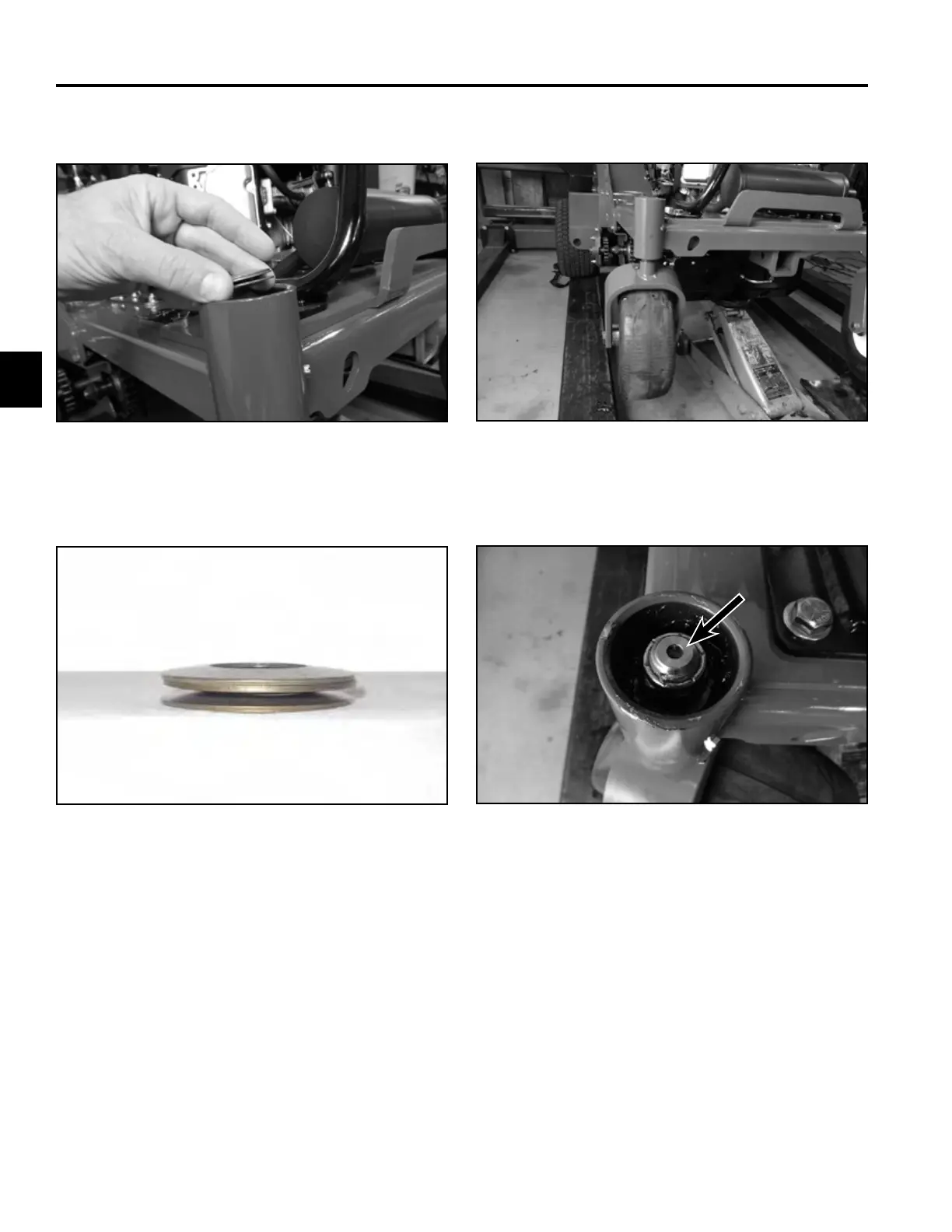

15. Install the 3 Belleville washers into the pivot tube
(Fig. 037).
16. Insert the caster wheel and fork assembly through
the pivot hub (Fig. 039).
Fig. 037 washers
Note: Bottom: Crown Up / Middle: Crown Down /
Top: Crown up (Fig. 038).
Fig. 038 DSCN-0423a
Fig. 039 insert wheel
17. Secure the caster wheel and fork assembly with the
nut (Fig. 040).
Fig. 040 nut
