HYDRAULICS & ENGINE MOUNTING
4-26
Toro 30” Aerator Service Manual
4

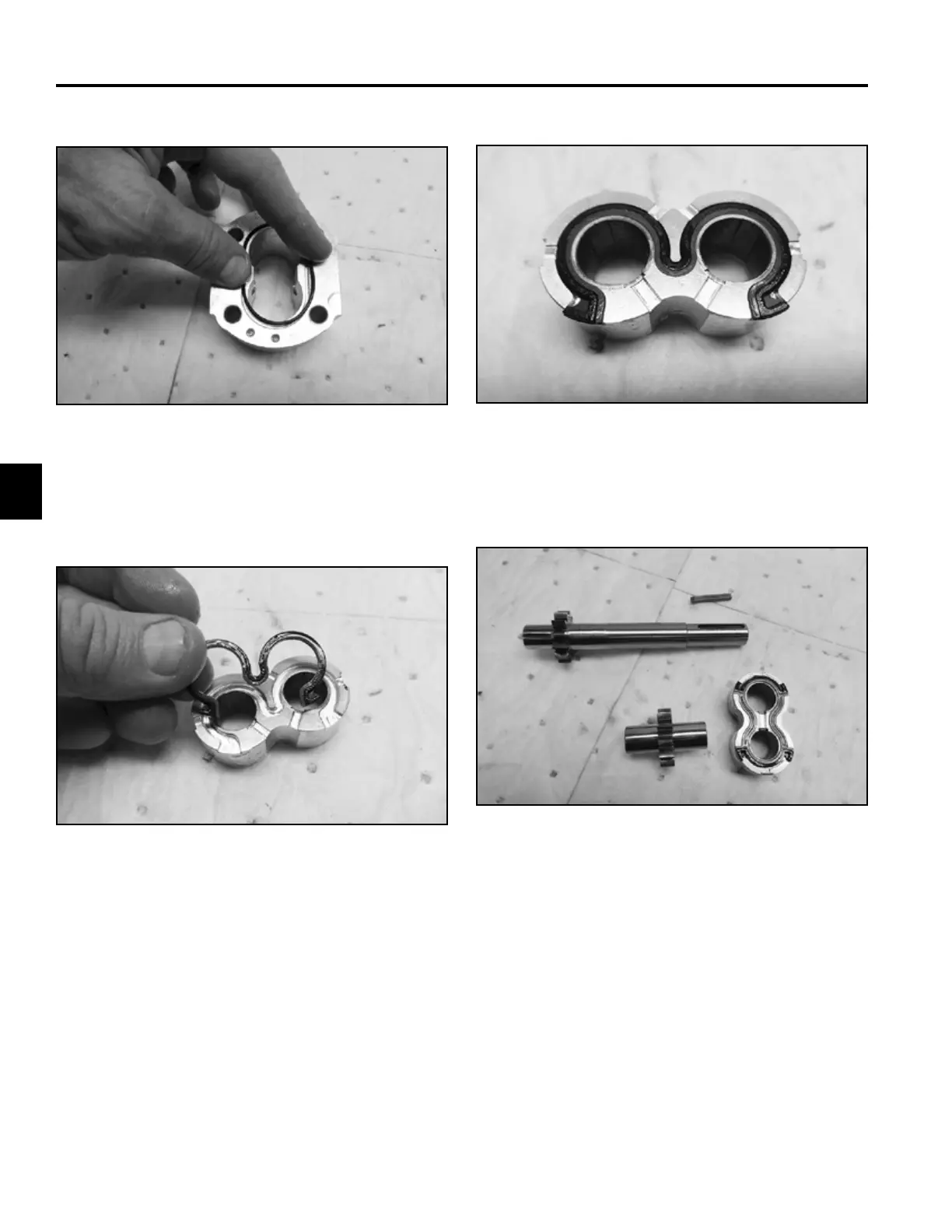

8. Replace with new seal and antiestrusion (Fig. 136).
Fig. 134 0005_a
6. Remove and replace the O-ring on opposite side.
7. Remove the seal and antiestrusion from the thrust
plate assembly (Fig. 135).
Fig. 135 0006_a
Fig. 136 0007_a
9. Remove the key from the drive shaft and remove
drive shaft and thrust plate from the front cover (Fig.
137).
Fig. 137 0008_a
5. Replace the O-ring with new (Fig. 134).
