KawasakiEngineReplacement

KawasakiEngineRemoval

1.ParkthemachineonalevelsurfaceanddisengagethePTO.Stopthe

engine,waitforallmovingpartstostopandremovethekey.Engagethe

parkingbrake.

2.Disconnectthebatterybyremovingthenegativecablerst,thenthepositive

cablefromthebattery.

3.Unhooktherubberstrapsecuringthebatterytothebatterytray.Liftthe

batteryawayfromthemachine.

4.Closethefuelsupplyvalve.

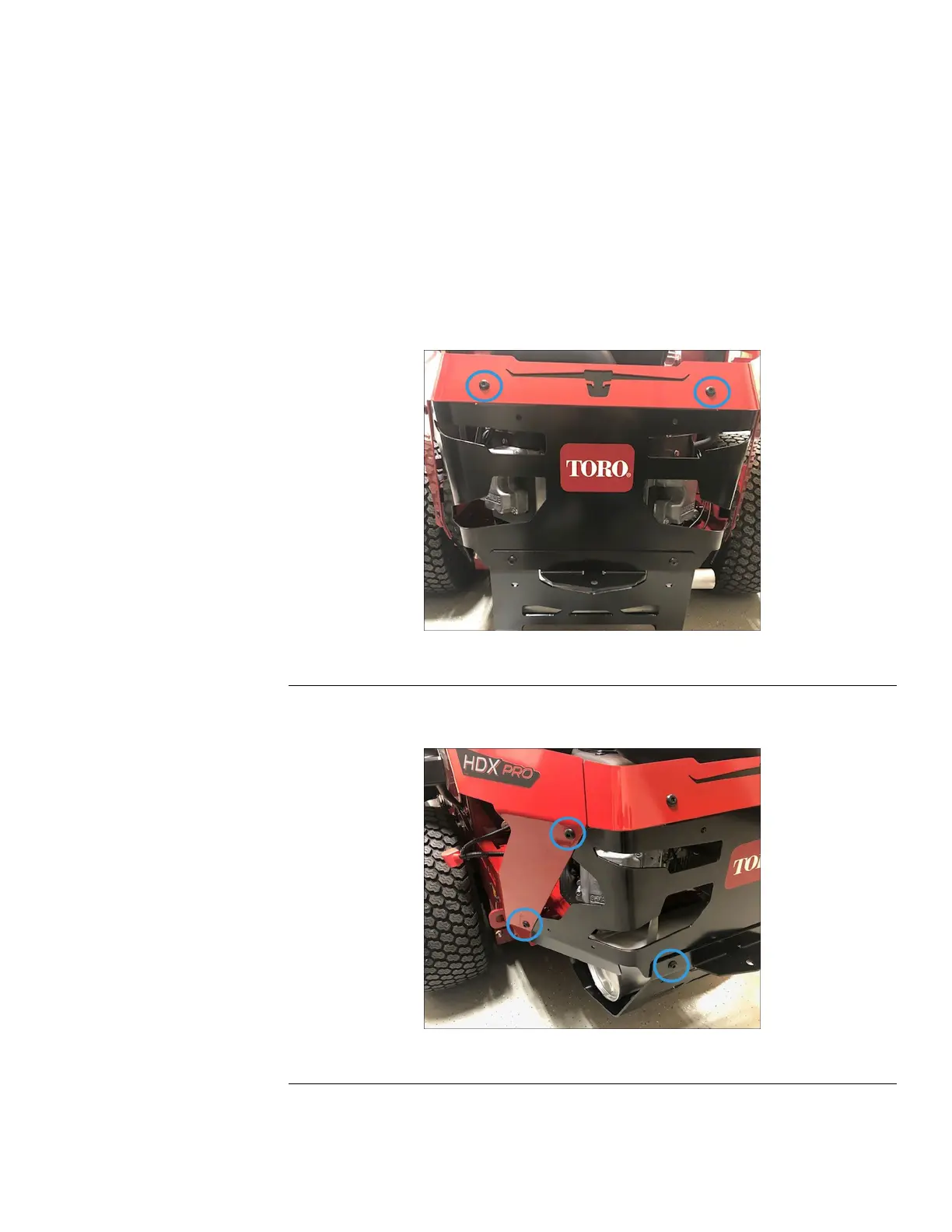

5.Removethe2(5/16inch)torxscrewssecuringthetoprearguardtotherear

guardasm.Removethetoprearguard.

g346044

Figure5

6.Removethe6(5/16inch)torxscrewsandlocknutssecuringtherearguard

tothechassis.Removetherearguardasm.

g346045

Figure6

7.Disconnectthethrottlecable.ThrottleCableAssemblyReplacement(page

5–15)

4000SeriesZMASTER®ServiceManual

Page4–5

Engine:ServiceandRepairs

3442-427RevA
