KawasakiEngineRemoval(continued)

8.Disconnectthechokecable.ChokeCableAssemblyReplacement(page

5–16)

9.Removethedeckbelt.DeckBeltReplacement(page6–4)

10.Removethehydrostaticdrivebeltfromtheenginepulley.HydrostaticDrive

BeltReplacement(page7–5)

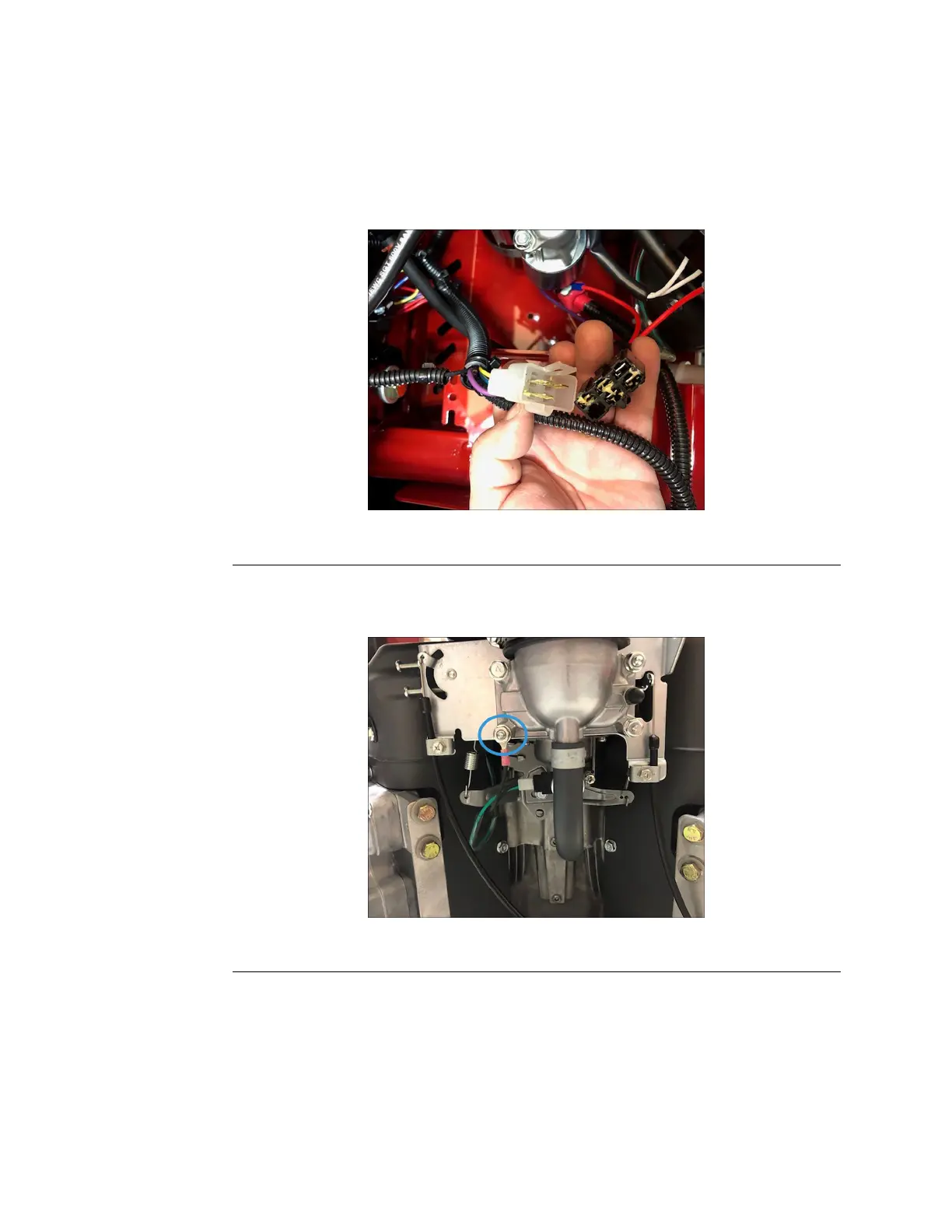

11.Disconnectthechassiswireharnessfromthemainengineharness.

g346046

Figure7

12.Disconnectthered(B+)wirefromthestarter.

13.Disconnecttheblackenginegroundwire.

g346104

Figure8

14.Disconnectthefuelsupplylineatthefuellter.

Engine:ServiceandRepairs

Page4–6

4000SeriesZMASTER®ServiceManual

3442-427RevA
