Toro 74024 Service Manual

HydrostaticDriveBeltReplacement
HydrostaticDriveBeltRemoval
1.ParkthemachineonalevelsurfaceanddisengagethePTO.Stopthe
engine,waitforallmovingpartstostopandremovethekey.Engagethe
parkingbrake.
2.Disconnectthebatterybyremovingthenegativecablerst,thenthepositive
cablefromthebattery.
3.Removethedeckbelt.DeckBeltReplacement(page6–4)

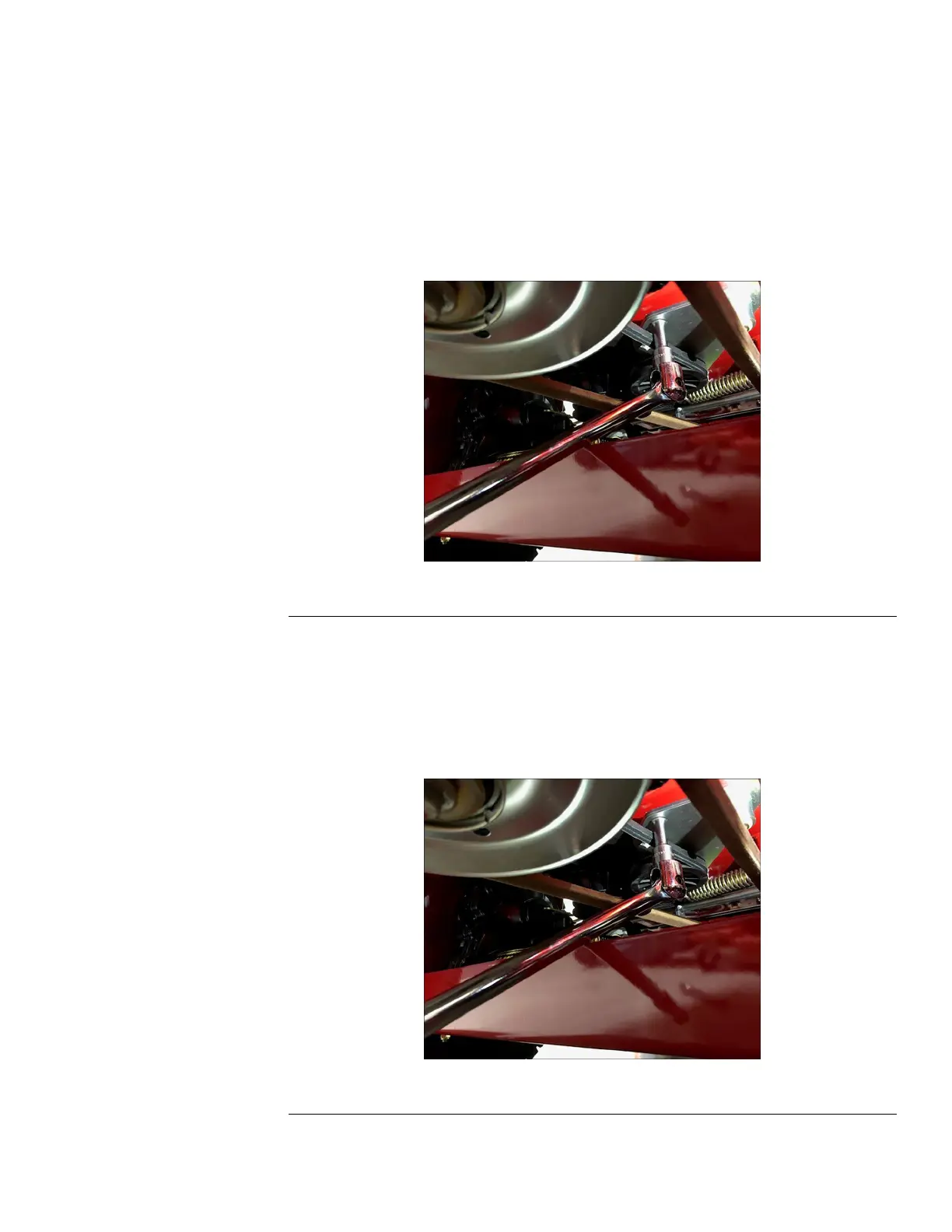

4.Usinga½inchbreakerbar,insertintothemostaccessiblesquareholeof
theidlerarm.
g346265
Figure75
5.Turnthebreakerbartoreleasebelttension.Removethebeltfromthe
idlerpulley.
HydrostaticDriveBeltInstallation
1.Installthebelttotheidlerpulley.Turnthebreakerbartoaddbelttension.
2.Usinga½inchbreakerbar,insertintothemostaccessiblesquareholeof
theidlerarm.
g346265
Figure76
3.Installthedeckbelt.MowerDeckReplacement(page6–4)
4000SeriesZMASTER®ServiceManual
Page7–5
DriveSystem:ServiceandRepairs
3442-427RevA
