Z Master 7500-D Series Service Manual
March 2018 - Digital Edition
Table of Contents
DECK
Deck
Spindle Assembly Rebuild
Disassembly
1. Park the machine on a level surface, disengage the PTO and set the parking brake. Stop the engine, wait for all
moving parts to stop and remove the key.
2. Remove the belt, see “Belt Removal,” chapter 6, page 6-20.
3. Remove the blade.
4. Remove the fasteners securing the pulley to the spindle hub and discard.
5. Remove belt guide bracket, if applicable.
A
B
C
D
E
F
D
G

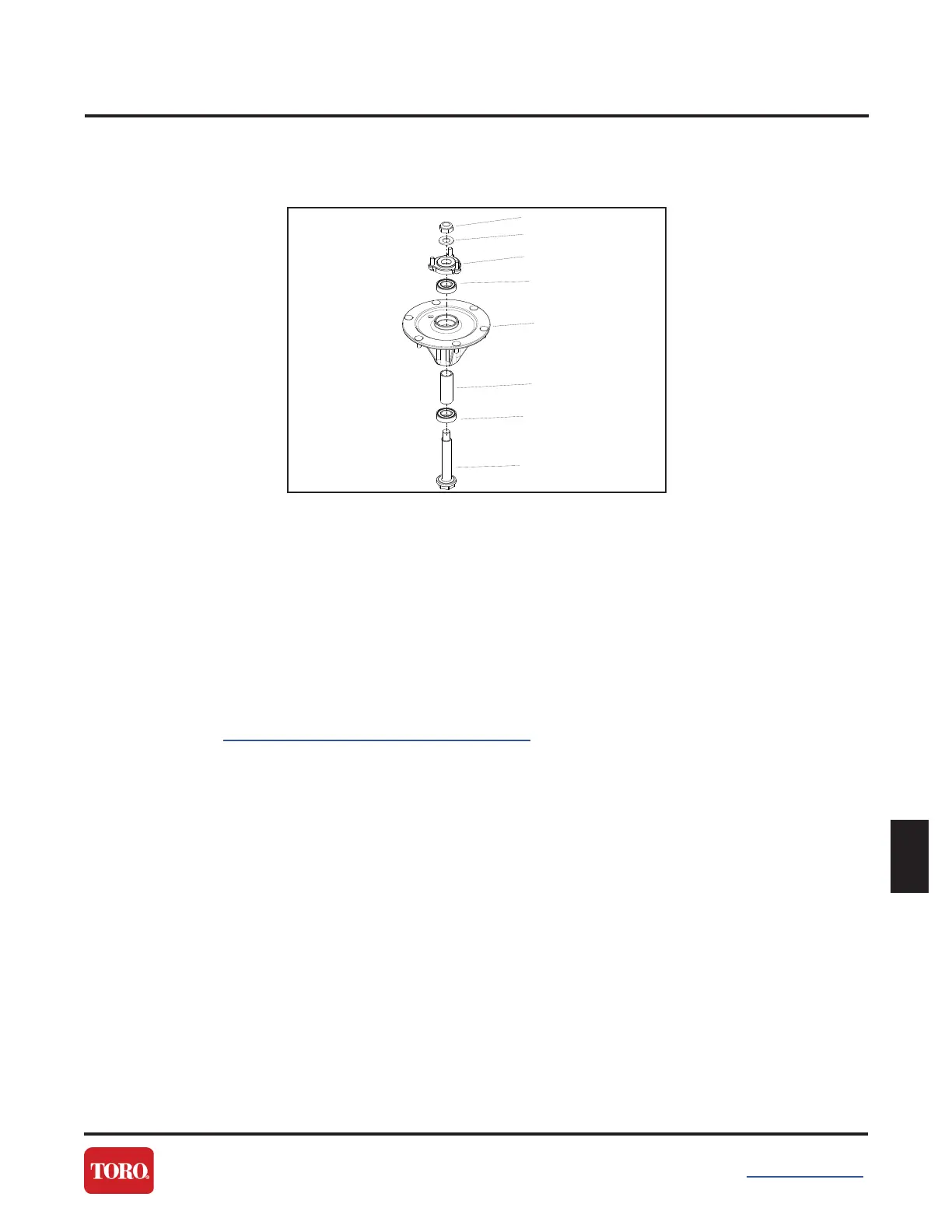

Figure 28
A. NI Lock Nut
B. Washer
C. Spindle Hub Asm. with Studs
D. Ball Bearing
E. Spindle Hub Asm. with Studs
F. Bearing Spacer
G. Bearing Spindle Ball Shaft
