5-19
Z Master 7500-D Series Service Manual
March 2018 - Digital Edition
Table of Contents
CHASSIS
Chassis
Right Tank Cover
Removal
1. Park the machine on a level surface, disengage the PTO, and engage the parking brake. Stop the engine, wait
for all moving parts to stop and remove the key.
2. Remove the three screws securing the control panel to the machine.
3. Disconnect the negative terminal rst, then the positive terminal on the battery.

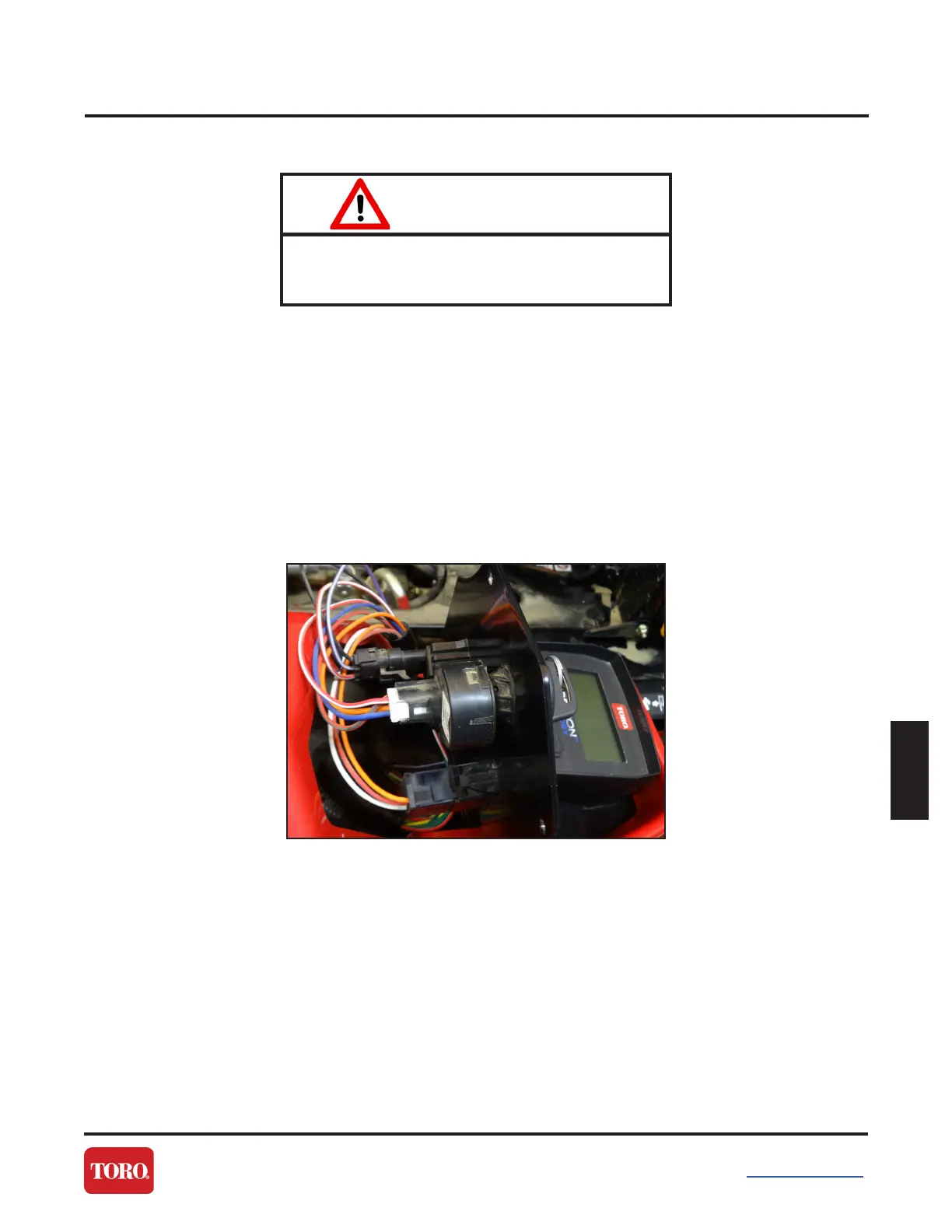

4. Disconnect all electrical connections to the control panel. Remove the control panel (Figure 13).
5. Raise the hood to install the right tank cover.
6. Remove the two washers and screws located on the inside of the right tank cover.
7. Remove the four screws located on the outside of the console. Remove the right tank cover.
Figure 13
WARNING
Never touch electrical wires or components while the
engine is running. They can be sources of electrical
shocks.
