Z Master 7500-D Series Service Manual
March 2018 - Digital Edition
Table of Contents
CHASSIS
Roll Over Protection System (ROPS)
Removal
1. Park the machine on a level surface, disengage the PTO, and engage the parking brake. Stop the engine, wait
for all moving parts to stop and remove the key.
2. Slide the operator’s seat all the forward and ip upwards.
3. Remove the hood from the machine, see “Engine Cover Removal,” chapter 5, page 5-40.
4. Cut the three zip ties securing the wire harness retainer to the heat deector panel (Figure 27).
5. Using a at head screw driver remove the three tree clips securing the heat deector panel to the machine.
Remove the heat deector panel.
NOTE: Tree clips are intended for one time use.

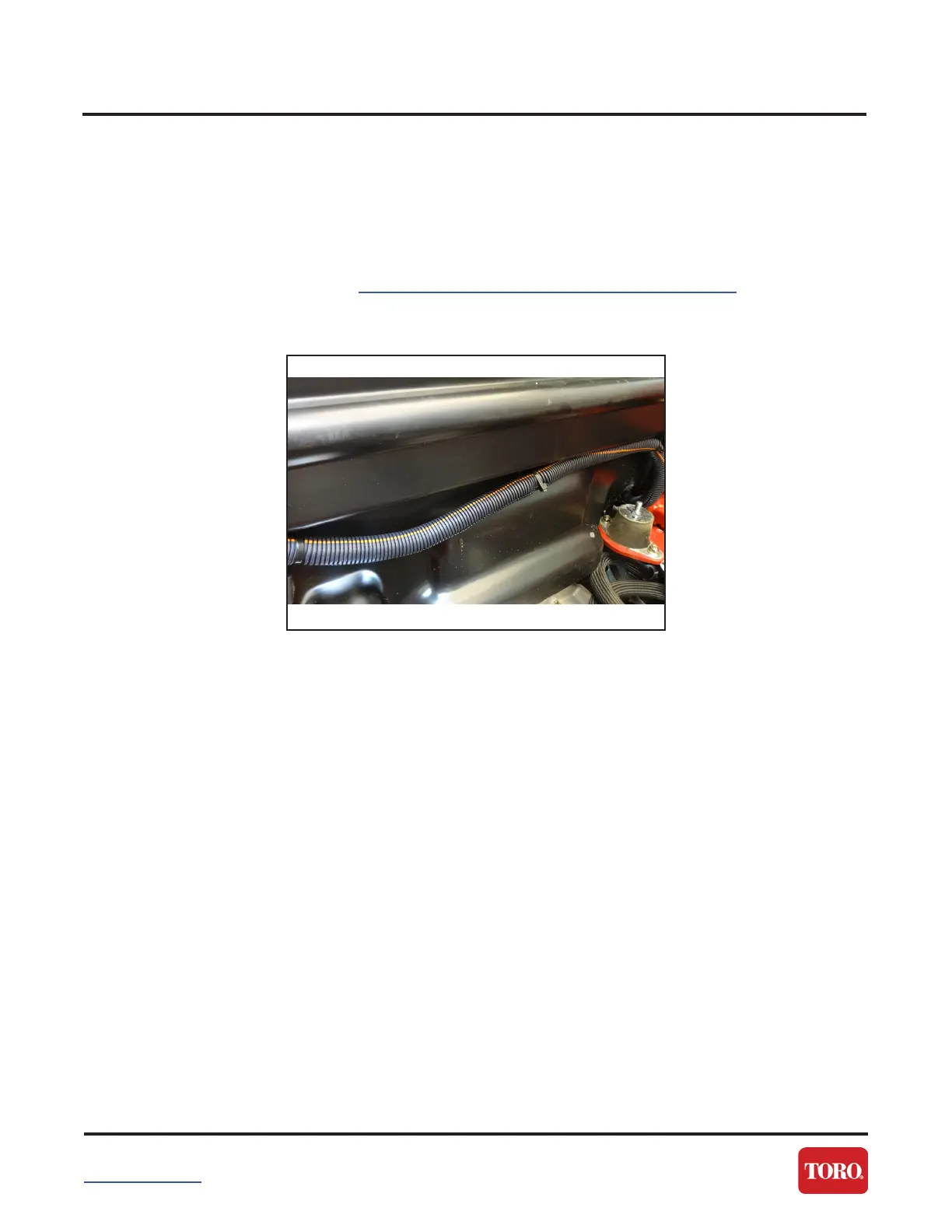

Figure 27
