Toro 74096 - Parking Brake Adjustment Procedure; Link Assembly and Spring Adjustment

g228555

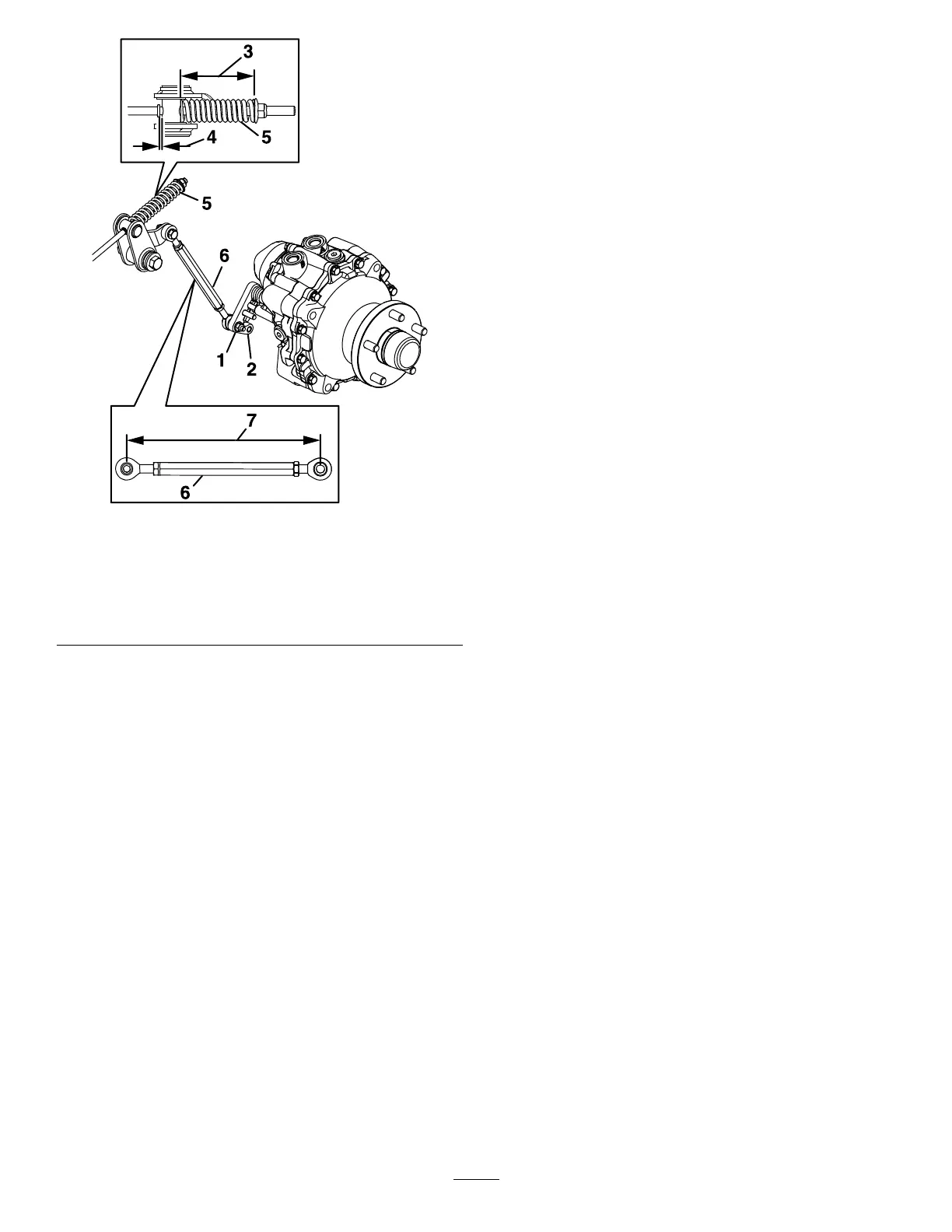

Figure58
1.Frontlocation
5.Spring
2.Rearlocation6.Linkassembly
3.95mm(3-3/4inches)
7.Length
4.Gap
8.Measurethelengthofthespring(Figure58).
Note:Themeasurementshouldbe95mm
(3-3/4inches).
9.Whenyouachievethecorrectspringlength,
checktoseeifthereisavisiblegapbetweenthe
trunionandtheshoulder.
10.Disengagetheparkingbrakeandturnthewheel
hubbyhandinbothdirections.
Note:Thewheelhubshouldmovefreely.
11.Ifagapisneededorthewheelhubdoesmove
freely,dothefollowing:
A.Disengagetheparkingbrake.
B.Disconnectandne-tunetherearlinkage
assembly.
•Shortenthelinktocreateagap.
•Lengthenthelinktoallowwheelhub
movement.
C.Connecttherearlinkageassembly.
12.Engagetheparkingbrakeandcheckthegap.
13.Repeatsteps10through12untilavisiblegap
isachievedandthewheelhubrotatesfreely.
Repeatthisprocedurefortheotherside.
Note:Thebrakeshouldfullydisengagewhen
thebrakeisinthereleasedposition.
14.Rotatethedrivewheelreleasehandletothe
operatingposition;refertoReleasingtheDrive
WheelReleaseValves(page44).
15.Installthereartiresandtorquethelugnutsto
115to142N∙m(85to105ft-lb).
16.Removethejackstands.
50
